Multi-WAN & 5G Backup Practical Guide for Small Business Networks

Introduction: The Cost of Network Downtime

Imagine this: your retail store is in the middle of a holiday promotion. Your POS system, inventory management, and online orders all rely on the internet. Suddenly, your primary ISP goes down for 10 minutes. Every transaction halts, and your business loses hundreds or even thousands of dollars.

Studies show that 50% of small businesses lose more than 10% of daily revenue during unexpected network downtime. This is why a network that never goes down is not a luxury—it’s a necessity.

The Risks of Single-Line Networks

Many businesses rely on a single internet connection:

1. ISP Outages: Provider downtime, router failure, or fiber line issues.

2. Physical Cable Damage: Accidental excavation or construction cuts.

3. Bandwidth Congestion: High-traffic periods affecting critical applications like cloud ERP or video conferencing.

4. Single Point of Failure: One failure can bring the entire business network to a halt.

Bottom line: A single-line setup is risky for businesses that cannot afford interruptions.

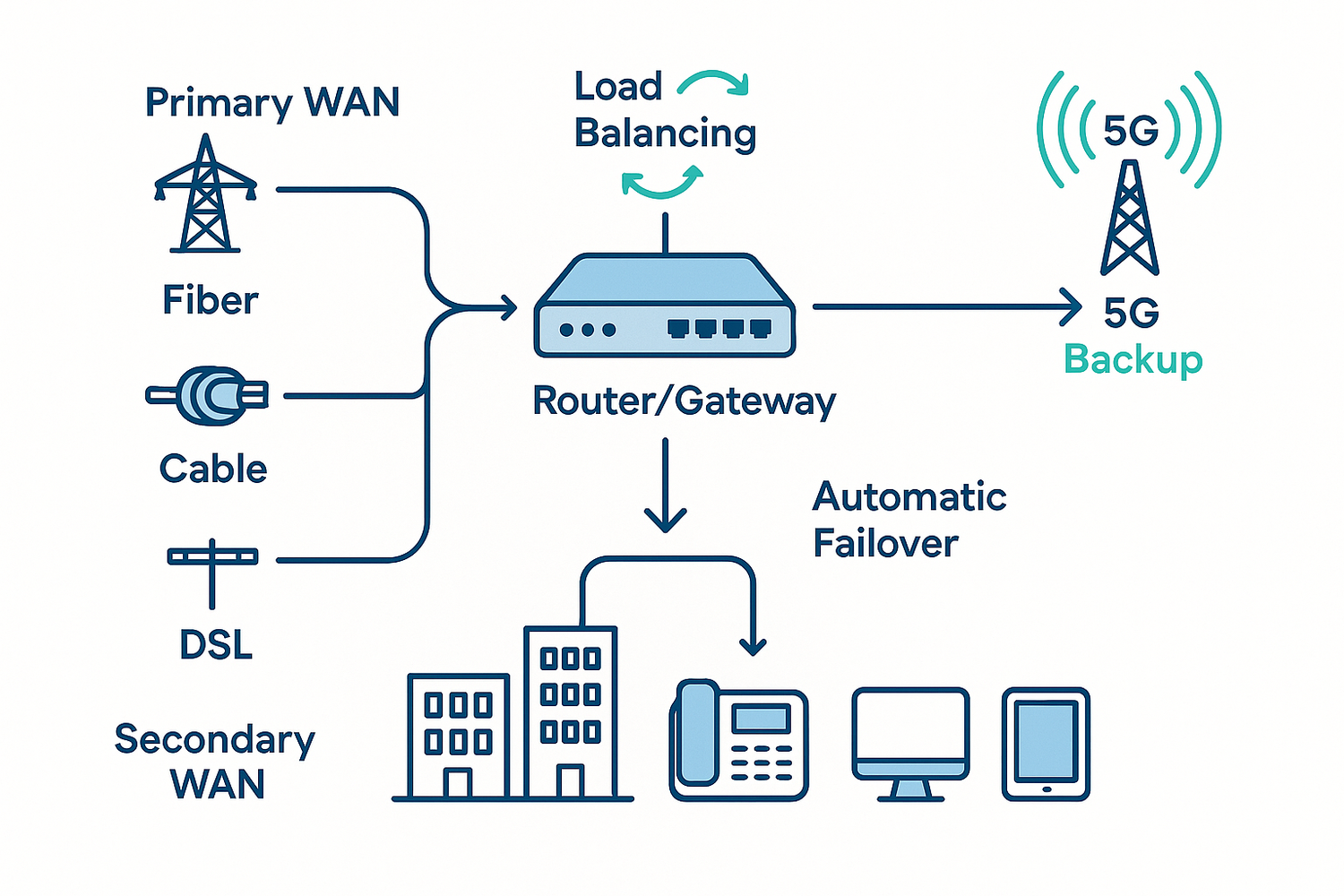

Solution Overview: Redundant Internet Links

Redundant internet connections ensure your network stays up even when a primary line fails. There are two common approaches:

1. Multi-WAN Load Balancing:

   • Connect a primary and secondary broadband line.

   • Distribute traffic intelligently to optimize bandwidth.

   • Automatic failover switches to backup when a link fails.

2. 5G Cellular Backup:

   • Insert a 5G SIM card to provide cellular internet.

   • Automatically takes over if your WAN line goes down.

   • Perfect for temporary sites or businesses needing instant backup.

Step-by-Step Configuration Guide

1. Multi-WAN Load Balancing Setup

Steps:

1. Connect the second broadband line to the WAN2 port on your router.

2. Log into the management interface of your router (e.g., BE19000 series).

3. Enable load balancing:

   • Navigate to Network Settings > WAN Configuration > Load Balancing.

   • Choose “Smart Load Balancing” and assign WAN1 as primary, WAN2 as backup.

4. Test the configuration:

   • Use a speed or bandwidth tool to verify traffic distribution between WAN1 and WAN2.

Pro Tips:

• Assign weights to WAN links to prioritize critical business traffic.

• Check logs for failover and traffic distribution history.

2. 5G Failover Configuration

Steps:

1. Insert the SIM card into the router’s SIM slot.

2. Access the management interface and navigate to Cellular Backup.

3. Enable failover mode:

   • Set the router to switch to 5G automatically if WAN connections fail.

4. Test the failover:

   • Disconnect WAN1 and WAN2.

   • The router switches to 5G in under 3 seconds.

   • Critical applications like cloud ERP, POS, and video calls remain uninterrupted.

Pro Tips:

• Enable continuous WAN monitoring to automatically switch back to the primary line once it’s back online.

• This setup is especially useful for temporary offices or construction sites.

Scenario-Based Recommendations

Call to Action

For businesses ready to implement multi-WAN and 5G backup, we recommend checking routers that support these features, like the BE19000 series:

• Multiple WAN ports + 5G SIM slot

• Support for load balancing and failover

• Enterprise-grade management interface with logs, QoS, and traffic monitoring

With a properly configured BE19000 router, you can ensure a business network that never goes down, keeping your operations running and protecting revenue.
