Z8102AX-M2-H: 5G + WiFi 6 Outdoor CPE Built for the Real World
Outdoor networks face challenges that indoor equipment simply can't handle — extreme weather, remote locations, and thousands of simultaneous devices.
The ZBT Z8102AX-M2-H is engineered for exactly these conditions. It combines 5G cellular backhaul, WiFi 6 distribution, and a fully sealed IP67 metal enclosure — all powered by a single PoE cable.
Z8102AX-M2-H — Ruggedized 5G + WiFi 6 Outdoor CPE
⚡ Core Specs
Processor
MT7981B ARM Cortex-A53 Dual-Core @ 1.3 GHz
WiFi Standard
WiFi 6 (802.11ax) — 2.4 GHz + 5.8 GHz
Up to 3000 Mbps aggregate throughput
Memory
256 MB DDR3 RAM + 128 MB SPI NAND Flash
Cellular
5G/4G via 2× M.2/Mini-PCIe slots
External Nano SIM + Built-in eSIM
Ports
1× Gigabit LAN (IEEE 802.3ab)
Power
PoE-PD input (IEEE 802.3af/at)
Protection
IP67 fully sealed metal enclosure
Software
OpenWRT compatible | Cloud management | VPN
🌐 Why 5G + WiFi 6?
Most outdoor APs depend on wired backhaul — expensive and impossible in remote areas.
The Z8102AX-M2-H integrates 5G directly into the unit, eliminating fiber runs and trenching costs. Add WiFi 6's OFDMA and MU-MIMO, and you get:
- Higher capacity for dense device environments
- Lower latency for IoT and real-time applications
- Better range with reduced RF interference
Internal hardware layout — MT7981B CPU + MT7976CN WiFi 6 chip + dual M.2 slots
🛡️ IP67 — Weatherproof by Design
The fully sealed metal shell is rated IP67:
- Dust-tight — zero particulate ingress
- Waterproof — rated for 1m submersion / 30 min
- Passive cooling — no fans, no moving parts
A built-in Watchdog auto-restart keeps the unit running unattended — no on-site intervention needed.
🔌 Dual M.2 Slots + eSIM + PoE
Two independent M.2/Mini-PCIe slots let you install dual 5G/4G modules for carrier diversity or automatic WAN failover.
The built-in eSIM enables remote carrier provisioning — no physical SIM swap required in the field.
PoE-PD input means one cable handles both power and data.
Single PoE cable delivers both power and data — clean, simple installation
🔧 OpenWRT — Full Control for Engineers
OpenWRT support unlocks enterprise-grade customization:
- VPN tunneling (WireGuard, OpenVPN, IPsec)
- Custom firewall and routing policies
- VLAN segmentation
- CLI access for automation
- Third-party package support
Plus built-in cloud management, DHCP, NTP, SSID hiding, and device blacklisting.
📡 One-Key MESH — Scale Without Complexity
Link multiple Z8102AX-M2-H units into a seamless mesh network with a single button press. No complex configuration. Consistent wide-area coverage across:
- Industrial campuses
- Outdoor event venues
- Smart agriculture sites
- Multi-building enterprise networks
✅ Who Is This For?
Remote Industrial Sites
Oil fields, mining, construction — reliable 5G with IP67 protection.
Smart City Infrastructure
Public WiFi, transit hubs, municipal IoT networks.
Outdoor Venues
Stadiums and large events with thousands of concurrent users.
ISP Fixed Wireless (FWA)
5G last-mile delivery for underserved areas.
Enterprise Campus
Extend coverage without fiber runs.

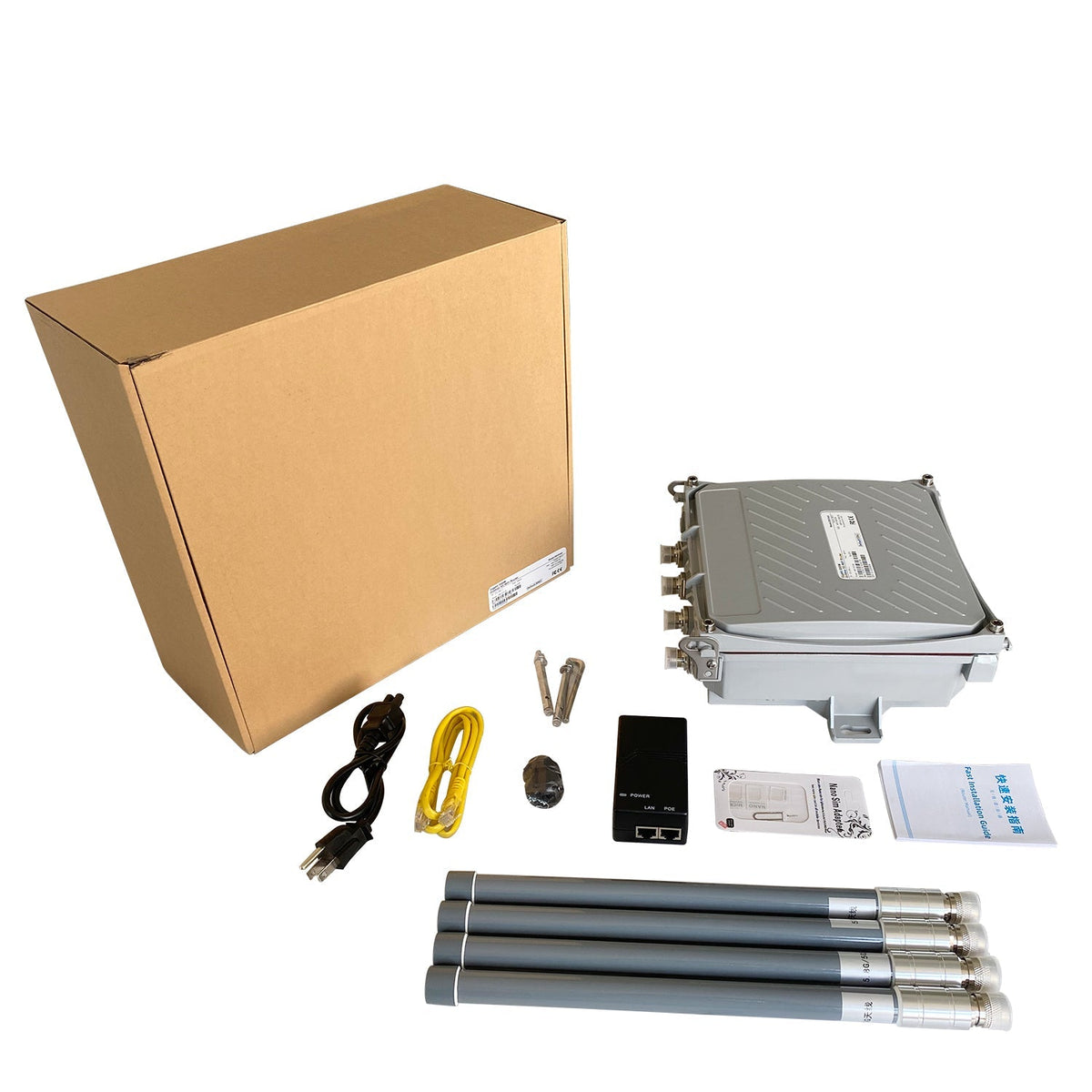

📦 Packaging & What's in the Box
Standard retail/enterprise packaging — ready for bulk and ODM orders
Ready to Deploy?
The Z8102AX-M2-H is available for enterprise orders, ODM/OEM customization, and bulk procurement.
