Why Enterprises Are Choosing 5G + WiFi 6 Outdoor CPE in 2026

As enterprise networks expand beyond the office perimeter — to warehouses, construction sites, outdoor venues, and remote industrial facilities — the demand for ruggedized, high-throughput wireless infrastructure has never been higher. The ZBT Z8102AX-M2-H is purpose-built for these environments: combining 5G mobile backhaul with WiFi 6 (802.11ax) distribution in a single IP67-rated outdoor unit.

This article covers the Z8102AX-M2-H's key specifications, deployment use cases, and why it's a compelling choice for enterprise network engineers and procurement teams.

Product Overview: Z8102AX-M2-H

The Z8102AX-M2-H is a dual-radio outdoor CPE (Customer Premises Equipment) designed for enterprise-grade primary connectivity and backhaul. It runs on the MediaTek MT7981B ARM Cortex-A53 dual-core platform at 1.3 GHz, paired with the MT7976CN WiFi 6 chip, delivering up to 3000 Mbps aggregate wireless throughput.

Unlike consumer-grade outdoor routers, the Z8102AX-M2-H is engineered for unattended, always-on deployments with hardware watchdog, PoE power input, and OpenWRT compatibility for deep customization.

Key Specifications at a Glance

Core Platform

• CPU: MT7981B, ARM Cortex-A53 dual-core @ 1.3 GHz
• WiFi 6 Chip: MT7976CN — up to 3000 Mbps aggregate throughput
• RAM: 256 MB DDR3 | Flash: 128 MB SPI NAND
• Wireless Standards: IEEE 802.11a/b/g/n/ac/ax (2.4 GHz & 5.8 GHz dual-band)

Connectivity & Interfaces

• 1× Gigabit LAN port (Auto MDI/MDIX, IEEE 802.3/802.3u/802.3ab)
• 2× M.2 / Mini-PCIe slots for 4G/5G module integration (GPIO-controlled power)
• External Nano SIM + built-in eSIM (QFN-8, 6mm×5mm) — SIM/USIM dual support
• PoE-PD power input (IEEE 802.3af/at compliant) — single-cable deployment

Antenna & RF Coverage

• 4× detachable high-gain fiberglass antennas (2.4G+4G/5G & 5.8G+4G/5G)
• 360° omnidirectional coverage — no dead zones

Enclosure & Reliability

• IP67-rated fully sealed metal shell — dust-tight and waterproof (1m immersion)
• Passive heat dissipation — no moving parts, no fan failure risk
• Hardware watchdog with auto-restart on system crash

Power Supply

Management & Software

• OpenWRT compatible — full CLI and package ecosystem access
• Cloud management | VPN | DHCP | NTP | WAN failover
• One-key MESH networking for seamless multi-unit expansion
• One-key rescue flash mode (long-press reset)
• SSID hiding, device blacklist, parental controls, channel & TX power adjustment

Enterprise Use Cases

1. Remote Site Primary Connectivity

For sites without fiber or fixed broadband, the Z8102AX-M2-H provides enterprise-grade 5G primary connectivity with WiFi 6 local distribution — eliminating the need for separate cellular routers and access points.

2. Outdoor Venue & Event Networks

High-density WiFi 6 (OFDMA, MU-MIMO) handles hundreds of concurrent client connections at stadiums, campuses, and public spaces — while 5G backhaul ensures consistent uplink capacity.

3. Industrial & Manufacturing Sites

IP67 sealing and passive cooling make the Z8102AX-M2-H suitable for harsh environments: factory floors, oil & gas facilities, port logistics, and outdoor warehousing.

4. Multi-Location Enterprise Backhaul

With WAN failover and MESH networking, multiple Z8102AX-M2-H units can form a resilient mesh backhaul across a campus or multi-building enterprise campus — with centralized cloud management.

5. Temporary & Pop-Up Deployments

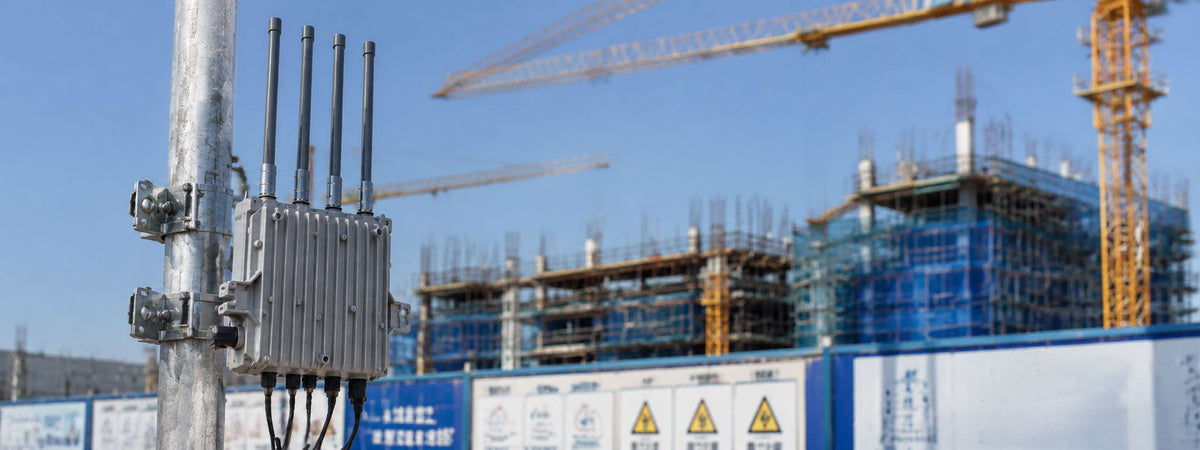

PoE-PD input means a single Ethernet cable handles both power and data — ideal for rapid deployment at construction sites, temporary offices, or disaster recovery scenarios.

Why OpenWRT Matters for Enterprise Buyers

OpenWRT support is a critical differentiator for enterprise and integrator customers. It enables:

• Custom firewall rules and traffic shaping via iptables/nftables
• VPN tunneling (WireGuard, OpenVPN, IPsec) for secure site-to-site connectivity
• Third-party package installation — SNMP agents, monitoring tools, custom scripts
• Integration with NMS platforms (Zabbix, PRTG, LibreNMS) via SNMP or SSH
• Long-term firmware control — no vendor lock-in on update cycles

5G + WiFi 6: The Convergence Advantage

Traditional outdoor deployments required separate 5G routers and WiFi access points — increasing cost, complexity, and failure points. The Z8102AX-M2-H consolidates both into a single ruggedized unit:

• Lower TCO: One device, one PoE cable, one management interface
• Faster deployment: No inter-device cabling or configuration synchronization
• Higher reliability: Fewer components = fewer failure points in unattended environments
• Future-ready: M.2 expansion slots allow 5G module upgrades as cellular standards evolve

Technical Comparison: Z8102AX-M2-H vs. Typical Outdoor CPE

Packaging & What's in the Box

Ordering & Customization

The Z8102AX-M2-H is available for B2B procurement with options for:

• Custom firmware builds (white-label OpenWRT, pre-configured VPN profiles)
• OEM/ODM branding for system integrators and ISPs
• Bulk pricing for volume deployments (10+ units)
• 5G module selection — specify your regional band requirements (Sub-6 GHz, mmWave)

Contact our enterprise sales team for a quote, technical datasheet, or sample unit request.

Conclusion

The ZBT Z8102AX-M2-H delivers what enterprise network teams need from an outdoor CPE in 2026: 5G + WiFi 6 convergence, IP67 durability, OpenWRT flexibility, and PoE simplicity — in a single ruggedized unit designed for unattended, always-on deployments.

Whether you're connecting a remote industrial site, deploying a high-density outdoor venue network, or building a resilient multi-location backhaul, the Z8102AX-M2-H is engineered to perform where consumer-grade equipment fails.
