Enterprise Networking · Solution Brief · ZBT WiFi

As distributed enterprises push compute and critical applications to the network edge, the demands placed on CPE hardware have fundamentally changed. Carrier-grade uptime, multi-SIM redundancy, and open software stacks are no longer optional — they are baseline requirements. The Z8102AX-M2-S was engineered to meet them.

The Enterprise Edge Challenge

Modern enterprise IT teams face a paradox: the sites that most depend on reliable connectivity — remote offices, industrial plants, retail branches, construction sites, and logistics hubs — are precisely those least served by fixed-line infrastructure. Fiber rollouts lag behind deployment timelines. MPLS circuits are expensive and inflexible. And as more business-critical workloads migrate to cloud and SaaS platforms, a brief WAN outage translates directly into measurable revenue loss.

The answer for forward-thinking network architects is a 5G-first edge architecture: purpose-built CPE that delivers carrier-grade performance, hardware redundancy, and the software flexibility to integrate into existing enterprise management ecosystems.

Solution Architecture: What the Z8102AX-M2-S Delivers

1. Dual SIM + eSIM — Carrier-Agnostic Resilience

The Z8102AX-M2-S supports three Nano SIM card slots alongside M.2 module expansion, enabling true multi-carrier deployment. System integrators can provision a primary carrier SIM and a failover SIM from a second operator — or leverage eSIM profiles for remote carrier switching without on-site intervention. For deployments spanning multiple geographies, this architecture eliminates single-carrier dependency and dramatically reduces mean time to recovery (MTTR) during carrier outages.

WAN Failover is built into the firmware, automatically switching active connections without administrator intervention. For SD-WAN overlays and network management platforms, this failover behavior can be orchestrated through the device’s cloud management interface.

2. MT7981 SoC — Compute Headroom for Edge Workloads

At the heart of the Z8102AX-M2-S is the MediaTek MT7981 chipset — a dual-core ARM Cortex-A53 platform running at 1.3 GHz, paired with 1 GB RAM and 128 MB NAND Flash. This is not an entry-level specification. The compute envelope supports concurrent VPN termination, firewall policy enforcement, QoS processing, and local management plane operations without performance degradation.

For deployments where the CPE serves as a lightweight edge node — running containerized applications or local traffic inspection — the MT7981 platform provides the necessary headroom. The device ships with OpenWRT and ZBT OS, giving network engineers a familiar, scriptable environment for automation and custom policy deployment.

3. WiFi 6 (AX3000) — High-Density Wireless for Demanding Environments

The wireless subsystem delivers AX3000-class throughput across dual bands: 2.4 GHz and 5 GHz. IEEE 802.11ax (WiFi 6) introduces OFDMA and BSS Coloring, which are critical in high-density environments such as open-plan offices, warehouses, and event venues where legacy WiFi 5 deployments exhibit significant performance degradation under concurrent client load.

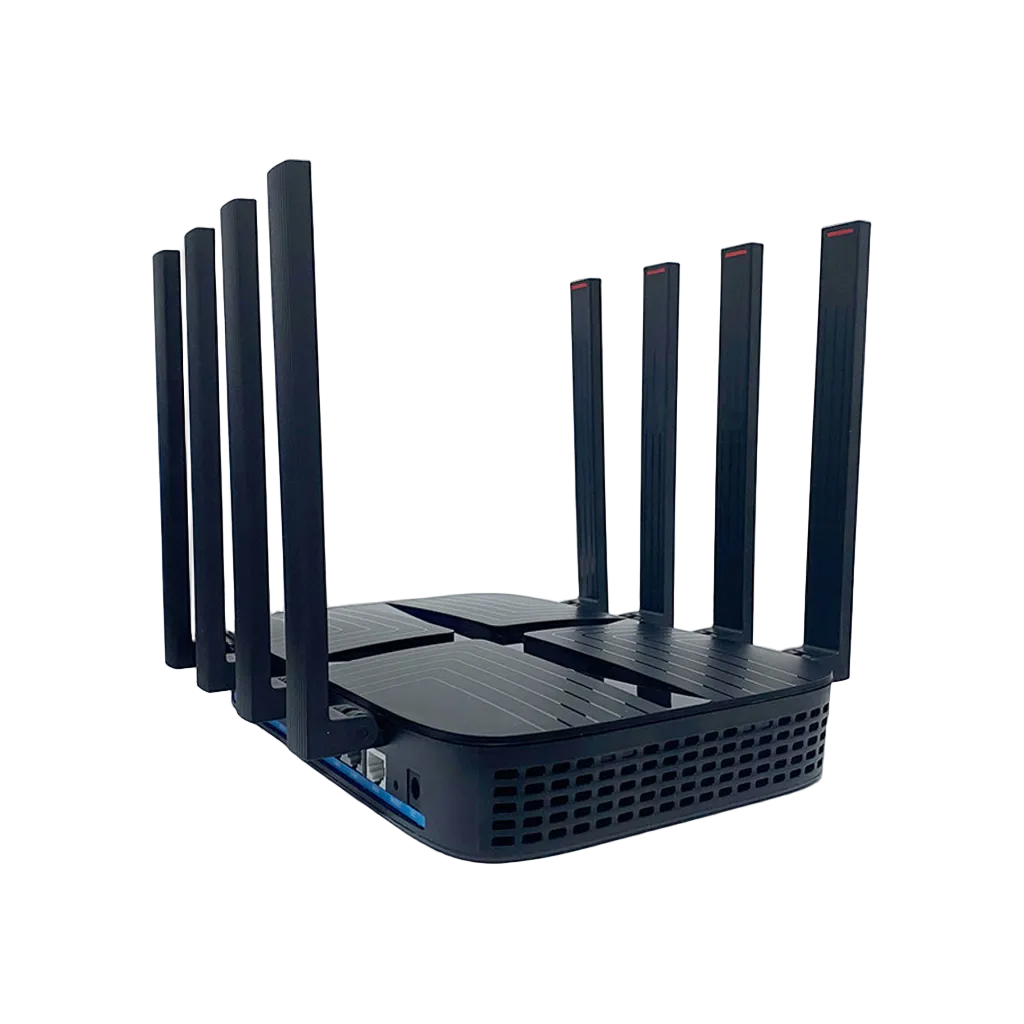

The Z8102AX-M2-S supports up to 50 concurrent wireless clients and includes eight high-gain antennas for extended coverage. For enterprises deploying in challenging RF environments — concrete structures, metal shelving, industrial machinery — the antenna design provides measurable signal reliability at range.

4. Multi-Port Gigabit LAN — Wired Integration Without Compromise

A single 1 Gbps WAN port and four 1 Gbps LAN ports provide full-gigabit wired connectivity for on-site network switches, IP cameras, point-of-sale terminals, and other Ethernet-dependent devices. The USB 3.0 port enables local storage attachment or LTE modem expansion where additional redundancy paths are required.

Target Deployment Scenarios

Distributed Retail & Branch Offices: Deploy a consistent, managed CPE footprint across dozens of branch locations. Centralized cloud management eliminates per-site truck rolls for configuration changes. Dual SIM failover ensures POS systems remain online even during carrier maintenance windows.

Industrial & Manufacturing Sites: Fixed-line infrastructure is often impractical in manufacturing environments due to layout changes and RF interference. The Z8102AX-M2-S provides a ruggedized-specification wireless backbone — operating from 0°C to 40°C — with the processing headroom to support industrial IoT gateways and SCADA traffic segmentation via VLAN.

Temporary & Pop-Up Infrastructure: Event venues, construction site offices, and temporary command centers benefit from rapid 5G commissioning. The M.2 modular architecture allows operators to swap cellular modules as regional coverage evolves, protecting hardware investment across multi-year project timelines.

MSP-Managed Enterprise Networks: For managed service providers operating multi-tenant network environments, the OpenWRT base and cloud management support enable standardized provisioning templates, remote diagnostics, and automated configuration drift correction — reducing operational overhead per managed site.

Key Technical Specifications

Procurement & Integration Support

The Z8102AX-M2-S is available for enterprise volume procurement and VAR/MSP channel partnerships. ZBT WiFi supports OEM configuration, custom firmware builds, and white-label packaging for system integrators requiring a consistent, managed CPE platform at scale.

To request a technical datasheet, evaluation unit, or volume pricing, contact the ZBT enterprise sales team directly.
