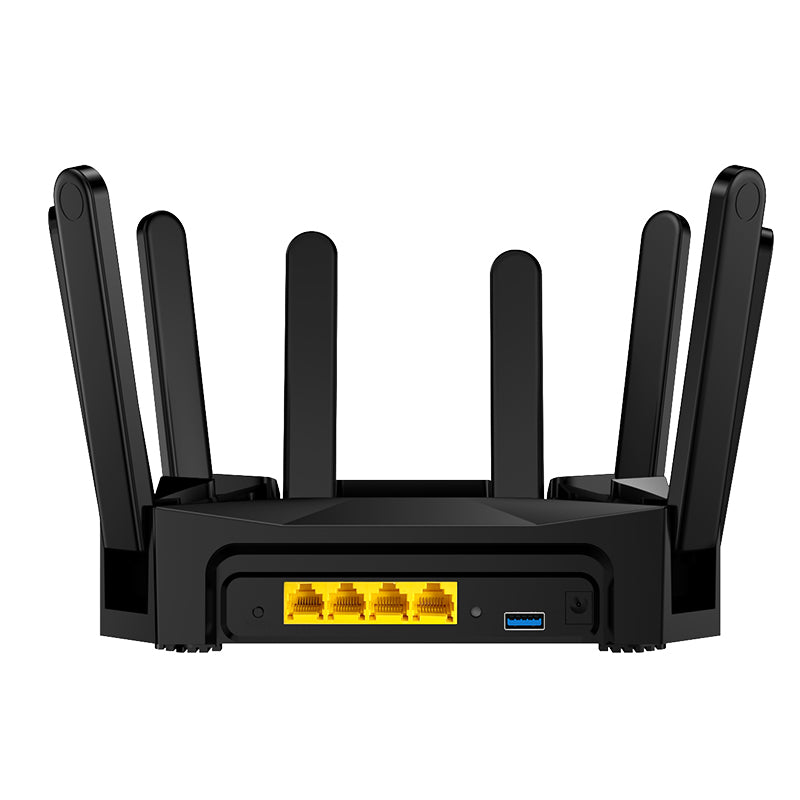

Z8103AX-G-2.5G – High-Throughput WiFi 6 Router for ISP and Business, 2.5G WAN 10 Antenna Mesh AX2975 Gigabit

Name: Z8103AX-G-2.5G – High-Throughput WiFi 6 Router for ISP and Business, 2.5G WAN 10 Antenna Mesh AX2975 Gigabit
Brand: ZBT
SKU: Z8103AX-G-2-5G
Price: 156.99 USD
Availability: InStock

2.5Gbps PHY LAN Port: Future-proof wired connectivity supporting IEEE 802.3bz, fully unleashing next-gen NAS, switches, and multi-gig network speeds.

WiFi 6 AX3000 Dual-Band: MT7976CN delivers 574Mbps @ 2.4GHz + 2400Mbps @ 5.8GHz with OFDMA, MU-MIMO, and 4096-QAM for ultra-efficient high-density wireless.

MT7981B Dual-Core 1.3GHz + 256MB DDR3: Reliable enterprise-grade processing for smooth multi-device routing and concurrent high-throughput workloads.

OpenWRT Compatible: Full support for ZBT OS and OpenWRT firmware, giving developers and integrators complete customization flexibility.

Compact & Versatile Design: 204 × 182.2 × 75.48mm form factor suits home, office, and enterprise deployments without cellular module dependency.

Category	Specifications
CPU	MT7981B, ARM Cortex-A53 Dual-Core, up to 1.3GHz
WiFi Chip	MT7976CN, IEEE 802.11n/g/b/a/ac/ax, up to 3000Mbps
RAM	DDR3 256MB
Flash	SPI NAND Flash 128MB (NOR Flash 16MB optional)
2.5G LAN Port	1 × 2.5Gbps, Auto MDI/MDIX, IEEE 802.3 / 802.3u / 802.3ab / 802.3bz
External Power Supply	Input: 9–15V DC / Rated: 12V / 1A
Environment	Operating Temperature: 0℃–40℃ Storage Temperature: -40℃–70℃ Working Humidity: 10%–90% RH non-condensing Storage Humidity: 5%–90% RH non-condensing
Dimensions	204 × 182.2 × 75.48 mm \| Color: Black

SKU: Z8103AX-G-2-5G

WhatsApp Contact

View details

Software Features

Category	Specifications
Wireless Standards	IEEE 802.11a/n/ac/ax (5.8GHz) / IEEE 802.11b/g/n/ac/ax (2.4GHz)
Frequency	2.4 GHz & 5.8 GHz
Wireless Rate	2.4 GHz: 574 Mbps / 5.8 GHz: 2400 Mbps (Total: 3000 Mbps)
MIMO	2.4GHz: 2T2R MU-MIMO / 5.8GHz: 2T3R MU-MIMO
Modulation	2.4GHz: 1024-QAM / 5.8GHz: 4096-QAM / OFDMA
WAN Failover	Supported
Wireless Security	WPA / WPA2 / WPA-PSK
Firmware	ZBT OS / OpenWRT compatible
Default Config	IP: 192.168.1.1 \| Login: root / admin 2.4G SSID: WIFI6-XXXXXX (last 6 digits of MAC) 5.8G SSID: WIFI6-5G-XXXXXX (last 6 digits of MAC)
Software Features	VPN Support Cloud Management Parental Control SSID Hidden Blacklist NTP / DHCP Port Forwarding Static Routing
