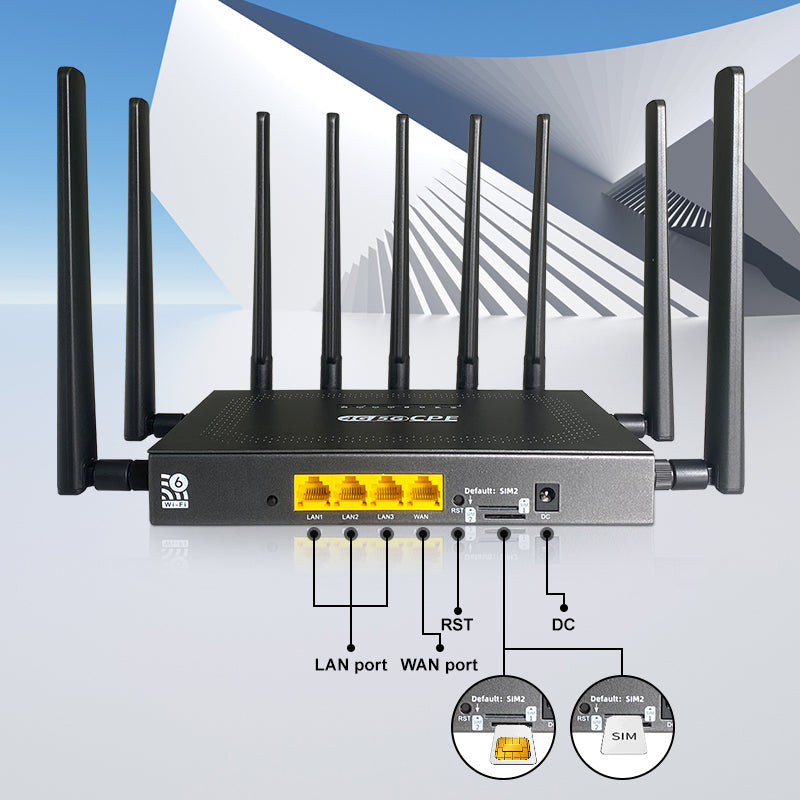

Z8105AX-M2-T — Reliable 5G CPE, WiFi 6 AX3000 & 8-Antenna Design for Wide Coverage

Key Selling Points — Z8105AX-M2-T

WiFi 6 AX3000 Dual-Band Speed
2.4GHz up to 573Mbps + 5.8GHz up to 2402Mbps, total 2975Mbps for seamless high-speed connectivity.

Powerful MT7981B Dual-Core CPU
ARM Cortex-A53 1.3GHz with MT7976CN WiFi chipset delivering reliable, enterprise-grade routing performance.

Dual M.2 Slots for 5G Expansion
Two M.2 slots with USB 3.0 BUS support and dual Standard SIM card slots for flexible multi-carrier deployments.

Robust Hardware Foundation
DDR3 256MB RAM + 128MB SPI NAND Flash, 1×WAN + 3×LAN Gigabit ports, and 8 detachable high-gain SMA antennas for extended coverage.

Category	Specifications
Interface	11000Mbps WAN Port, 31000Mbps LAN Ports
Port	DC 5.5*2.1MM
Button	1* Reset Button, 1*Mesh Button
Module Slot	2*M.2 Slots, Supports USB 3.0 BUS
SIM Card Slot	2*Standard SIM card slot

WhatsApp Contact

View details

Software Features

Spec name	Value
CPU	Main Chipset: MT7981B ARM Cortex-A53 Dual Core CPU, 1.3GHz Frequency, WIFI Chipset MT7976CN
Protocol	IEEE 802.11n/g/b/a/ac/ax
Wi-Fi Rate	2.4GHz MAX 573Mbps / 5.8GHz MAX 2402Mbps / Total 2975Mbps
FLASH/RAM	DDR3 256MB/SPI NAND Flash128MB, eMMC no support
Interface	11000Mbps WAN Port, 31000Mbps LAN Ports
Port	DC 5.5*2.1MM
Button	1* Reset Button, 1*Mesh Button
Module Slot	2*M.2 Slots, Supports USB 3.0 BUS
SIM Card Slot	2*Standard SIM card slot
Antenna	8*Detachable High Gain SMA Antennas
