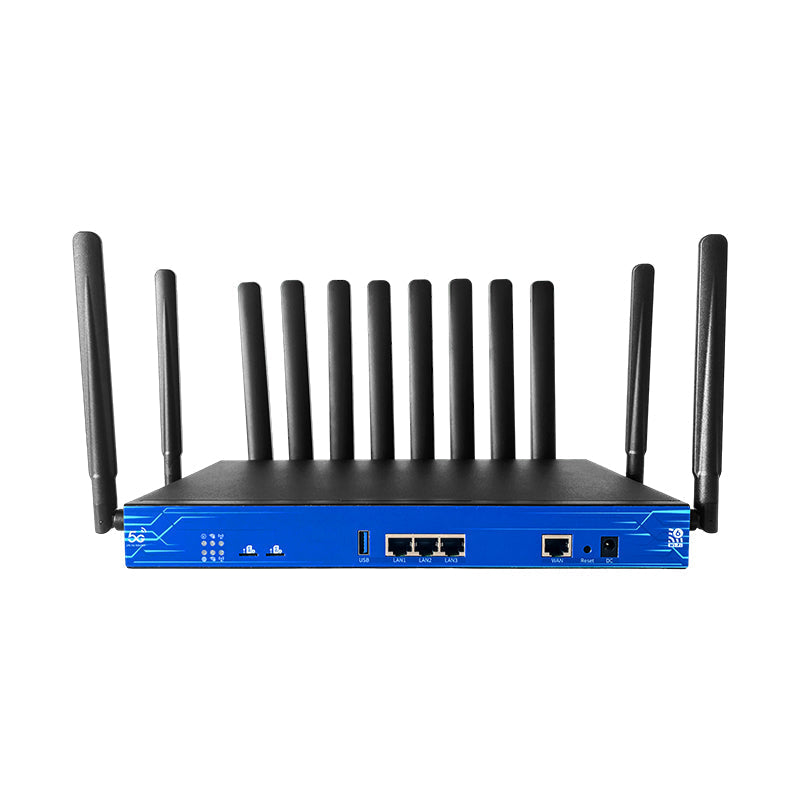

ZBT Z8119AX-M2-T: Dual 5G Router Built for Enterprise Uptime
ZBTWIFI
SHENZHEN, Sept. 14, 2026 — As enterprise networks push deeper into remote facilities, logistics hubs, and industrial campuses, the demand for wireless infrastructure that can sustain connectivity without on-site intervention has intensified. ZBT’s Z8119AX-M2-T is the company’s latest answer to that pressure: a compact WiFi 6 router designed around dual 5G module expansion and an autonomous hardware watchdog that can restart crashed subsystems without human input.
Architecture Prioritises Redundancy Over Raw Speed
The Z8119AX-M2-T is built on MediaTek’s MT7981B ARM Cortex-A53 dual-core processor, clocked at 1.3GHz and paired with 512MB of DDR3 RAM. While those figures are modest by consumer standards, they reflect an engineering philosophy common in industrial networking: stability and thermal efficiency over peak benchmark performance.
The distinguishing hardware decision is the inclusion of two M.2 expansion slots — one running USB 3.0, the other USB 2.0 — capable of hosting two independent 5G or 4G cellular modules simultaneously. In practice, this means an operator can configure the device to maintain a live secondary WAN connection at all times, switching automatically if the primary carrier link degrades or fails. For deployments in regions where a single carrier’s coverage is unreliable — construction sites, mining operations, or cross-border logistics routes — the architecture offers a meaningful operational advantage.
Hardware Watchdog: Autonomy as a Feature
ZBT has positioned the hardware watchdog as the device’s flagship capability. The mechanism operates independently of the operating system: it monitors the routing system’s heartbeat signal at one-second intervals. If no heartbeat is detected within a 120-second window — indicating a software lock-up or crash — the watchdog triggers a full system restart within 15 seconds, without waiting for network operations staff to diagnose the fault remotely.
The granularity extends further. Should only one of the two 5G modules enter a failed dialling state, the watchdog can cycle power to that specific module via GPIO control, leaving the rest of the system — and the second cellular connection — undisturbed. The distinction matters in managed service contexts, where unnecessary full reboots extend downtime and complicate remote monitoring dashboards.
WiFi 6 Performance Envelope
Wireless performance is handled by the MT7976CN chipset, implementing IEEE 802.11ax (WiFi 6) across both the 2.4GHz and 5.8GHz bands. Aggregate throughput is rated at 3,000Mbps — 574Mbps on the 2.4GHz radio using 2T2R MU-MIMO, and 2,400Mbps on the 5.8GHz radio using a 2T3R MU-MIMO configuration with 160MHz channel support. OFDMA is supported on both bands, improving spectral efficiency in environments with high device density.
For enterprise deployments, the more relevant figures are the receive sensitivity ratings. At the 5.8GHz band, the device achieves -55 dBm at 802.11ax HE80, a level that supports reliable coverage in moderately attenuating environments such as light industrial warehousing or open-plan offices.
Software: OpenWRT Compatibility as a Strategic Choice
The Z8119AX-M2-T ships with ZBT’s proprietary OS firmware but is explicitly compatible with OpenWRT, the open-source Linux-based router operating system widely used by system integrators and managed service providers who require deep customisation, scripted configuration management, or integration with network monitoring platforms such as LibreNMS or Zabbix.
OpenWRT compatibility has become a differentiating factor in the SME and mid-market enterprise segment, where procurement teams increasingly favour hardware that can be managed through existing toolchains rather than proprietary cloud dashboards that carry recurring licensing costs.
Physical and Power Specifications
The unit measures 300 × 181 × 35 mm and is rated for operating temperatures between 0°C and 40°C. Power input accepts 9V to 54V DC, with a rated draw of 2.5A at 12V, making it compatible with standard rack-mounted DC distribution units and 12V vehicle or solar power systems with appropriate surge protection. Storage defaults to 128MB SPI NAND Flash, with optional eMMC modules up to 256GB for deployments requiring local log storage or edge compute functions.
Market Positioning
ZBT’s Z8119AX-M2-T is listed at USD 299 — a price point that positions it below enterprise-tier Cisco or Cradlepoint cellular routers while offering comparable dual-SIM redundancy features. The primary addressable market appears to be system integrators and VARs serving mid-market enterprises that need carrier-diverse WAN connectivity without the overhead of enterprise vendor support contracts.
Cellular module selection and regional frequency band compatibility are handled separately; ZBT advises prospective buyers to confirm band support with its sales team prior to deployment in specific markets.
Interested in the Z8119AX-M2-T for Your Deployment?
Whether you’re a system integrator, VAR, or enterprise IT team evaluating carrier-redundant 5G infrastructure, our team is ready to assist with specifications, volume pricing, and regional band compatibility.
Cellular modules and SIM cards are sold separately. Band compatibility varies by region.
