Z8103AX-C – WiFi 6 Mesh Router for Hospitality and Premium Office, Cylindrical Design Internal Antenna AX2975

Name: Z8103AX-C – WiFi 6 Mesh Router for Hospitality and Premium Office, Cylindrical Design Internal Antenna AX2975
Brand: Zbtlink Online Store
Availability: InStock

Wi-Fi 6 AX3000 Dual-Band: 2.4GHz 600Mbps + 5.8GHz 2400Mbps for ultra-fast, low-latency connectivity across all Wi-Fi 6 devices.

Mesh Networking Support: Seamless whole-home coverage with easy mesh expansion, eliminating dead zones in large spaces.

MT7981 Dual-Core 1.3GHz CPU: Powerful ARM Cortex-A53 processor ensures smooth performance for streaming, gaming, and multi-device use.

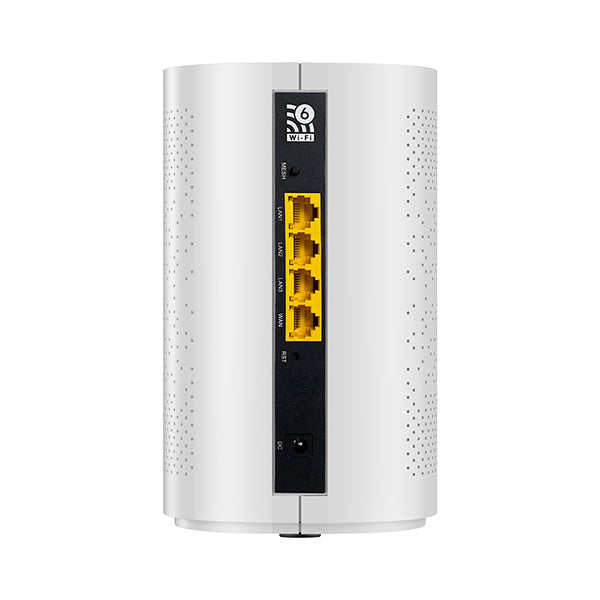

Full Gigabit Ports: 1 × Gigabit WAN + 3 × Gigabit LAN for high-speed wired connections up to 1000Mbps.

Up to 128 Clients + WAN Failover: Handles 128 simultaneous connections with automatic failover to keep the network always online.

Category	Specifications
CPU	MT7981, ARM Cortex-A53 Dual-Core, up to 1.3GHz
Interface	1 × 10/100/1000 Mbps WAN Port / 3 × 10/100/1000 Mbps LAN Ports
Button	Reset Button
External Power Supply	Input: 100–240V~ 50/60Hz 0.6A / Output: 12VDC 1A
Environment	Operating Temperature: 0℃–40℃ (32℉–104℉) Operating Humidity: 10%–90% non-condensing Storage Humidity: 5%–90% non-condensing
Antenna	5 × Internal High-Gain Antennas

WhatsApp Contact

View details

Software Features

Category	Specifications
Wireless Standards	IEEE 802.11a/n/ac/ax (5GHz) / IEEE 802.11b/g/n/ac/ax (2.4GHz)
Frequency	2.4 GHz & 5.8 GHz
Signal Rate	2.4 GHz: 600 Mbps / 5.8 GHz: 2400 Mbps
Max. Associated Clients	128
WAN Failover	Supported
Wireless Security	WPA / WPA2 / WPA-PSK
Software Features	Channel Adjustment Power Adjustment Parental Control SSID Hidden Blacklist Cloud Management NTP / DHCP VPN Support
