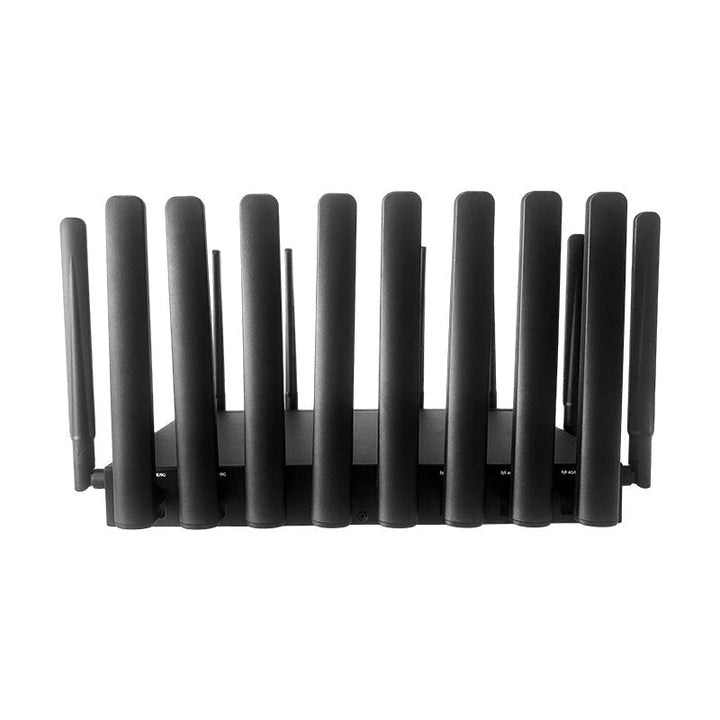

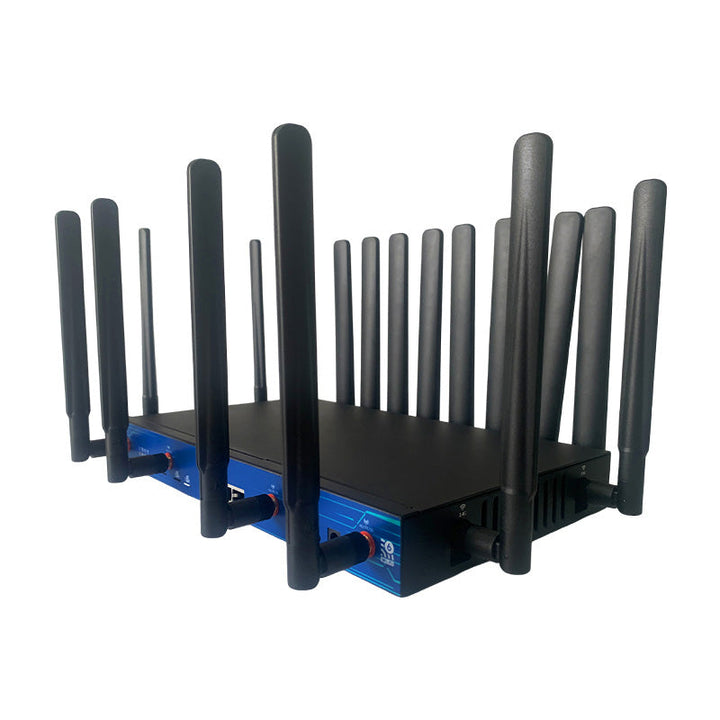

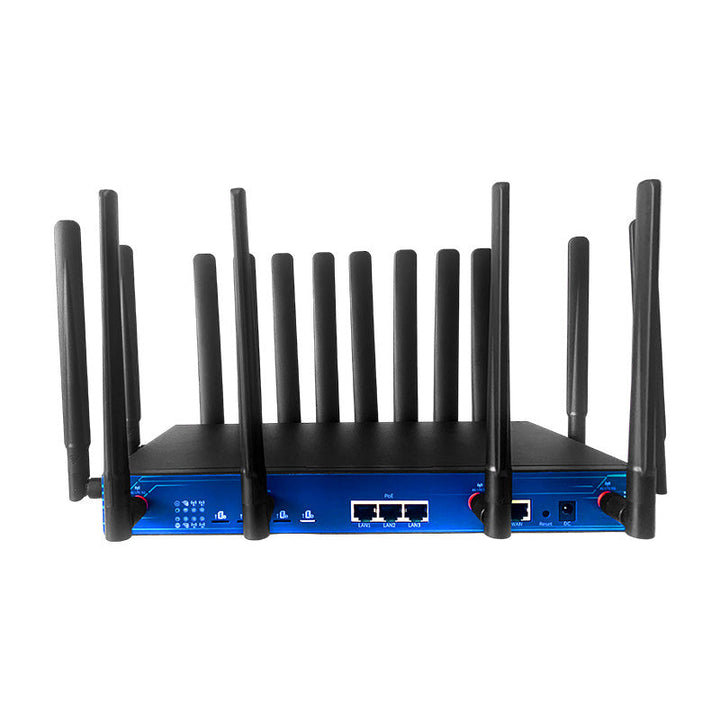

Four SIM 4G 5G AX3000 Wifi 6 Router
Z8109AX-M2-T is a 5G/4G+WiFi6 CPE router, which can access the Internet through 5G/4G mobile communication dial-up or 1000Mbps WAN port, and then share the Internet network through wireless WiFi 6 and 1000Mbps wired LAN.
|
HARDWARE FEATURES |
|
|
CPU |
ARM Cortex-A53 dual-core CPU, main frequency up to 1.3GHZ |
|
Interface |
1 * 10/100/1000 Mbps WAN Port 4 * m.2 slot |
|
Button |
Reset Button |
|
External Power Supply |
Power Adapter: Input Power 100-240v~50/60 Hz 0.6A |
|
Environment |
Operating Temperature: 0℃~40℃ (32℉ ~104℉) |
|
Antenna |
Optional |
|
WIRELESS FEATURES |
|
|
Wireless Standards |
IEEE 802.11a/n/ac/ax 5 GHz, IEEE 802.11b/g/n/ac/ax 2.4 GHz |
|
Frequency |
2.4 GHz and 5.8 GHz |
|
Signal Rate |
600Mbps at 2.4 GHz, 2400Mbps at 5.8 GHz |
|
Wi-Fi Max.Associated Clients |
128 |
|
WAN Failover |
Yes |
|
Wireless Security |
WPA/WPA2, WPA-PSK |
|
SOFTWARE FEATURES |
|
|
Channel adjustment |
Support |
|
Power adjustment |
Support |
|
Parent control |
Support |
|
SSID Hidden |
Support |
|
Black list |
Support |
|
Cloud management |
Support |
|
NTP |
Support |
|
DHCP |
Support |
|
VPN |
Support |
