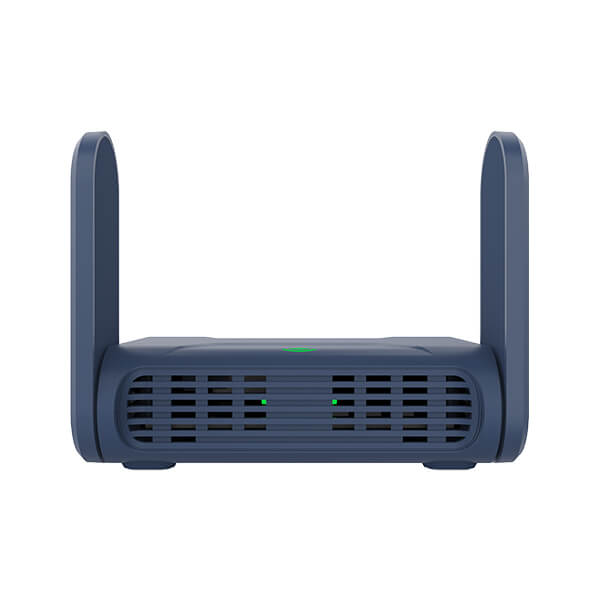

Z8118AX-A MT7981B

Name: Z8118AX-A MT7981B
Brand: ZBTWIFI
Availability: OutOfStock

MT7981B Dual-Core Platform: Powered by an ARM Cortex-A53 dual-core processor at 1.3GHz with MT7976CN Wi-Fi chipset, delivering high-performance dual-band Wi-Fi 6 for home and office use.

Dual-Band Wi-Fi AX2975: Simultaneous 2.4GHz and 5.8GHz Wi-Fi 6 with a combined throughput of 2975Mbps, supporting fast and stable connections for multiple devices.

Gigabit Ports & USB-C Power: Equipped with one Gigabit WAN and one Gigabit LAN port, powered via TYPE-C (5V/3A) for flexible and clean installation.

Compact Design with Dual-Band Antennas: Two omnidirectional antennas covering both 2.4GHz and 5.8GHz bands, delivering broad and reliable wireless coverage in a compact form factor.

KEY SPECIFICATIONS
CPU	MT7981B \| ARM Cortex-A53 Dual Core \| 1.3GHz Wi-Fi Chipset: MT7976CN
Protocol	IEEE 802.11n/g/b/a/ac/ax
Wi-Fi Rate	2.4GHz: MAX 573Mbps 5.8GHz: MAX 2402Mbps \| Total 2975Mbps
FLASH / RAM	DDR4 512MB \| SPI NAND Flash 256MB
Interface	1 × 1000Mbps WAN Port 1 × 1000Mbps LAN Port
Port	1 × TYPE-C \| Supports 5V/3A
Button	1 × Reset Button
Antenna	2 × Omnidirectional Dual-Band (2.4G & 5.8G)

WhatsApp Contact

View details

Software Features

General Specifications
Model	Z8118AX-A
Wi-Fi Standard	IEEE 802.11n/g/b/a/ac/ax
Wi-Fi Rate	2.4GHz: MAX 573Mbps 5.8GHz: MAX 2402Mbps \| Total 2975Mbps
Storage	DDR4 512MB \| SPI NAND Flash 256MB
Antenna	2 × Omnidirectional Dual-Band (2.4G & 5.8G)

Hardware Specs
CPU	MT7981B \| ARM Cortex-A53 Dual Core \| 1.3GHz Wi-Fi Chipset: MT7976CN
FLASH / RAM	DDR4 512MB \| SPI NAND Flash 256MB
Interface	1 × 1000Mbps WAN Port 1 × 1000Mbps LAN Port
Port	1 × TYPE-C \| Supports 5V/3A
Button	1 × Reset Button

Wireless & Network
Protocol	IEEE 802.11n/g/b/a/ac/ax
Wi-Fi Rate	2.4GHz: MAX 573Mbps 5.8GHz: MAX 2402Mbps \| Total 2975Mbps
Ethernet	1 × 1000Mbps WAN \| 1 × 1000Mbps LAN
Antenna	2 × Omnidirectional Dual-Band (2.4G & 5.8G)
