Z8103AX-H MT7981B

Name: Z8103AX-H MT7981B
Brand: ZBTWIFI
Availability: OutOfStock

MT7981B Dual-Core Platform: Powered by an ARM Cortex-A53 dual-core processor at 1.3GHz with MT7976CN Wi-Fi chipset, delivering high-performance dual-band wireless for outdoor deployments.

Dual-Band Wi-Fi AX2975: Simultaneous 2.4GHz and 5.8GHz Wi-Fi 6 coverage with a combined throughput of 2975Mbps, supporting high-density outdoor wireless environments.

Gigabit PoE Connectivity: Single 1000Mbps LAN port with non-standard PoE power supply support enables clean and flexible outdoor installation without a separate power adapter.

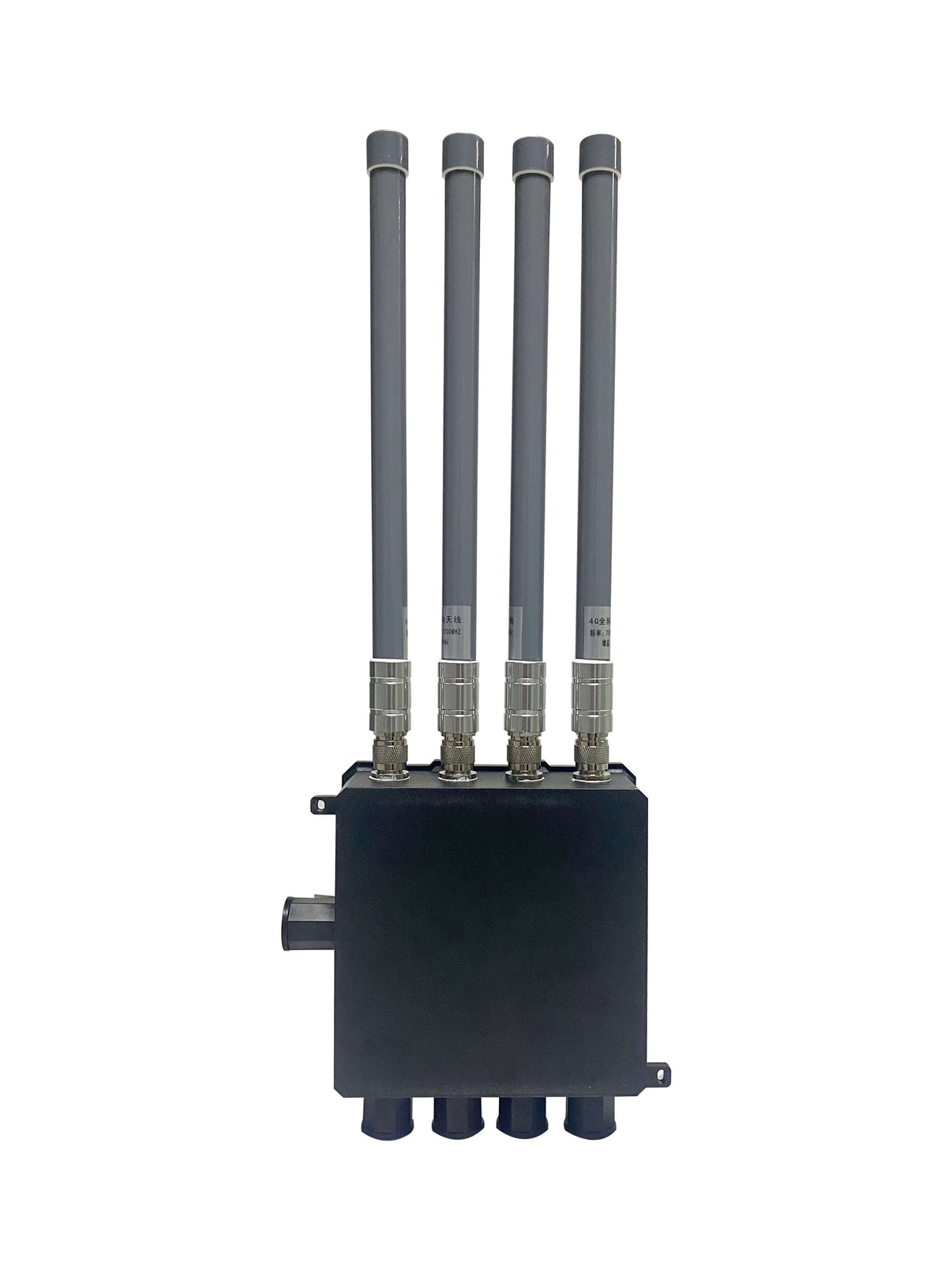

Rugged Outdoor Build: Weatherproof enclosure with four detachable omnidirectional 8dBi antennas covering both 2.4GHz and 5.8GHz bands, built for reliable long-range outdoor coverage.

KEY SPECIFICATIONS
CPU	MT7981B \| ARM Cortex-A53 Dual Core \| 1.3GHz Wi-Fi Chipset: MT7976CN
Protocol	IEEE 802.11n/g/b/a/ac/ax
Wi-Fi Rate	2.4GHz: MAX 573Mbps 5.8GHz: MAX 2402Mbps \| Total 2975Mbps
FLASH / RAM	DDR3 256MB \| SPI NAND Flash 128MB
Interface	1 × 1000Mbps LAN Port Non-standard PoE (15V 1A)
Button	1 × Reset Button \| 1 × Mesh Button
Antenna	2 × Detachable Omni 8dBi 2.4GHz Antennas 2 × Detachable Omni 8dBi 5.8GHz Antennas

WhatsApp Contact

View details

Software Features

General Specifications
Model	Z8103AX-H
Wi-Fi Standard	IEEE 802.11n/g/b/a/ac/ax
Wi-Fi Rate	2.4GHz: MAX 573Mbps 5.8GHz: MAX 2402Mbps \| Total 2975Mbps
Storage	DDR3 256MB \| SPI NAND Flash 128MB
Antenna	2 × Detachable Omni 8dBi 2.4GHz 2 × Detachable Omni 8dBi 5.8GHz

Hardware Specs
CPU	MT7981B \| ARM Cortex-A53 Dual Core \| 1.3GHz Wi-Fi Chipset: MT7976CN
FLASH / RAM	DDR3 256MB \| SPI NAND Flash 128MB
Interface	1 × 1000Mbps LAN Port Non-standard PoE (15V 1A)
Button	1 × Reset Button \| 1 × Mesh Button
Antenna	2 × Detachable Omni 8dBi 2.4GHz 2 × Detachable Omni 8dBi 5.8GHz

Wireless & Network
Protocol	IEEE 802.11n/g/b/a/ac/ax
Wi-Fi Rate	2.4GHz: MAX 573Mbps 5.8GHz: MAX 2402Mbps \| Total 2975Mbps
Ethernet	1 × 1000Mbps LAN Port
Antenna	2 × Detachable Omni 8dBi 2.4GHz 2 × Detachable Omni 8dBi 5.8GHz
