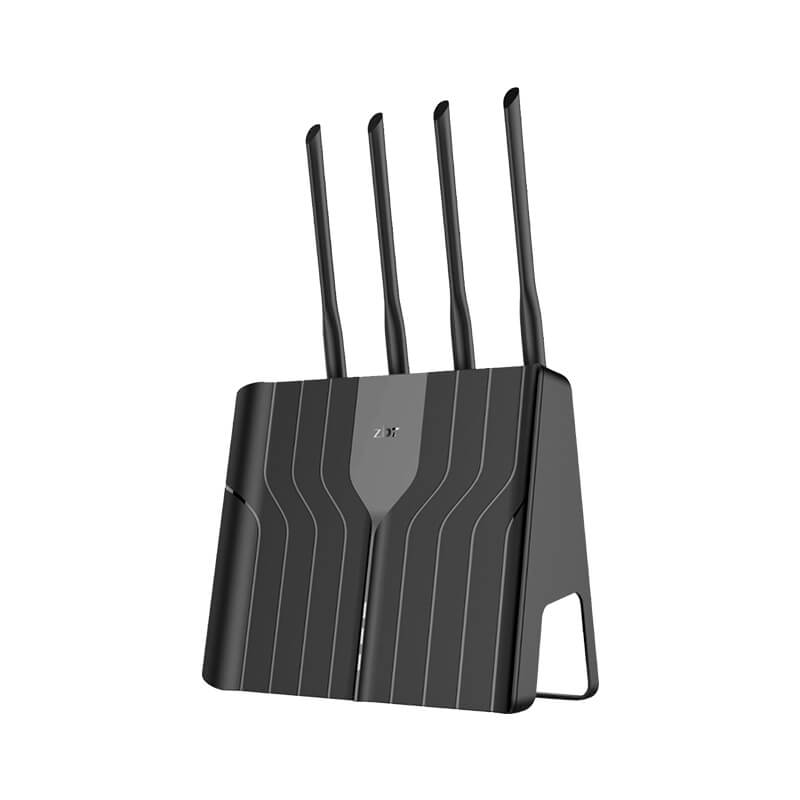

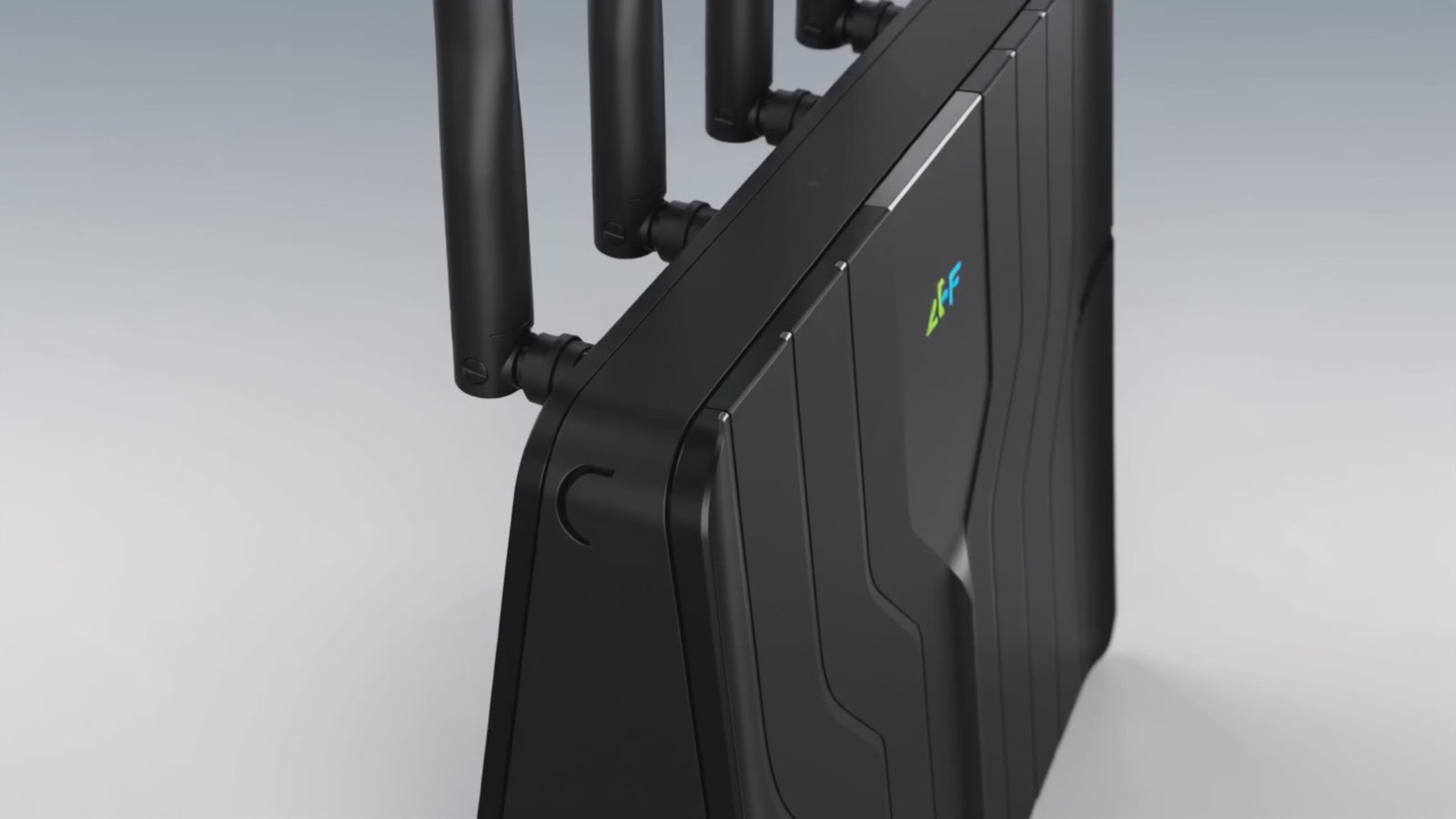

Z8111AX-D MT7981B

Name: Z8111AX-D MT7981B
Brand: ZBTWIFI
Availability: OutOfStock

MT7981B Dual-Core Platform: Powered by an ARM Cortex-A53 dual-core processor at 1.3GHz with MT7976CN Wi-Fi chipset, delivering high-performance dual-band Wi-Fi 6 for home and office use.

Dual-Band Wi-Fi AX2975: Simultaneous 2.4GHz and 5.8GHz Wi-Fi 6 with a combined throughput of 2975Mbps, supporting fast and stable connections for multiple devices at once.

Full Gigabit Connectivity: Equipped with one Gigabit WAN port and three Gigabit LAN ports, plus a USB 3.0 port for expanded wired connectivity and device integration.

Six External Antennas & Mesh Support: Six high-gain external antennas deliver broad dual-band coverage, with a dedicated Mesh button enabling seamless whole-home network expansion.

KEY SPECIFICATIONS
CPU	MT7981B \| ARM Cortex-A53 Dual Core \| 1.3GHz Wi-Fi Chipset: MT7976CN
Wi-Fi Rate	2.4GHz: MAX 573Mbps 5.8GHz: MAX 2402Mbps \| Total 2975Mbps
Interface	1 × 1000Mbps WAN Port 3 × 1000Mbps LAN Ports
Port	1 × DC 5.5×2.1MM \| 1 × USB 3.0
Button	1 × Reset Button \| 1 × Mesh Button

WhatsApp Contact

View details

Software Features

General Specifications
Model	Z8111AX-D
Wi-Fi Standard	IEEE 802.11n/g/b/a/ac/ax
Wi-Fi Rate	2.4GHz: MAX 573Mbps 5.8GHz: MAX 2402Mbps \| Total 2975Mbps
Antenna	6 × External Antennas

Hardware Specs
CPU	MT7981B \| ARM Cortex-A53 Dual Core \| 1.3GHz Wi-Fi Chipset: MT7976CN
FLASH / RAM	DDR3 256MB \| SPI NAND Flash 128MB Nor Flash 16MB (option)
Port	1 × DC 5.5×2.1MM \| 1 × USB 3.0
Button	1 × Reset Button \| 1 × Mesh Button
