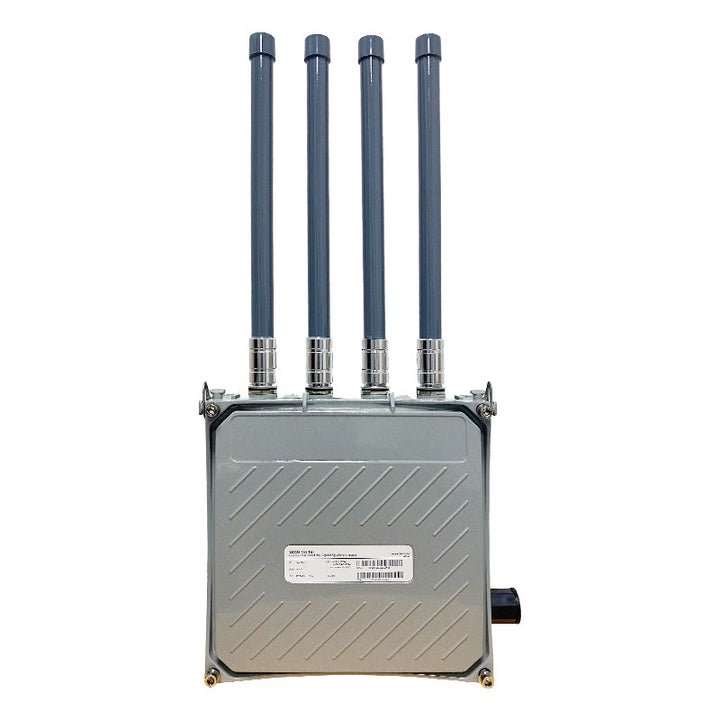

Z8105AX-M2-H_front view

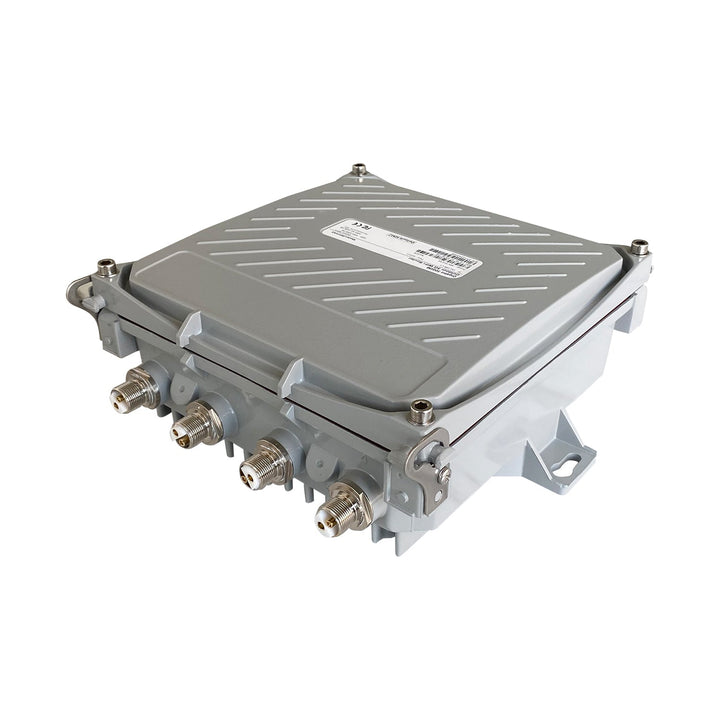

Z8105AX-M2-H_side view

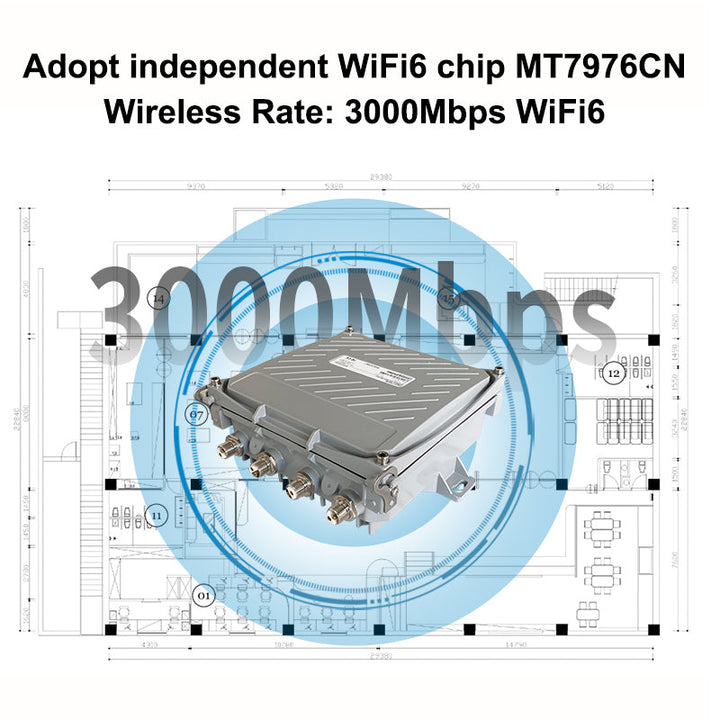

Adopt independent WiFi6 chip MT7976CNWireless Rate: 3000Mbps WiFi6

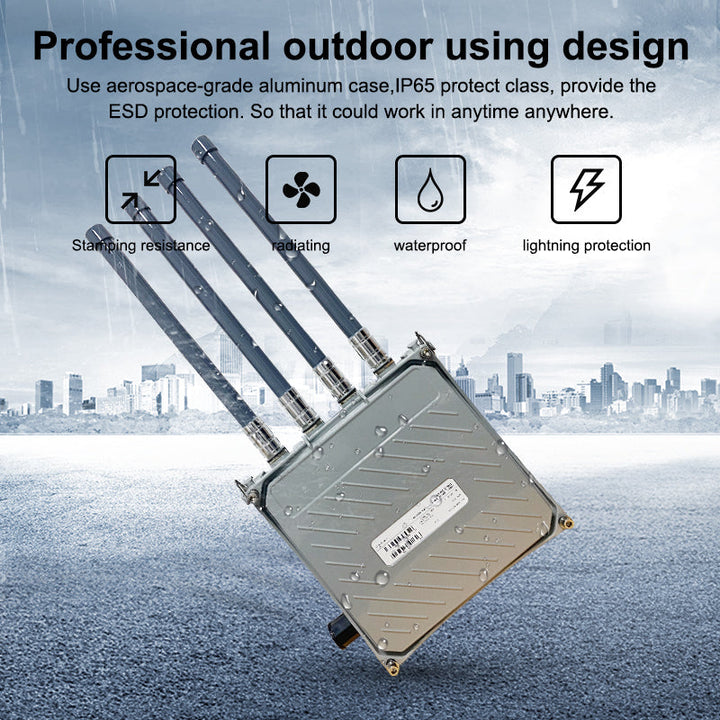

Professional outdoor using design

AX3000 Outdoor 5G CPE Z8105AX-M2-H

Model: Z8105AX-M2-H
CPU:Dual core, 1.3GHz Frequency
RAM: 256 DDR3
FLASH:128MB NAND Flash
Software :openWRT&ZBT OS

Description



Unleash Reliable Performance: Dual-Core CPU for Seamless Connectivity - For Outdoor Project

 Z8105AX-M2-H is a 5G/4G+WiFi6 Outdoor CPE router, which can access the Internet through 5G/4G mobile communication dial-up or 1000Mbps WAN port, and then share the Internet network through wireless WiFi 6 and 1000Mbps/2.5G wired LAN.


HARDWARE FEATURES

CPU

ARM Cortext-A53 dual-core CPU, main frequency up to 1.3GHZ

Interface

1G/2.5G Mbps WAN Port
3 *10/100/1000 Mbps LAN Ports

1 * m.2 slot
2 * Nano SIM Card Slot

Button

Reset Button

External Power Supply

48V/0.5A Standard POE

Environment

Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Antenna

Built in 2* omnidirectional 8dbi 2.4G and 4G/5G external antennas

Built in 2* omnidirectional 8dbi 5.8G and 4G/5G external antennas

WIRELESS FEATURES

Wireless Standards

IEEE 802.11a/n/ac/ax 5 GHz, IEEE 802.11b/g/n/ac/ax 2.4 GHz

Frequency

2.4 GHz and 5.8 GHz

Signal Rate

600Mbps at 2.4 GHz, 2400Mbps at 5.8 GHz

Wi-Fi Max.Associated Clients

128

WAN Failover

Yes

Wireless Security

WPA/WPA2, WPA-PSK

SOFTWARE FEATURES

Channel adjustment

Support

Power adjustment

Support

Parent control

Support

SSID Hidden

Support

Black list

Support

Cloud management

Support

NTP

Support

DHCP

Support

VPN

Support



Unleash High-Speed Connectivity: Z8105AX-M2-H Outdoor 5G CPE

Experience lightning-fast internet with the Z8105AX-M2-H. Enjoy seamless 5G/4G+WiFi6 connectivity for your outdoor adventures.


Powerful Performance: Dual-Core CPU

With an ARM Cortex-A53 dual-core CPU, the Z8105AX-M2-H ensures reliable performance for all your networking needs.


Secure and Versatile Networking: Feature-Rich Software

Benefit from customizable settings, VPN support, and more with the Z8105AX-M2-H's feature-rich software package.



-
