BE19000 1.8GHz Quad-Core CPU Unlock High Speed Long Range WiFi 7 Router Tri-Band 6Ghz WiFi 7 Wi-Fi Router 5g
BE19000 1.8GHz Quad-Core CPU Unlock High Speed Long Range WiFi 7 Router Tri-Band 6Ghz WiFi 7 Wi-Fi Router 5g Key attributes Model Number Z8803BE Place of Origin Guangdong, China Brand Name...
Description
Related standards and specifications:
order the 5G module also ,pls feel free to contact us online or send me an inquiry !
BE19000 1.8GHz Quad-Core CPU Unlock High Speed Long Range WiFi 7 Router Tri-Band 6Ghz WiFi 7 Wi-Fi Router 5g
Key attributes
| Model Number | Z8803BE | Place of Origin | Guangdong, China |
| Brand Name | Zbtlink | Power Source | 12V/3A |
| Antennas | 8 | Communication interface | wifi |
| Product Name | Router 5g Sim Card | WAN port | 1X2.5Gbps WAN |
| LAN port | 3X 1Gbps LAN port | SFP port | 1X 10Gbps high speed SFP port |
| WIFI | 2.4GHz& 5.8GHz& 6GHz | SIM card slot | 2*Nano SIM Card Slot |
| USB port | USB 2.0 Port | USB 2.0 Port | 2 |
| Power supply | 12V/3A | Chipset | MT7988AV |
Packaging and delivery
Selling Units: Single item
Single package size: 37X23X7 cm
Single gross weight: 2.000 kg
Specification
Z8803BE is a WIFI7 home router that can access the Internet through the WAN port or 5G mobile communication dial-up, and then
share the Internet through wireless WiFi 7 and wired LAN ports.It supports 2.4GHz, 5.8GHz and 6GHz.
share the Internet through wireless WiFi 7 and wired LAN ports.It supports 2.4GHz, 5.8GHz and 6GHz.
|
Model Number
|
Z8803BE-S
|
|
WIFI Protocal
|
802.11b/g/n/ac/ax/be
|
|
Support OpenWRT
|
Yes
|
|
Ethernet Ports
|
1X 2.5Gbps WAN, 3X 1Gbps LAN
|
|
SFP Port
|
1X 10Gbps high speed SFP port
|
|
Wifi
|
2.4G, 5.8G, 6G
|
|
Sim Card Slot
|
2x Nano SIM Card Slot
|
|
USB port
|
USB2.0
|
|
Antennas
|
(2.4G 5.8G wifi antenna +5G cellular)x 4, (6G wifi + 5G cellular) X 4
|
|
Actual Antennas
|
Looks 8 antenna cases, actual 2 antenna cables in one antenna case
|
|
Main Chip
|
MT7988AV+MT7976CN+MT7977BN+MT7977AN
|
|
Flash RAM
|
128MB NAND Flash, DDR4 1GB RAM
|
Related standards and specifications:
* 11n/g/b/a/ac/ax/be
* 3/802.3u/802.ab / 802.bz
* 1*USB2.0 bus standard
* SIM/USIM interface standards
* 5G Mobile Communication Standards
Main Feature
* Using MT7 988 AV main chip, ARM Cortext-A 73 Quad-core CPU, main frequency up to 1.8G HZ
* Built-in high-speed 1GB DDR4 chip, with 128 MB SPI NAND Flash
* Adopt AP routing network NIC chip MT799 6 AV , the maximum wireless rate is up to 19000Mbps
* 4G 5.8G 6G WIFI all come with 4 high-power FEMs to improve WIFI coverage
* 1 2.5Gbps WAN port, supports automatic flipping (Auto MDI/MDIX)
* 1 2.5Gbps LAN port, 2 1Gbps LAN ports, support automatic flip (Auto MDI/MDIX)
* 1 10Gbps high-speed SFP optical port, which can be used to connect high-speed optical port switches and other devices
* Support dual-mode dual-card 5G mobile communication function, support SA/NSA network
* Support "one-key flashing mode", that is, long press the reset button to enter the rescue flashing mode
* Support "one-click" MESH networking
* External high-gain WIFI antenna, 360-degree wireless signal without blind spots
* Built-in high-speed 1GB DDR4 chip, with 128 MB SPI NAND Flash
* Adopt AP routing network NIC chip MT799 6 AV , the maximum wireless rate is up to 19000Mbps
* 4G 5.8G 6G WIFI all come with 4 high-power FEMs to improve WIFI coverage
* 1 2.5Gbps WAN port, supports automatic flipping (Auto MDI/MDIX)
* 1 2.5Gbps LAN port, 2 1Gbps LAN ports, support automatic flip (Auto MDI/MDIX)
* 1 10Gbps high-speed SFP optical port, which can be used to connect high-speed optical port switches and other devices
* Support dual-mode dual-card 5G mobile communication function, support SA/NSA network
* Support "one-key flashing mode", that is, long press the reset button to enter the rescue flashing mode
* Support "one-click" MESH networking
* External high-gain WIFI antenna, 360-degree wireless signal without blind spots
Product Description
Packing & Delivery
FAQ
Q: Is Z8803BE a Tri-Band WiFi 7 Router?
A: Yes. Z8803BE is a high-performance WiFi 7 Router based on MT7988AV and MT7996AV, supporting 2.4GHz, 5.8GHz, and 6GHz with a
total wireless rate of up to 19000Mbps. Each band integrates 4× FEMs for enhanced range and throughput.
Q: What kind of 5G support does it provide?

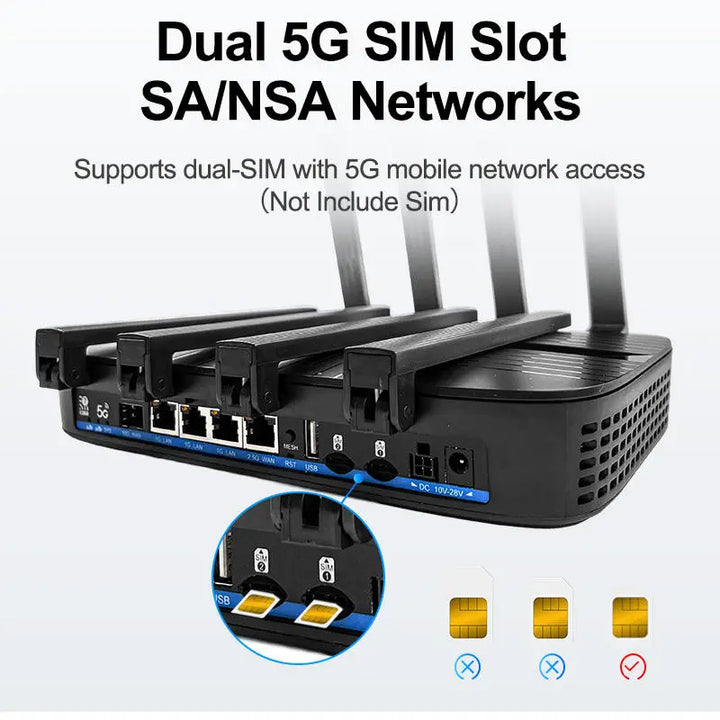

A: Z8803BE is a dual-SIM 5G CPE Router that supports both NSA and SA networks. It’s compatible with 5G NR global bands like
N1/N28/N41/N78/N79, making it suitable for Europe, Asia, Africa, Latin America, Oceania, and South America.
Q: Are Mesh and OpenWRT supported?
A: Yes. With one-click Mesh WiFi 7 networking and OpenWRT firmware support, it is perfect for flexible deployment and system
customization.
Q: What ports does the MT7988 Router include?

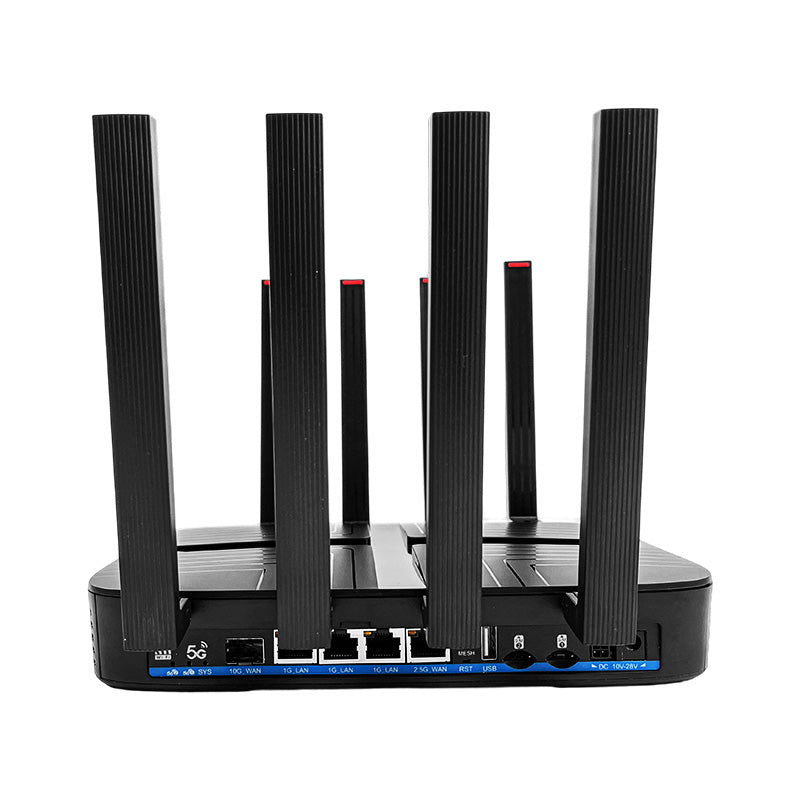

A: 1×2.5G WAN, 3×1G LAN, and 1×10G SFP port. All RJ45 ports support Auto MDI/MDIX for plug-and-play setup.
Q: Where can it be used?
A: Ideal for hotels, factories, vehicles, and remote areas needing high-speed 5G + WiFi 7 connectivity.
A: Yes. Z8803BE is a high-performance WiFi 7 Router based on MT7988AV and MT7996AV, supporting 2.4GHz, 5.8GHz, and 6GHz with a
total wireless rate of up to 19000Mbps. Each band integrates 4× FEMs for enhanced range and throughput.
Q: What kind of 5G support does it provide?
A: Z8803BE is a dual-SIM 5G CPE Router that supports both NSA and SA networks. It’s compatible with 5G NR global bands like
N1/N28/N41/N78/N79, making it suitable for Europe, Asia, Africa, Latin America, Oceania, and South America.
Q: Are Mesh and OpenWRT supported?
A: Yes. With one-click Mesh WiFi 7 networking and OpenWRT firmware support, it is perfect for flexible deployment and system
customization.
Q: What ports does the MT7988 Router include?
A: 1×2.5G WAN, 3×1G LAN, and 1×10G SFP port. All RJ45 ports support Auto MDI/MDIX for plug-and-play setup.
Q: Where can it be used?
A: Ideal for hotels, factories, vehicles, and remote areas needing high-speed 5G + WiFi 7 connectivity.
Supplier highlights:This supplier is a manufacturer and trader, offering overseas warehouse and quality control services, capable of full customization and design customization, with main sales countries being Brazil, the US, and Indonesia, and a positive review rate of 85.0%.
Warm Reminder
Pls note the published price doesn't support 5G SIM card ,if you need to use 5G sim card to dial up 5g internet , you need toorder the 5G module also ,pls feel free to contact us online or send me an inquiry !
Certifications
Valid from 08/01/2025 to 05/29/2030
The China Compulsory Certification (CCC) is a mandatory product conformity assessment system administered by the China National Certification and Accreditation Administration (CNCA). This certification ensures products meet national safety, quality, and environmental protection requirements, serving as a mandatory requirement for market entry in China. Established under Chinese legal frameworks, the CCC certification applies to 17 product categories, including electronic devices, automotive components, and children’s toys. Obtaining certification confirms compliance for imported or domestically distributed goods, mitigates regulatory risks, and enhances buyer confidence in the product’s adherence to China’s rigorous safety standards.
