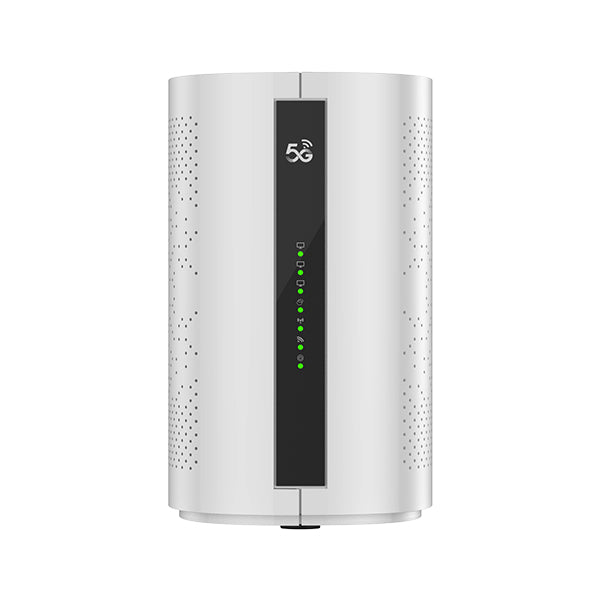

MT7981 Dual SIM 5G CPE AX3000 WiFi 6 - Z8105AX-M2-C

5G/4G + WiFi 6 dual connectivity — access the internet via mobile network or wired WAN port

AX3000 dual-band speeds — 600Mbps (2.4GHz) + 2400Mbps (5.8GHz) for blazing-fast wireless

Supports up to 128 concurrent devices — ideal for high-density home or office environments

M.2 slot + dual Nano SIM — flexible hardware expandability for diverse deployment needs

OpenWRT & ZBT OS support — full network customization with VPN, cloud management, and parental controls
Category Specifications
CPU ARM Cortex-A53 dual-core CPU, main frequency up to 1.3GHz
Interface
  • 1 × 1000/2500Mbps WAN Port
  • 4 × 10/100/1000Mbps LAN Ports
  • 1 × M.2 slot
  • 2 × Nano SIM Card Slot
Button Reset Button
External Power Supply
  • Power Adapter: Input 100-240V~ 50/60 Hz 0.6A
  • Output: 12V DC 2.5A
Environment
  • Operating Temperature: 0°C~40°C (32°F ~104°F)
  • Operating Humidity: 10%~90% non-condensing
  • Storage Humidity: 5%~90% non-condensing
Antenna 9pcs Internal High Gain Antennas
WhatsApp Contact
View details

Multi-Mode WAN Access with Automatic Failover

Supports both 5G/4G mobile network dial-up and a 1000Mbps/2.5G WAN port for wired broadband, with built-in WAN Failover to automatically switch connections and ensure uninterrupted internet access in any environment.


WiFi 6 Dual-Band with High-Capacity Concurrent Connections

Equipped with WiFi 6 (802.11ax) delivering 600Mbps on 2.4GHz and 2400Mbps on 5.8GHz (AX3000 total), supporting up to 128 simultaneous client connections. Nine internal high-gain antennas ensure wide coverage and stable signal strength throughout.



Powerful Hardware Platform with Highly Customizable Software

Powered by an ARM Cortex-A53 dual-core 1.3GHz CPU (MT7981), featuring an M.2 expansion slot and dual Nano SIM card slots. Supports both OpenWRT and ZBT OS for flexible network customization, plus enterprise-grade features including VPN, cloud management, parental controls, and more.
