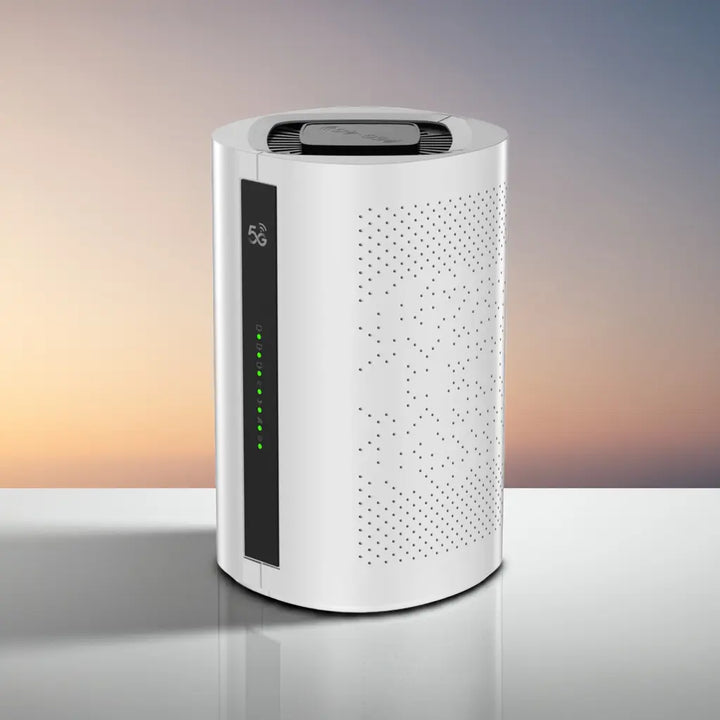

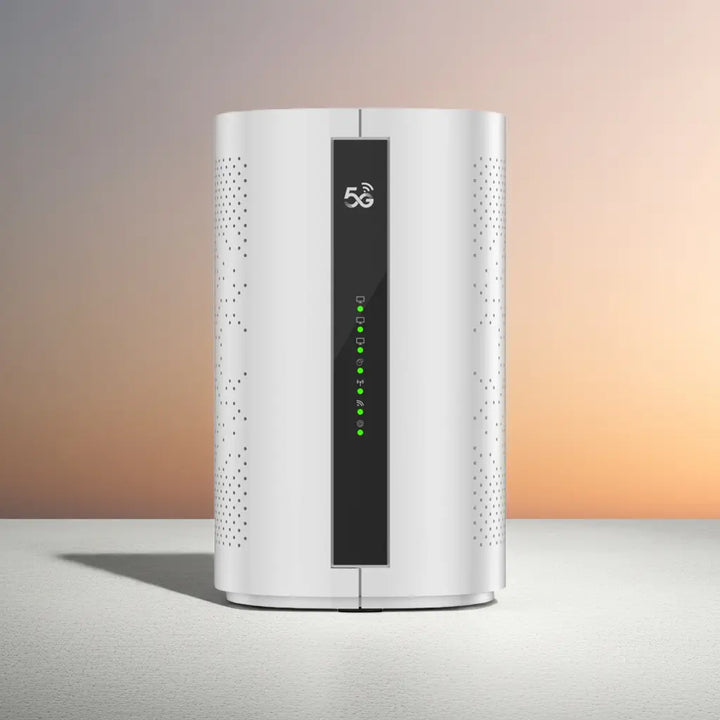

Z8105AX-M.2-C_front view
Z8105AX-M.2-C_side view
Z8105AX-M.2-C_main view
Z8105AX-M.2-C_main accessories

MT7981 Dual SIM 5G CPE AX3000 CPE Router WiFi6

Model: Z8105AX-M.2-C
CPU:Dual core, 1.3GHz Frequency
RAM: 256MB DDR3
FLASH:128MB NAND Flash
Software :openWRT&ZBT OS

Description

IFrame

 Z8105AX-M2-C is a 5G/4G+WiFi6 CPE router, which can access the Internet through 5G/4G mobile communication dial-up or 1000Mbps WAN port, and then share the Internet network through wireless WiFi 6 and 1000Mbps/2500Mbps wired LAN.

Adopt MT7981B Chipset solutionARM Cortext-A53 dual core CPU, Main frequency: 1.3GHzAdopt independent WiFi6 chip MT7976CNWireless Rate: 3000Mbps1* Wan + 3*Lan Gigabit PortsDual Sim Card SlotSupport "one key" MESH networkingSupport OpenWrt Firmware V21.02

HARDWARE FEATURES

CPU

ARM Cortex-A53 dual-core CPU, main frequency up to 1.3GHZ

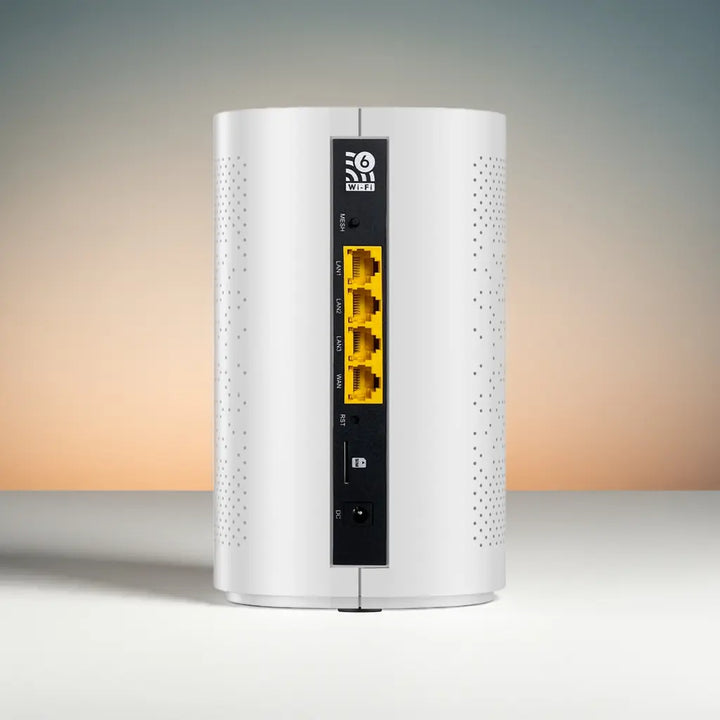

Interface

1000/2500Mbps WAN Port
3 *10/100/1000 Mbps LAN Ports

1 * M.2 slot
2 * Nano SIM Card Slot

Button

Reset Button

External Power Supply

Power Adapter: Input Power 100-240v~50/60 Hz 0.6A
Output parameter 12VDC 2.5A

Environment

Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Antenna

9×Internal High Gain Antennas

WIRELESS FEATURES

Wireless Standards

IEEE 802.11a/n/ac/ax 5.8GHz, IEEE 802.11b/g/n/ac/ax 2.4GHz

Frequency

2.4GHz and 5.8GHz

Signal Rate

600Mbps at 2.4 GHz, 2400Mbps at 5.8GHz

Wi-Fi Max.Associated Clients

128

WAN Failover

Yes

Wireless Security

WPA/WPA2, WPA-PSK

SOFTWARE FEATURES

Channel adjustment

Support

Power adjustment

Support

Parent control

Support

SSID Hidden

Support

Black list

Support

Cloud management

Support

NTP

Support

DHCP

Support

VPN

Support


9 * PcS built-in high gain WlFl antennaWireless signal 360 degrees without dead corners,Built in high gain antenna Strong ability to penetrate walls fast enough! Wide enough!


Experience Lightning-Fast Connectivity with the Z8105AX-M2-C 5G CPE Router WiFi6

Unleash Next-Generation Connectivity

Step into the future of connectivity with the Z8105AX-M2-C 5G CPE Router WiFi6. This innovative router combines the power of 5G/4G+ technology with WiFi6 capabilities to deliver lightning-fast internet speeds and unparalleled performance. Whether you're streaming high-definition content, gaming online, or conducting video conferences, experience seamless connectivity like never before.


Robust Hardware, Enhanced Performance

Powered by a dual-core ARM Cortex-A53 CPU with a main frequency of up to 1.3GHz, the Z8105AX-M2-C ensures smooth and efficient operation for all your networking needs. With a comprehensive range of interfaces including 1000/2500Mbps WAN Port, three 10/100/1000 Mbps LAN Ports, and dual Nano SIM Card Slots, this router offers versatile connectivity options for your home or office. Plus, with nine internal high-gain antennas, enjoy extended coverage and superior signal strength throughout your space.


Advanced Software Features for Total Control

Take control of your network with the advanced software features of the Z8105AX-M2-C. From channel and power adjustments to parental control and blacklisting, customize your network settings to suit your specific requirements. Benefit from features like SSID hiding and cloud management for added security and convenience. Plus, with support for VPN and DHCP, ensure a secure and stable connection for all your devices.


RAM:256MB DDR3Flash:128MBSupport for accessFull Gigabit wired network


-
