WE826-Q-H QCA9531

Name: WE826-Q-H QCA9531
Brand: ZBTWIFI
Availability: OutOfStock

QCA9531 Wireless Platform: Powered by a MIPS 24KC processor at 550MHz with integrated QCA9531-BL3A 2.4G Wi-Fi, delivering stable and efficient outdoor wireless performance.

European & Asian 4G Coverage: Supports LTE-FDD, LTE-TDD, WCDMA, and GSM/GPRS/EDGE bands optimized for Europe, Asia, and Africa, ensuring broad regional compatibility.

PoE-Powered Installation: Single 100Mbps LAN port with PoE power supply support enables clean and flexible outdoor installation without a separate power adapter.

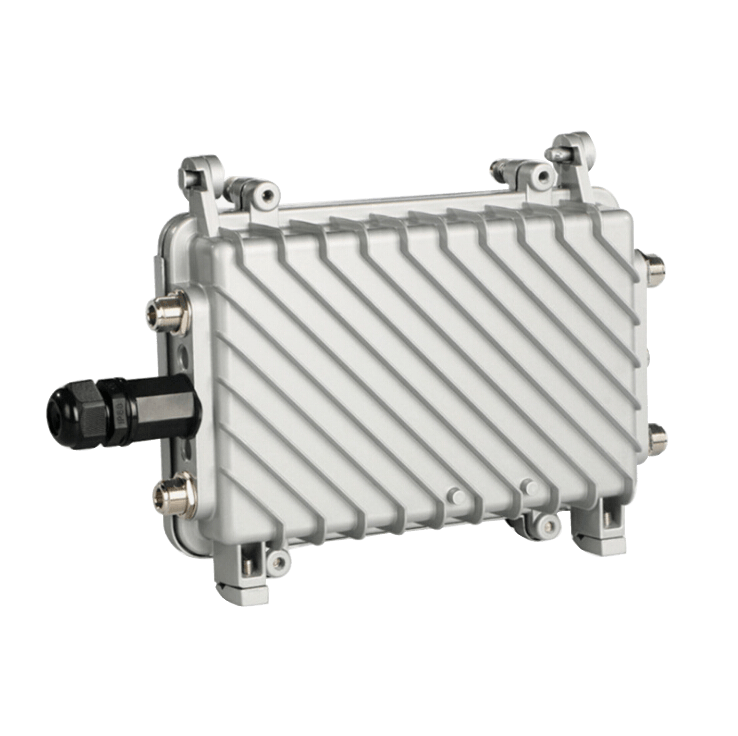

Rugged Outdoor Design: IP-rated weatherproof enclosure with four detachable N-port antennas, built for reliable long-range 4G and Wi-Fi coverage in demanding outdoor environments.

KEY SPECIFICATIONS
CPU	QCA9531 \| MIPS 24KC \| 550MHz Wi-Fi Chipset: QCA9531-BL3A (2.4G integrated)
Protocol	IEEE 802.11n/g/b \| Max 300Mbps
FLASH / RAM	DDR2 128MB \| Nor Flash 16MB
Interface	1 × 100Mbps LAN Port (PoE powered)
4G Bands	LTE-FDD: B1/B3/B7/B8/B20 LTE-TDD: B38/B40/B41 WCDMA: B1/B5/B8 GSM/GPRS/EDGE: B2/B3/B5/B8
SIM Card Slot	1 × SIM Card Slot
Antenna	4 × Detachable N-Port Antennas

WhatsApp Contact

View details

Software Features

General Specifications
Model	WE826-Q-H
Wi-Fi Standard	IEEE 802.11n/g/b \| Max 300Mbps
4G Bands	LTE-FDD: B1/B3/B7/B8/B20 LTE-TDD: B38/B40/B41 WCDMA: B1/B5/B8 GSM/GPRS/EDGE: B2/B3/B5/B8
Coverage	European / Asia / Africa
Storage	DDR2 128MB \| Nor Flash 16MB

Hardware Specs
CPU	QCA9531 \| MIPS 24KC \| 550MHz Wi-Fi Chipset: QCA9531-BL3A (2.4G integrated)
FLASH / RAM	DDR2 128MB \| Nor Flash 16MB
SIM Card Slot	1 × SIM Card Slot
4G Port	1 × mini-PCIe Slot
Interface	1 × 100Mbps LAN Port (PoE powered)
Button	1 × Reset Button

Wireless & Network
Protocol	IEEE 802.11n/g/b
Wi-Fi Rate	MAX 300Mbps
4G Bands	LTE-FDD: B1/B3/B7/B8/B20 LTE-TDD: B38/B40/B41 WCDMA: B1/B5/B8 GSM/GPRS/EDGE: B2/B3/B5/B8
Antenna	4 × Detachable N-Port Antennas
