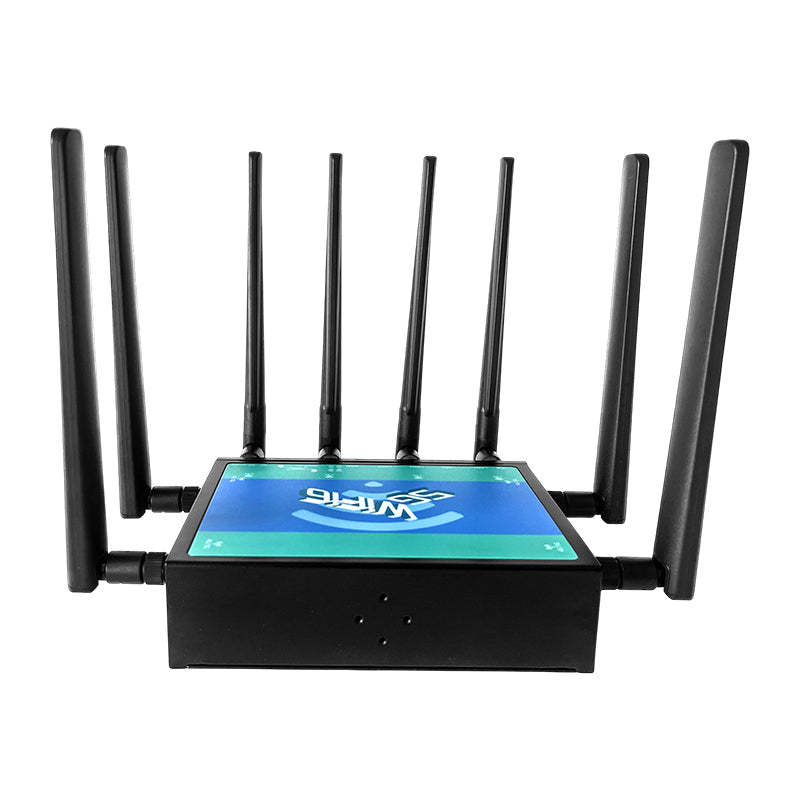

Wi-Fi6 5G Router For Car Bus Vehicle Using

Model: Z8106AX-M2-T
CPU: MTK7981B, Dual core, 1.3GHz Frequency
RAM: 256 DDR3
FLASH:128MB NAND Flash
Software :openWRT & ZBT OS

Description

Z8106AX-M2-T is a 5G/4G+WiFi6 CPE router, which can access the Internet through 5G/4G mobile communication dial-up or 1000Mbps WAN port, and then share the Internet network through wireless WiFi 6 and 1000Mbps/2.5G wired LAN.

CPU 1.3GHz ,MT7981 Main Chipset128MB Nand Flash+256MB DDR3 RAM2.5G WAN Port , full Gigabit LAN Ports
Technical Support

HARDWARE FEATURES

CPU

ARM Cortex-A53 dual-core CPU, main frequency up to 1.3GHZ

Interface

1 * 1000/2500Mbps WAN Port
4 * 10/100/1000 Mbps LAN Ports

1 * M.2 slot
2 * Nano SIM Card Slot

1 * USB 3.0 Port

Button

Reset Button

External Power Supply

Power Adapter: Input Power 100-240v~50/60 Hz 0.6A
Output parameter 12V DC 2.5A

Wide Power Range: 9V~32V

Environment

Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Antenna

9×Detachable High Gain Antennas

WIRELESS FEATURES

Wireless Standards

IEEE 802.11a/n/ac/ax 5.8GHz, IEEE 802.11b/g/n/ac/ax 2.4GHz

Frequency

2.4GHz and 5.8GHz

Signal Rate

600Mbps at 2.4GHz, 2400Mbps at 5.8GHz

Wi-Fi Max.Associated Clients

128

WAN Failover

Yes

Wireless Security

WPA/WPA2, WPA-PSK

SOFTWARE FEATURES

Channel adjustment

Support

Power adjustment

Support

Parent control

Support

SSID Hidden

Support

Black list

Support

Cloud management

Support

NTP

Support

DHCP

Support

VPN

Support


3000Mbps wireless Speed 2.4G Speed:600Mbps ,5.8G Wifi Speed :2400Mbps3000Mbps

Experience Seamless Connectivity on the Move

Discover the power of uninterrupted internet access with the Z8106AX-M2-T Wi-Fi6 5G Router designed for vehicles. Stay connected wherever your journey takes you with this advanced CPE router.


High-Speed Performance for On-the-Go Connectivity

Powered by an MTK7981B dual-core CPU running at 1.3GHz frequency and 256 DDR3 RAM, the Z8106AX-M2-T ensures lightning-fast performance for all your internet needs on the move. With 128MB NAND Flash memory, store your data securely while enjoying high-speed internet access.


Advanced Features for Enhanced Connectivity

Featuring a range of interface options including WAN port, LAN ports, M.2 slot, Nano SIM card slots, and USB 3.0 port, this router offers unparalleled flexibility in network connectivity. Plus, with features like WAN failover, VPN support, and cloud management, customize your browsing experience while ensuring security and reliability.

Supports 126+ Clients onlineSpecial using for Bus , Car ,RV Camping , Yacht, Trucks...ectApplications

-
