Z2106AX MT7621A

Name: Z2106AX MT7621A
Brand: ZBTWIFI
Availability: OutOfStock

MT7621A Dual-Core Platform: Powered by a MIPS dual-core processor at 880MHz with MT7905D and MT7975D Wi-Fi chipsets, delivering fast and stable dual-band wireless performance.

Dual-Band Wi-Fi AC1800: Simultaneous 2.4GHz and 5GHz coverage with a combined throughput of 1800Mbps, supporting high-speed connections for multiple devices at once.

Full Gigabit Connectivity: Equipped with one Gigabit WAN port and four Gigabit LAN ports, providing high-throughput wired networking for home and office environments.

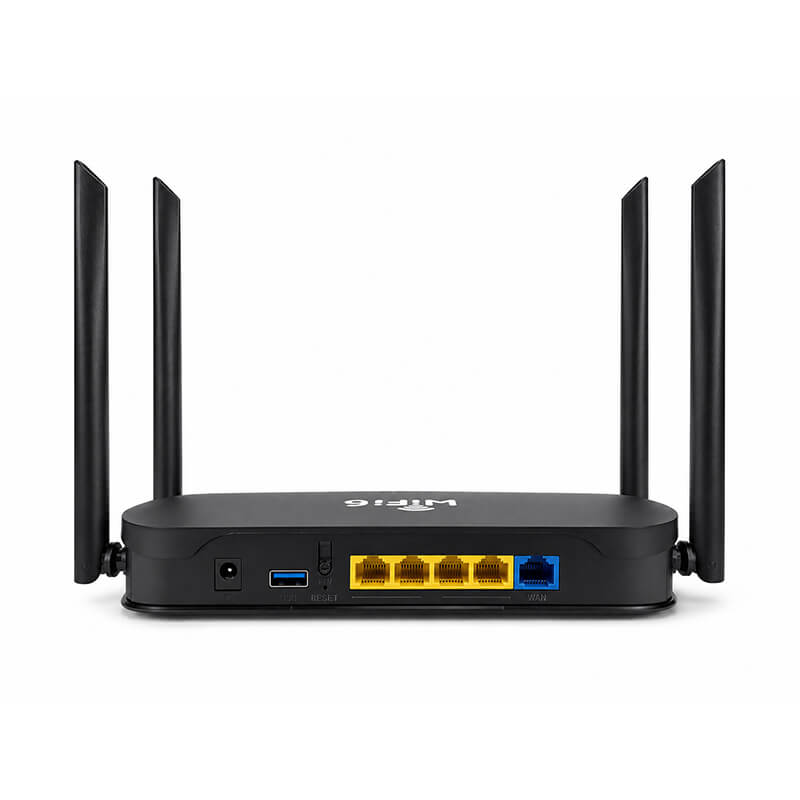

Versatile Port & Antenna Design: Features a DC power port, USB 3.0 port, Reset and FN multifunction button, plus four external omnidirectional antennas for broad dual-band coverage.

KEY SPECIFICATIONS
CPU	MT7621A \| MIPS Dual Core \| 880MHz Wi-Fi Chipset: MT7905D + MT7975D
Protocol	IEEE 802.11n/g/b/a/ac \| Total 1800Mbps
FLASH / RAM	DDR3 256MB \| NAND Flash 128MB
Interface	1 × 1000Mbps WAN Port 4 × 1000Mbps LAN Ports
Port	1 × DC 5.0×2.1MM \| 1 × USB 3.0
Button	1 × Reset Button \| 1 × FN Multifunction Key
Antenna	2 × External Omni 5dBi 2.4GHz 2 × External Omni 5dBi 5.8GHz

WhatsApp Contact

View details

Software Features

General Specifications
Model	Z2106AX
Wi-Fi Standard	IEEE 802.11n/g/b/a/ac \| Total 1800Mbps
Storage	DDR3 256MB \| NAND Flash 128MB
Antenna	2 × External Omni 5dBi 2.4GHz 2 × External Omni 5dBi 5.8GHz
Ethernet	1 × 1000Mbps WAN \| 4 × 1000Mbps LAN

Hardware Specs
CPU	MT7621A \| MIPS Dual Core \| 880MHz Wi-Fi Chipset: MT7905D + MT7975D
FLASH / RAM	DDR3 256MB \| NAND Flash 128MB
Interface	1 × 1000Mbps WAN Port 4 × 1000Mbps LAN Ports
Port	1 × DC 5.0×2.1MM \| 1 × USB 3.0
Button	1 × Reset Button \| 1 × FN Multifunction Key

Wireless & Network
Protocol	IEEE 802.11n/g/b/a/ac
Wi-Fi Rate	Total 1800Mbps
Ethernet	1 × 1000Mbps WAN \| 4 × 1000Mbps LAN
Antenna	2 × External Omni 5dBi 2.4GHz 2 × External Omni 5dBi 5.8GHz
