ZBT AC2101 — Enterprise-Grade AC Controller with Full PoE Support

The AC2101 is a high-performance AC controller designed for home and commercial deployments. It centrally manages and controls multiple AP devices while delivering full Gigabit connectivity and PoE power to connected devices — all in a compact, reliable form factor.

Key Features

• MT7621A Chipset: MIPS dual-core CPU running at up to 880 MHz for stable, high-throughput performance
• 256MB DDR3 RAM + 16MB Nor Flash: Ample memory for smooth multi-AP management

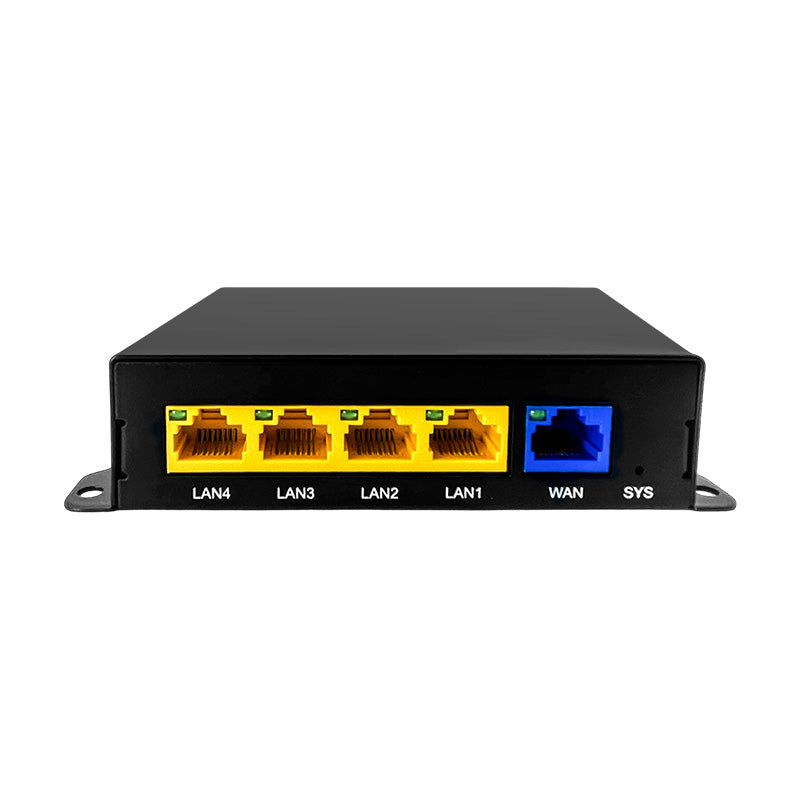

• 1× WAN + 4× LAN Full Gigabit Ports: All ports support 1000Mbps with Auto MDI/MDIX auto-flip
• 4-Port PoE-PSE (IEEE 802.3af/at): Powers up to 4 PoE-PD devices simultaneously, up to 30W per port
• One-Key Flashing Mode: Long-press reset button to enter rescue flashing mode for easy firmware recovery

Power Supply

• Operating Voltage: 47–52V (rated 48V)
• Working Current: 0.15–1.3A (rated 0.2A @ VIN=48V)
• Recommended: ZBT standard 52V 1.5A power adapter (included)

Environmental Requirements

• Operating Temperature: 0°C to 40°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 10%–90% RH (no condensation)

Physical

• Weight: 0.54 KG
• Dimensions (L×W×H): 109mm × 83mm × 29mm
• Color: Black

Default Login

• Default IP: 192.168.2.1
• Username / Password: admin / admin

In the Box

• AC2101 Unit × 1
• Cat5e Network Cable × 1
• 52V 1.5A Power Adapter × 1
• User Manual × 1
