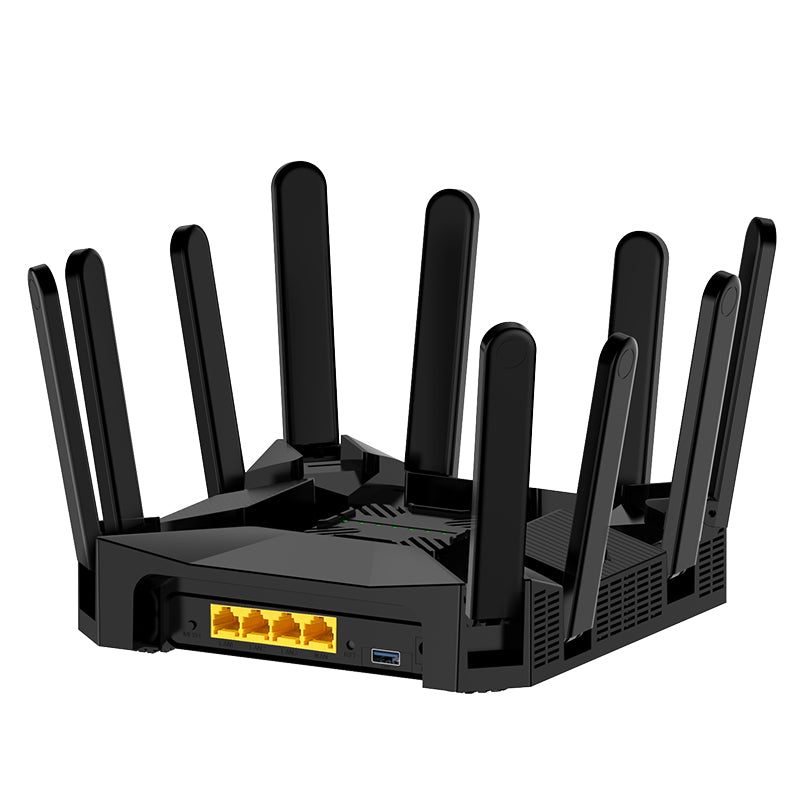

ZBT WiFi 6 Router | 3000Mbps Dual-Band | 2.5G LAN | MT7981B | OpenWRT - Z8103AX-G-2.5G

2.5Gbps PHY LAN Port: Future-proof wired connectivity supporting IEEE 802.3bz, fully unleashing next-gen NAS, switches, and multi-gig network speeds.

WiFi 6 AX3000 Dual-Band: MT7976CN delivers 574Mbps @ 2.4GHz + 2400Mbps @ 5.8GHz with OFDMA, MU-MIMO, and 4096-QAM for ultra-efficient high-density wireless.

MT7981B Dual-Core 1.3GHz + 256MB DDR3: Reliable enterprise-grade processing for smooth multi-device routing and concurrent high-throughput workloads.

OpenWRT Compatible: Full support for ZBT OS and OpenWRT firmware, giving developers and integrators complete customization flexibility.

Compact & Versatile Design: 204 × 182.2 × 75.48mm form factor suits home, office, and enterprise deployments without cellular module dependency.
Category Specifications
CPU MT7981B, ARM Cortex-A53 Dual-Core, up to 1.3GHz
WiFi Chip MT7976CN, IEEE 802.11n/g/b/a/ac/ax, up to 3000Mbps
RAM DDR3 256MB
Flash SPI NAND Flash 128MB (NOR Flash 16MB optional)
2.5G LAN Port 1 × 2.5Gbps, Auto MDI/MDIX, IEEE 802.3 / 802.3u / 802.3ab / 802.3bz
External Power Supply Input: 9–15V DC / Rated: 12V / 1A
Environment
  • Operating Temperature: 0℃–40℃
  • Storage Temperature: -40℃–70℃
  • Working Humidity: 10%–90% RH non-condensing
  • Storage Humidity: 5%–90% RH non-condensing
Dimensions 204 × 182.2 × 75.48 mm | Color: Black
SKU: Z8103AX-G-2-5G
WhatsApp Contact
View details

WiFi 6 Performance Excellence

Experience blazing-fast wireless speeds up to 3000Mbps with dual-band coverage, powered by the MT7976CN WiFi 6 chipset. The 2.5Gbps LAN port ensures your wired connections match next-generation network demands, eliminating bottlenecks for bandwidth-intensive applications.

Enterprise-Grade Reliability

Built on the MT7981B ARM Cortex-A53 dual-core processor with 256MB DDR3 RAM, the Z8103AX-G-2.5G delivers stable, consistent performance across dozens of simultaneous connections. OFDMA and MU-MIMO technology optimize traffic handling for multi-device enterprise deployments.

OpenWRT Flexibility & Future-Ready Design

Full OpenWRT and ZBT OS compatibility gives you complete control over firmware customization and network management. Future-proof your infrastructure with WiFi 6 standards and 2.5Gbps connectivity, ready for evolving enterprise and IoT ecosystems.
