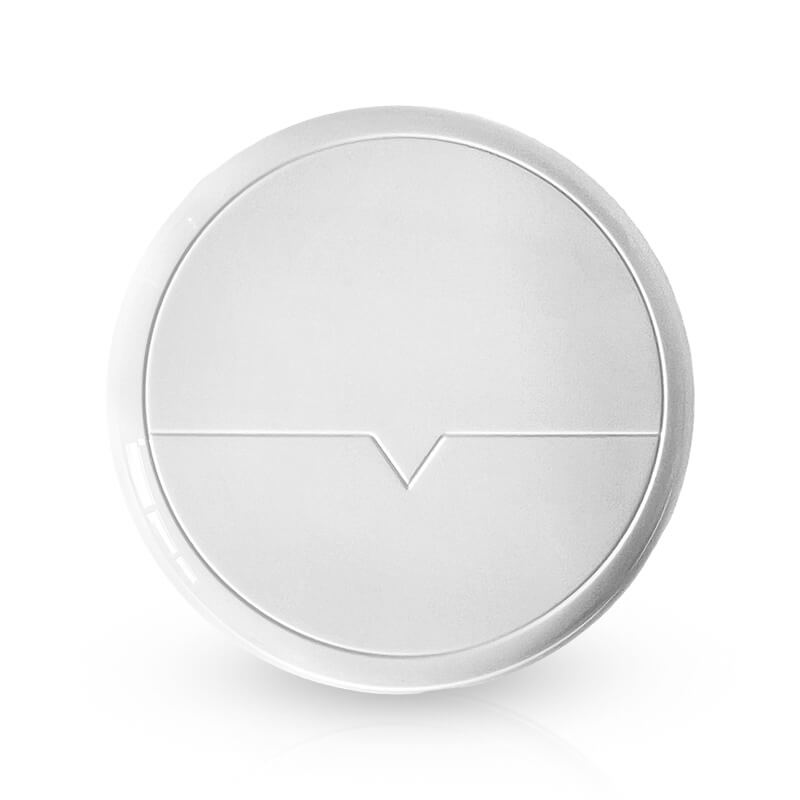

AP8103 MT7981B

Name: AP8103 MT7981B
Brand: ZBTWIFI
Availability: OutOfStock

MT7981B Dual-Core Platform: Powered by an ARM Cortex-A53 dual-core processor with MT7976CN Wi-Fi chipset, delivering stable and efficient wireless performance for ceiling-mount deployments.

Dual-Band Wi-Fi AX2975: Simultaneous 2.4GHz and 5.8GHz coverage with Wi-Fi 6 support, providing high-throughput connectivity for dense client environments.

PoE-Powered Installation: Supports 48V PoE input via RJ45 port, enabling clean and flexible ceiling installation without a separate power adapter.

Enterprise-Grade Hardware: Equipped with DDR3 RAM, SPI NAND Flash, and four internal FPC antennas for reliable coverage and robust performance in demanding indoor environments.

KEY SPECIFICATIONS
CPU	MT7981B \| ARM Cortex-A53 Dual Core \| 1.3GHz Wi-Fi Chipset: MT7976CN
Protocol	IEEE 802.11n/g/b/a/ac/ax
Wi-Fi Rate	2.4GHz: MAX 573Mbps 5.8GHz: MAX 2402Mbps \| Total 2975Mbps
FLASH / RAM	DDR3 256MB \| SPI NAND Flash 128MB Nor Flash 16MB (option)

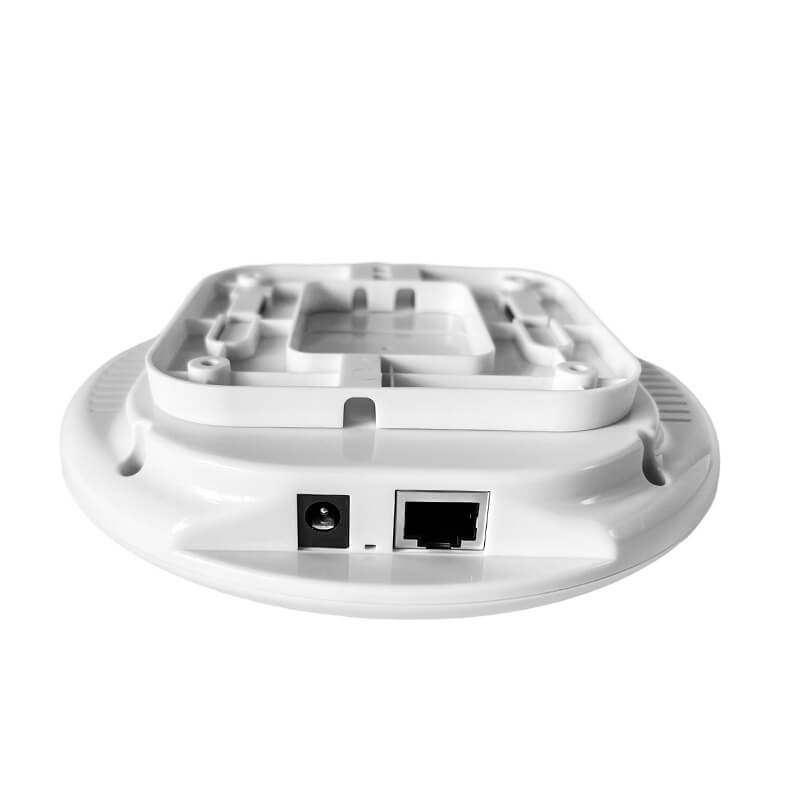

Interface	1 × POE Port 48V 1 × DC 5.5×2.1MM Port

WhatsApp Contact

View details

Software Features

General Specifications
Model	AP8103
Wi-Fi Standard	IEEE 802.11n/g/b/a/ac/ax
Wi-Fi Rate	2.4GHz: MAX 573Mbps 5.8GHz: MAX 2402Mbps \| Total 2975Mbps
FLASH / RAM	DDR3 256MB \| SPI NAND Flash 128MB Nor Flash 16MB (option)
Antenna	4 × Internal FPC Antennas

Hardware Specs
CPU	MT7981B \| ARM Cortex-A53 Dual Core \| 1.3GHz Wi-Fi Chipset: MT7976CN
FLASH / RAM	DDR3 256MB \| SPI NAND Flash 128MB Nor Flash 16MB (option)
Interface	1 × POE Port 48V
Port	1 × DC 5.5×2.1MM
Button	1 × Reset Button
Antenna	4 × Internal FPC Antennas

Wireless & Network
Protocol	IEEE 802.11n/g/b/a/ac/ax
Wi-Fi Rate	2.4GHz: MAX 573Mbps 5.8GHz: MAX 2402Mbps \| Total 2975Mbps
Total Wi-Fi Speed	2975Mbps (AX2975)
Antenna	4 × Internal FPC Antennas
Ethernet	1000Mbps
Power	POE 48V \| DC 5.5×2.1MM
