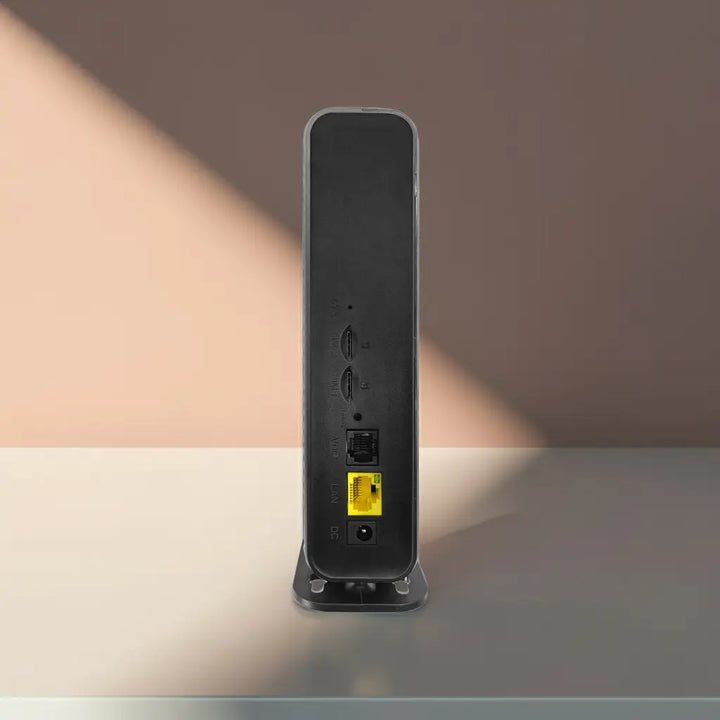

CPE5001-side view
CPE5001-front view

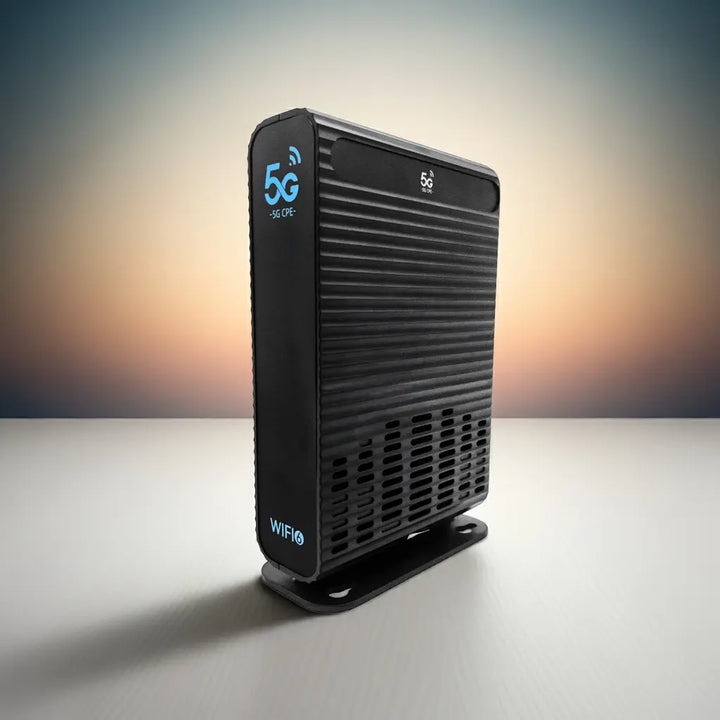

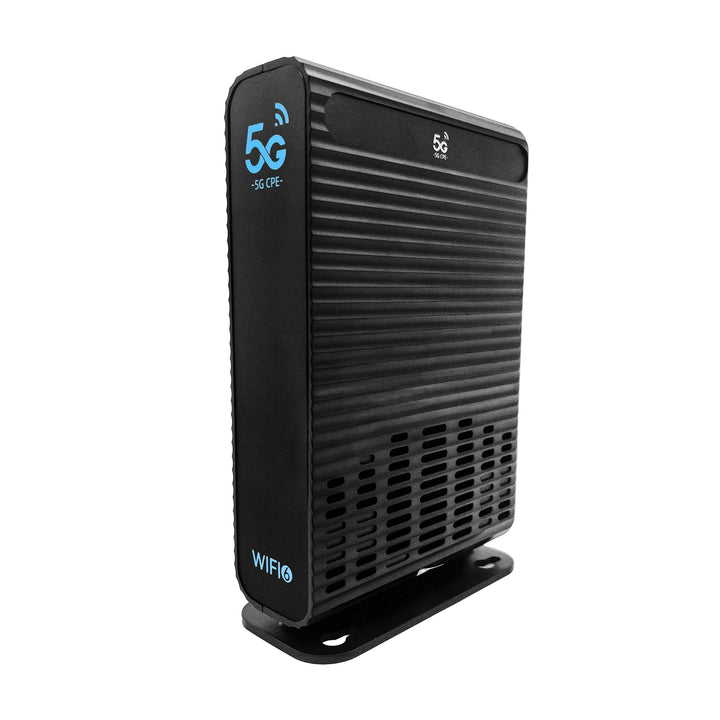

CPE5001-main view

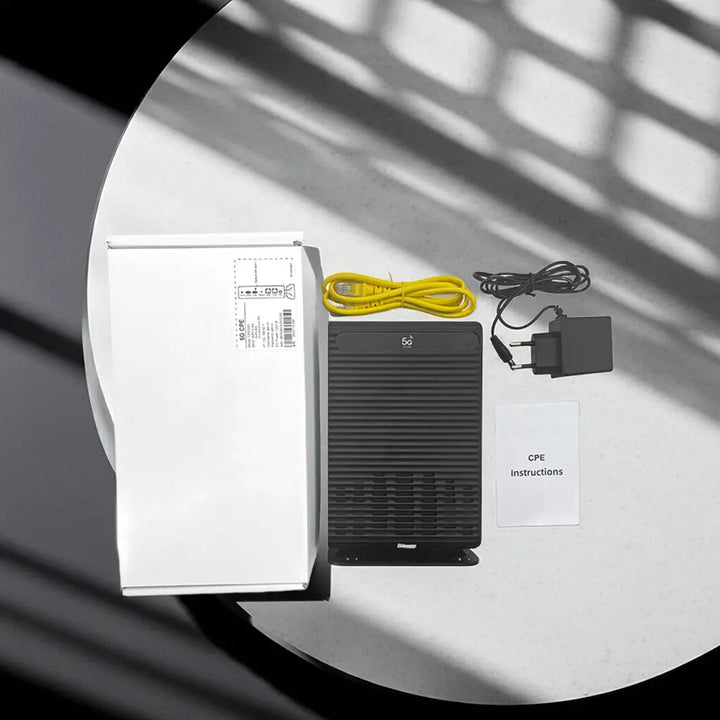

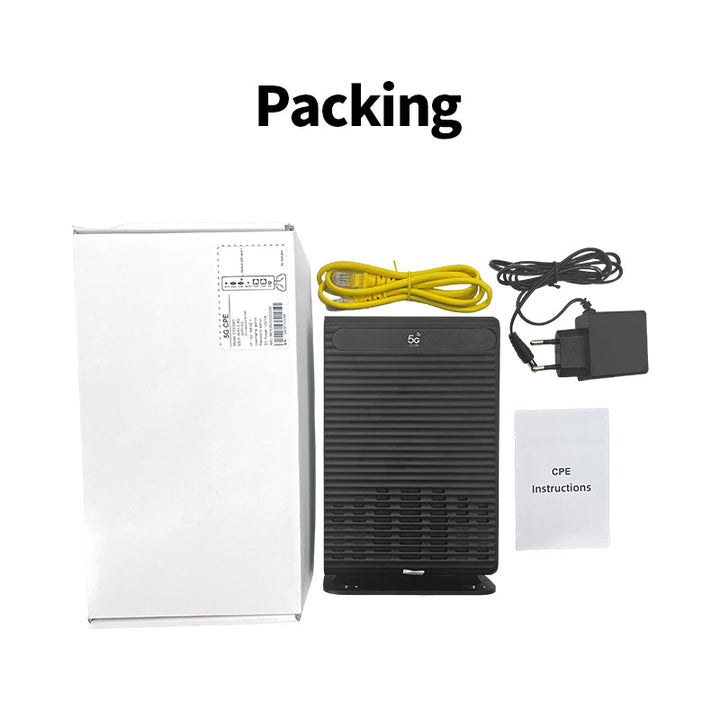

CPE5001-main accessories

Built-In Antenna 4G 5G LTE WIFI Router 2.4G 5.8G Modem SIM Card Cellular CPE Home Use 1000mbps Max LAN Data Networking Device

Model : CPE5001
CPU:RG500U
Software :Openwrt &ZBT OS

Description
Intelligent wireless access router Dual-band WiFi6 CPE

CPE5001 is a home 5G CPE communication device. When you insert a phone card and power it on, you can automatically dial up 5G to access the Internet, and then share the network with smart terminals through wireless WIFI or wired network ports.

Support dual sim card slotsupport SIM/USIM

HARDWARE FEATURES

CPU

RG500U

Interface

1 * RJ11 Port (Support VOIP)
1 *10/100 Mbps LAN Ports

2 * SIM Card Slot

Button

Reset Button

External Power Supply

Power Adapter: Input Power 100-240v~50/60 Hz 0.6A
Output parameter 12VDC 1A

Environment

Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Antenna

6* high-gain omnidirectional 5G mobile antennas

1* high-gain omnidirectional 2.4 G WIFI antenna

1* high-gain omnidirectional 5.8 G WIFI antenna

SOFTWARE FEATURES

WAN Type

PPPoE.Dynamic IP. Static IP

Port Forwareding

Support

Static Router

Support

System Log

Support

Parent control

Support

SSID Hidden

Support

Black list

Support

Cloud management

Support

NTP

Support

DHCP

Support

VPN

Support
