Z8113AX-B

MT7981B Dual-Core Platform: Powered by an ARM Cortex-A53 dual-core processor at 1.3GHz with MT7976CN Wi-Fi chipset, delivering high-performance dual-band Wi-Fi 6 with stable and responsive connectivity.

Dual-Band Wi-Fi AX2975: Simultaneous 2.4GHz and 5.8GHz Wi-Fi 6 with a combined throughput of 2975Mbps, supporting fast and reliable connections for multiple devices at once.

OTT-Ready Storage: DDR3 256MB RAM with SPI NAND Flash 128MB, plus OTT variant with eMMC Flash/RAM 128GB for expanded media storage and streaming applications.

Full Connectivity Suite: Equipped with Gigabit WAN and LAN ports, DC power, USB 3.0, HDMI output, Reset and Mesh buttons, and four external antennas for broad dual-band coverage.
KEY SPECIFICATIONS
CPU MT7981B | ARM Cortex-A53 Dual Core | 1.3GHz
Wi-Fi Chipset: MT7976CN
Wi-Fi Rate 2.4GHz: MAX 573Mbps
5.8GHz: MAX 2402Mbps | Total 2975Mbps
FLASH / RAM DDR3 256MB | SPI NAND Flash 128MB
OTT: eMMC Flash/RAM 128GB
Interface 1 × 1000Mbps WAN Port
1 × 1000Mbps LAN Port

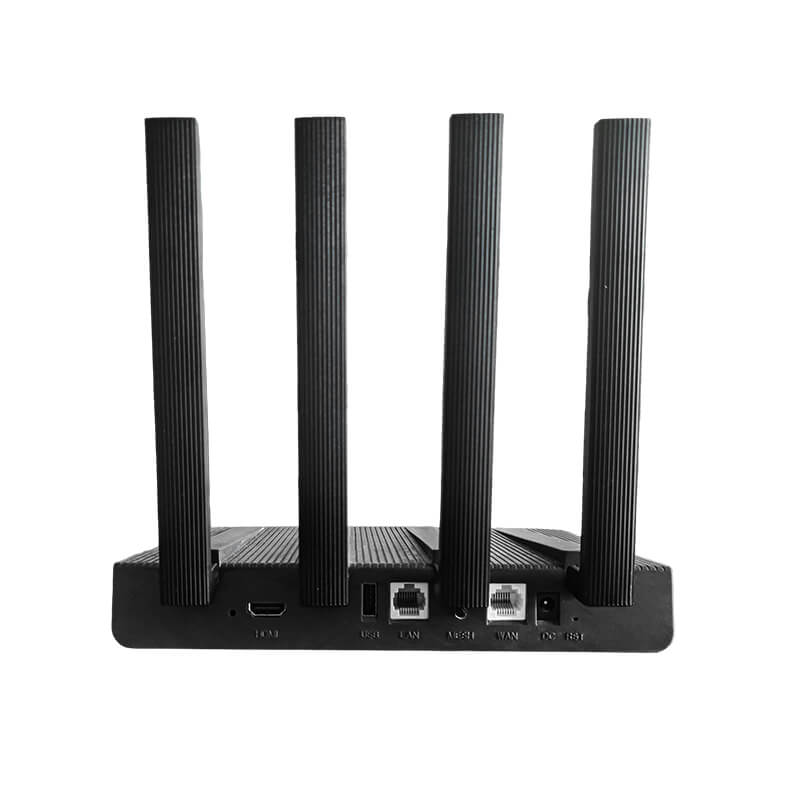

Port 1 × DC 5.5×2.1MM | 1 × USB 3.0 | 1 × HDMI
WhatsApp Contact
View details
General Specifications
Model Z8113AX-B
Wi-Fi Standard IEEE 802.11n/g/b/a/ac/ax
Antenna 4 × External Antennas
OS OpenWrt
Hardware Specs
Chipset MT7981B | ARM Cortex-A53 Dual Core | 1.3GHz
Button 1 × Reset Button | 1 × Mesh Button
Frequency 2.4GHz & 5.8GHz Dual Band
Wireless & Network
WAN 1 × 1000Mbps WAN Port
LAN 1 × 1000Mbps LAN Port
Power DC 5.5×2.1MM

    Product Practical Operation
