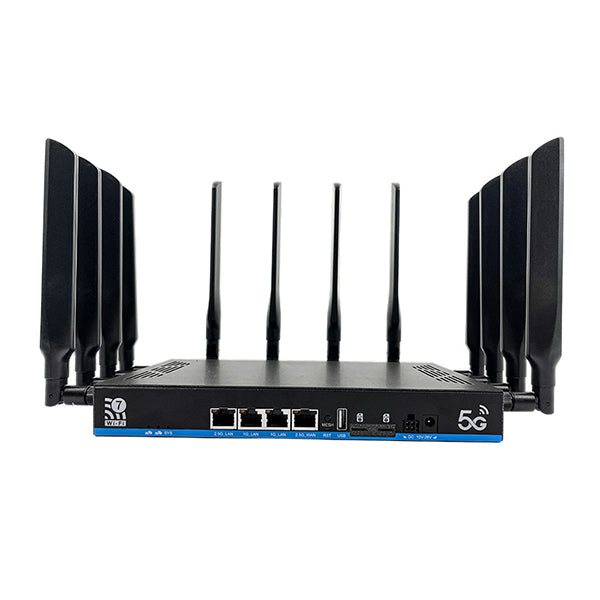

Z8806BE-M2-DS-T WiFi 7 Dual-Mode Dual-SIM 5G Router

Innovative Technology | High-Speed Transmission | Enterprise-Grade Stability

Dual-Mode 5G Connectivity: Supports NSA/SA 5G networks for fast, stable global access across diverse network environments.

WiFi 7 Technology: Delivers wireless speeds up to 19,000Mbps for lightning-fast, seamless connectivity.

Multi-Gigabit Port Design: Features 1 x 2.5Gbps WAN port, 1 x 2.5Gbps LAN port, and 2 x 1Gbps LAN ports to meet high-bandwidth demands.

Dual SIM Design: Supports simultaneous dual SIM operation with load balancing for uninterrupted connectivity.

Powerful ARM Cortex-A73 Quad-Core Processor: Optimizes data transmission and network performance for enterprise-grade applications.

360° Omnidirectional WiFi Coverage: Equipped with 4 high-power FEM antennas to eliminate signal dead zones and deliver comprehensive network coverage.

Hardware Watchdog Function: Automatically monitors router system health for long-term stable operation.

One-Touch Recovery Mode: Press and hold the reset button to quickly restore the router to normal operation, minimizing downtime.

Suitable Scenarios:

Home: High-speed internet access supporting simultaneous connections for multiple devices.

Office: Stable enterprise-grade networking meeting high-traffic and multi-tasking demands.

Enterprise: Seamless connectivity and robust processing power supporting large-scale device access.

Remote Monitoring: Comprehensive WiFi coverage ideal for monitoring centers or large facilities.

Key Advantages and Features

1). Utilizes MT7988AV main chip with ARM Cortex-A73 quad-core CPU, clocked at up to 1.8GHz
2). Built-in high-speed 1GB DDR4 memory with 128MB SPI NAND flash storage
3). Incorporates MT7996AV AP router network NIC chip, delivering maximum wireless speeds up to 1900Mbps
4). 2.4GHz, 5.8GHz, and 6GHz Wi-Fi bands each equipped with 4 high-power FEMs to enhance Wi-Fi coverage
5). 1 x 2.5Gbps WAN port with auto-MDI/MDIX support
6). 3 x 1Gbps LAN ports with auto-MDI/MDIX support
7). 1 x 10Gbps high-speed SFP optical port for connecting to high-speed optical switches and other devices
8). IEEE 802.11n/g/b/a/ac/ax/be
9). IEEE 802.3/802.3u/802.ab/802.bz
10). Supports 20MHz, 40MHz, modulation modes 4096-QAM/OFDMA, 4Tx4R mu-MIMO
11). Supports load balancing between two SIM cards after installing two 4G/5G modules inside the router.
12). 5G mobile communication standard
13). Supports dual-mode dual-SIM 5G mobile communication functionality.
