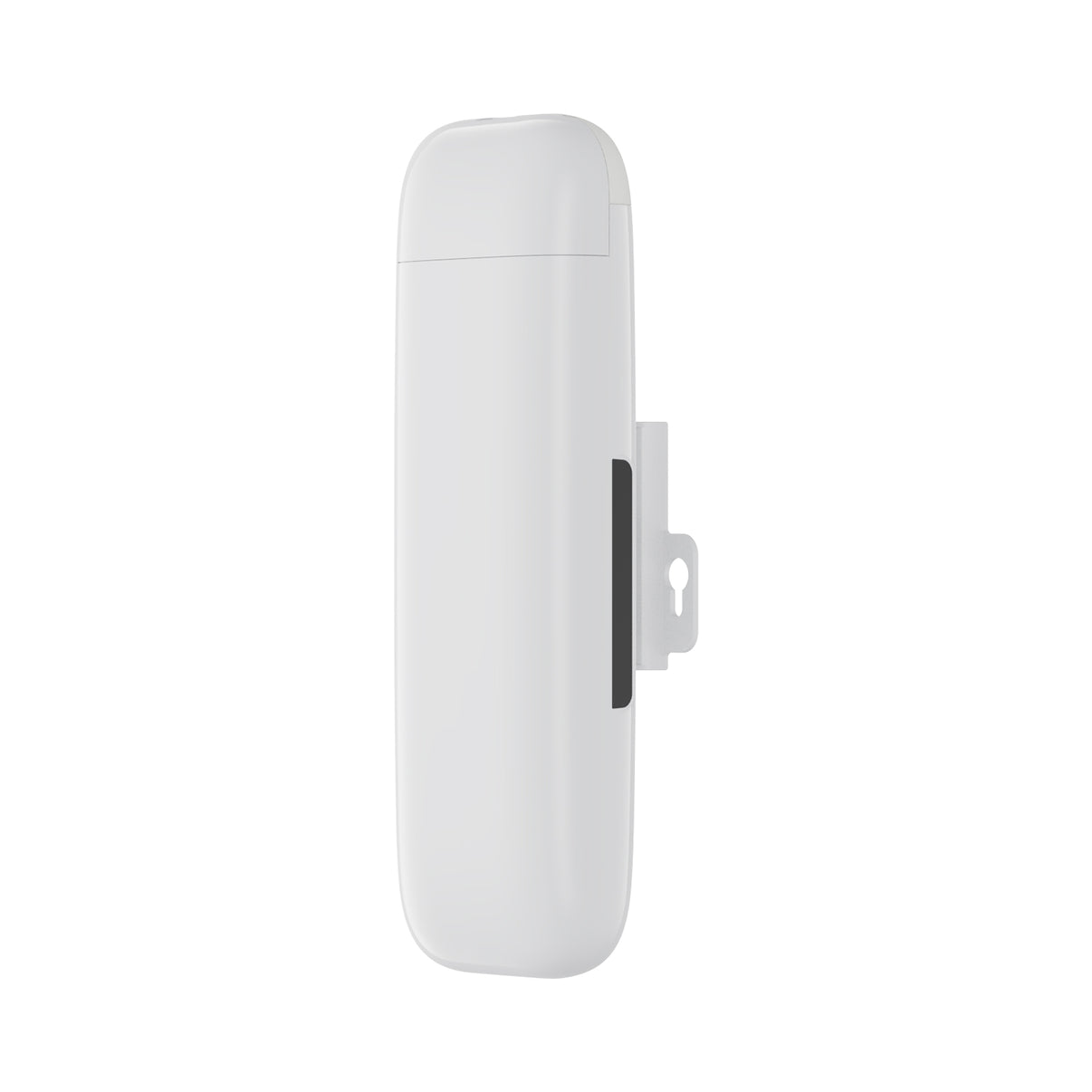

ZBT 5G Outdoor CPE | 2.5Gbps LAN | SA/NSA | PoE or DC 12V | Global Bands - ODU5201

5G SA/NSA with Global Band Coverage:

Supports 5G NR NSA/SA, LTE FDD/TDD, and WCDMA across comprehensive global frequency bands — one device for worldwide deployments.

3.4Gbps 5G Downlink Speed:

NSA peak downlink up to 3.4Gbps, fully leveraged by the 2.5Gbps PHY LAN port for next-generation throughput.

Integrated 8dBi High-Gain Antenna:

Built-in omnidirectional antenna maximizes outdoor signal capture without external antenna installation.

Flexible PoE or DC 12V Power:

Supports IEEE 802.3af/at PoE (max 55V) or DC 12V input for versatile outdoor mounting with minimal cabling.

Plug-and-Play Auto-Dial:

Automatically connects on power-on with no web UI required — ideal for rapid outdoor deployments and unattended installations.
Category Specifications
5G Module Built-in, supports SA & NSA 5G networks with global frequency band coverage
Antenna Built-in integrated high-gain omnidirectional antenna (8dBi)
Interface
  • 1 × 2.5Gbps LAN Port (Auto MDI/MDIX, IEEE 802.3/802.3u/802.3ab/802.3bz)
  • 1 × NANO SIM Slot (SIM/USIM)
  • 1 × TYPE-C Port
  • 1 × DC Power Port (5.0×2.1mm)
Power Supply
  • DC Input: 9–14V / Rated: 12V / 0.6A
  • PoE: IEEE 802.3af/at, max 55V
Environment
  • Operating Temperature: -20℃–60℃
  • Storage Temperature: -45℃–75℃
  • Working Humidity: 10%–90% RH non-condensing
  • Storage Humidity: 5%–90% RH non-condensing
Dimensions 240 × 78 × 60 mm | Color: White
SKU: ODU5201
WhatsApp Contact
View details

Built-in 5G Module: Supports SA/NSA 5G networks with global frequency band coverage

Integrated 8dBi High-Gain Antenna: Omnidirectional design for maximum signal capture outdoors

2.5Gbps PHY Network Port: High-speed LAN output to fully leverage 5G downlink speeds

Flexible Power Input: Standard PoE (IEEE 802.3af/at, max 55V) or DC 12V (9–14V)

Auto-Dial on Power-On: No web UI needed — connects automatically after boot

1× NANO SIM Slot: Supports SIM/USIM cards

1× TYPE-C Port for additional connectivity

LED Indicator: Green on boot, Blue when dial-up successful
