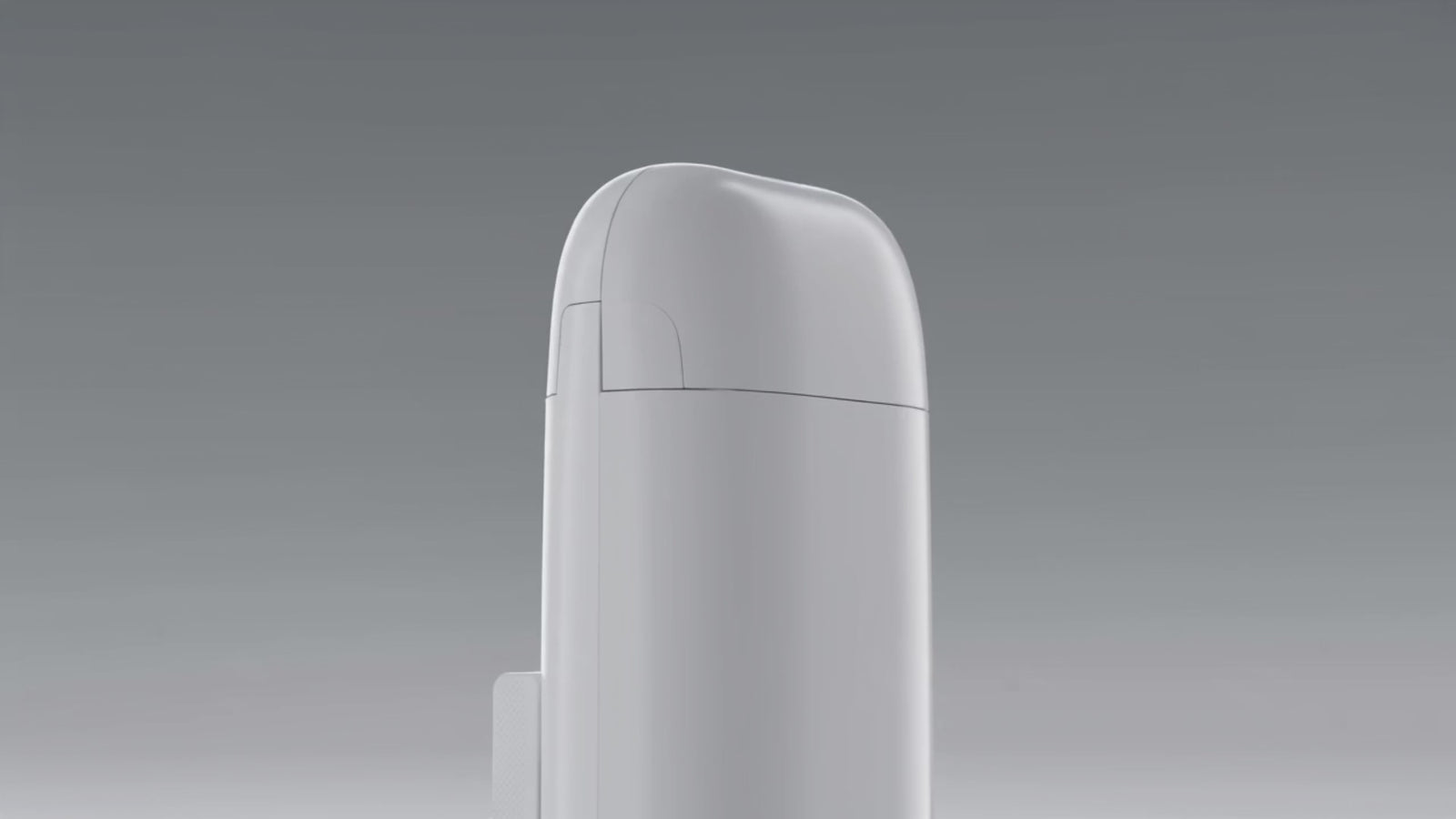

ODU5201 – Carrier-Grade 5G Outdoor CPE, 2.5G LAN Triple Power

Name: ODU5201 – Carrier-Grade 5G Outdoor CPE, 2.5G LAN Triple Power
Brand: ZBT
SKU: ODU5201
Price: 198.00 USD
Availability: InStock

5G SA/NSA with Global Band Coverage: Supports 5G NR NSA/SA, LTE FDD/TDD, and WCDMA across comprehensive global frequency bands — one device for worldwide deployments.

3.4Gbps 5G Downlink Speed: NSA peak downlink up to 3.4Gbps, fully leveraged by the 2.5Gbps PHY LAN port for next-generation throughput.

Integrated 8dBi High-Gain Antenna: Built-in omnidirectional antenna maximizes outdoor signal capture without external antenna installation.

Flexible PoE or DC 12V Power: Supports IEEE 802.3af/at PoE (max 55V) or DC 12V input for versatile outdoor mounting with minimal cabling.

Category	Specifications
CPU	RM520NGLAA-M20-SGASA / Support SA/NSA 5G network
Interface	1×2500Mbps LAN Port
Port	1×DC 5.5×2.1MM Port, 1×TYPE-C Port / Support standard POE supply, Support DC12V, MAX voltage reach 55V
Button	1× Reset Button
Module Slot	1×M.2 Slots, Supports USB 3.0 BUS

SKU: ODU5201

WhatsApp Contact

View details

Software Features

Category	Specifications
5G	NSA: n1/n2/n3/n5/n7/n8/n12/n13/n14/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n71/n75/n76/n77/n78/n79 / SA: n1/n2/n3/n5/n7/n8/n12/n13/n14/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n71/n75/n76/n77/n78/n79 / LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71 / LTE-TDD: B34/B38/B39/B40/B41/B42/B43/B48 / Global Version
SIM Card Slot	1×NANO SIM Card Slot, Support SIM/USIM
Antenna	Built-in 8dBi antenna
