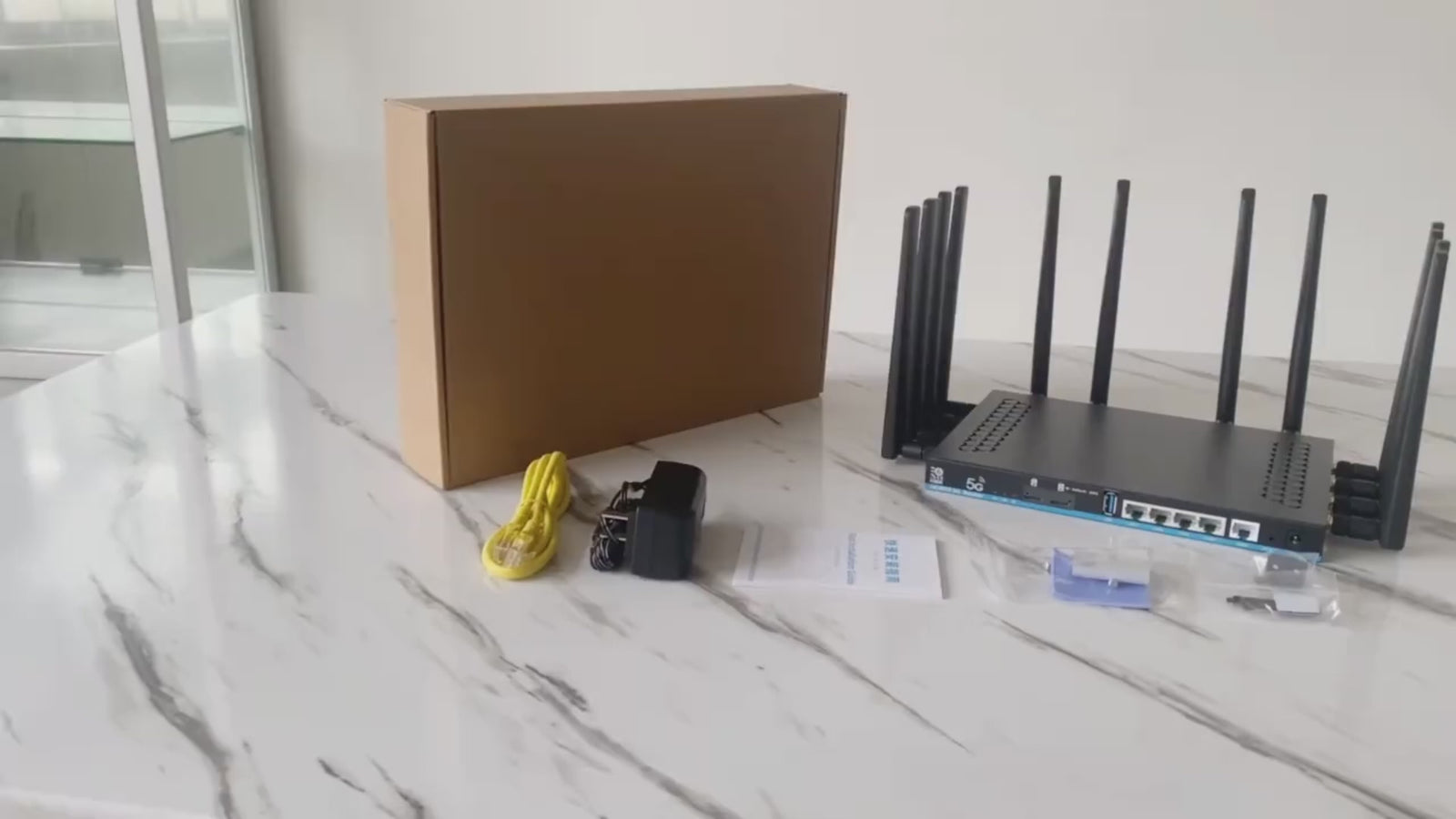

AX3000 Dual Band Gigabit WiFi 6 5G CPE Z8102AX-A-M2-T

Name: AX3000 Dual Band Gigabit WiFi 6 5G CPE Z8102AX-A-M2-T
Brand: Zbtlink Online Store
Price: 999.00 USD
Availability: InStock

Dual SIM + Dual M.2 Module: Two independent 5G/4G modules with dual SIM for load balancing or failover redundancy

5G + WiFi 6 AX3000: 600Mbps @ 2.4GHz + 2400Mbps @ 5.8GHz, supports up to 128 concurrent clients

13× Detachable High-Gain Antennas: Maximum signal coverage for both 5G cellular and WiFi bands

Rich Interfaces: 1× GbE WAN + 4× GbE LAN + USB 3.0 for versatile enterprise deployment

Enterprise Software: VPN, cloud management, WAN failover, parental control, SSID hidden built-in

Category	Specifications
CPU	ARM Cortex-A53 Dual-Core, up to 1.3GHz
Interface	1 × 10/100/1000 Mbps WAN Port 4 × 10/100/1000 Mbps LAN Ports 2 × M.2 Slot 2 × Nano SIM Card Slot 1 × USB 3.0 Port
Button	Reset Button
External Power Supply	Input: 100–240V~ 50/60Hz 0.6A Output: 12VDC 2.5A
Environment	Operating Temperature: 0°C~40°C (32°F~104°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
Antenna	13 × Detachable High-Gain Antennas

WhatsApp Contact

View details

Key Advantages

Software Features

AX3000 Dual SIM 5G CPE WiFi 6 - Enterprise Grade

Dual connectivity via 5G/4G or 1000Mbps WAN port. Share internet through WiFi 6 and wired LAN simultaneously.

WiFi 6 Performance
2.4 GHz (600Mbps) and 5.8 GHz (2400Mbps) dual-band. Supports 128 concurrent clients with 13 high-gain detachable antennas for extended coverage.

Security & Management
WPA/WPA2 encryption, SSID hiding, blacklisting, and parental controls. Cloud management, VPN support, and WAN failover for uninterrupted connectivity.

Category	Specifications
Wireless Standards	IEEE 802.11a/n/ac/ax (5 GHz) IEEE 802.11b/g/n/ac/ax (2.4 GHz)
Frequency	2.4 GHz & 5.8 GHz (Dual-Band)
Signal Rate	600 Mbps @ 2.4 GHz 2400 Mbps @ 5.8 GHz
Max. Associated Clients	128
WAN Failover	Supported
Wireless Security	WPA / WPA2 / WPA-PSK
Software Features	Channel & Power Adjustment Parental Control SSID Hidden Blacklist Cloud Management NTP / DHCP VPN Support
