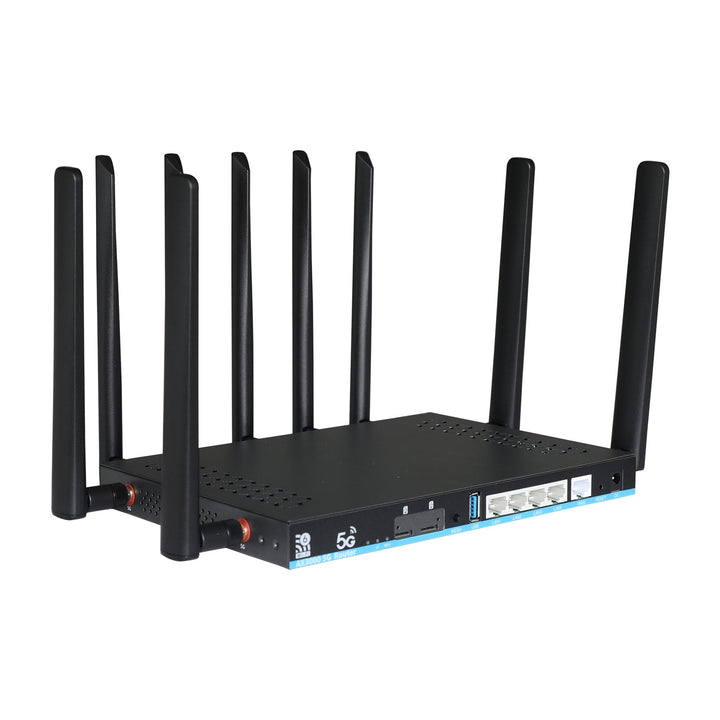

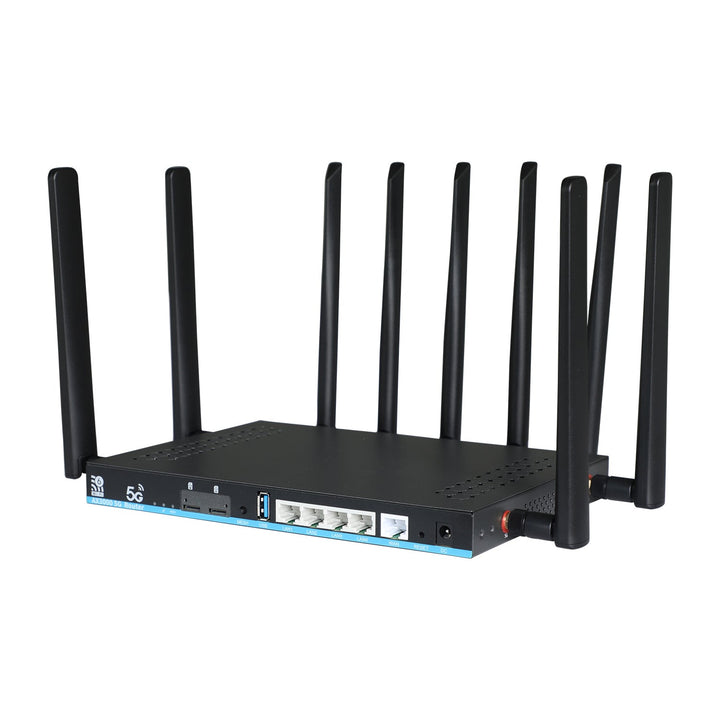

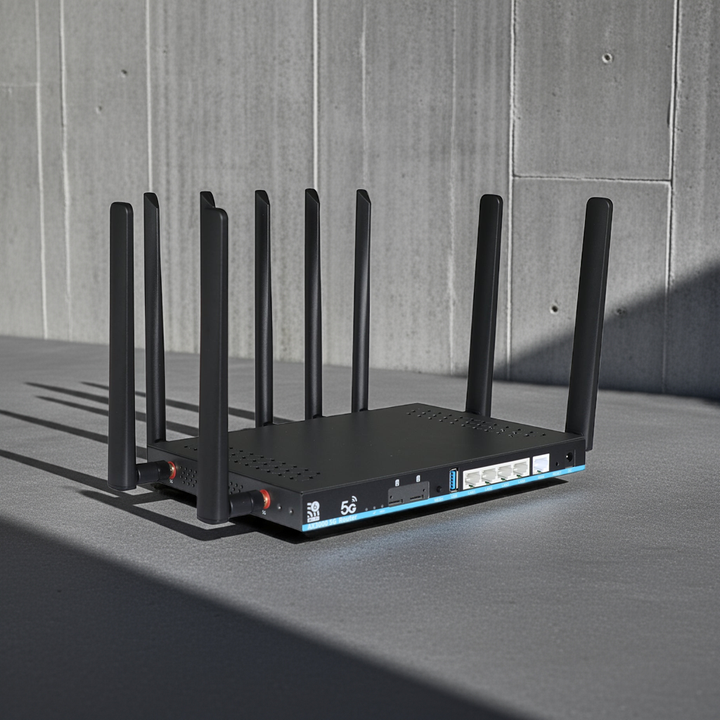

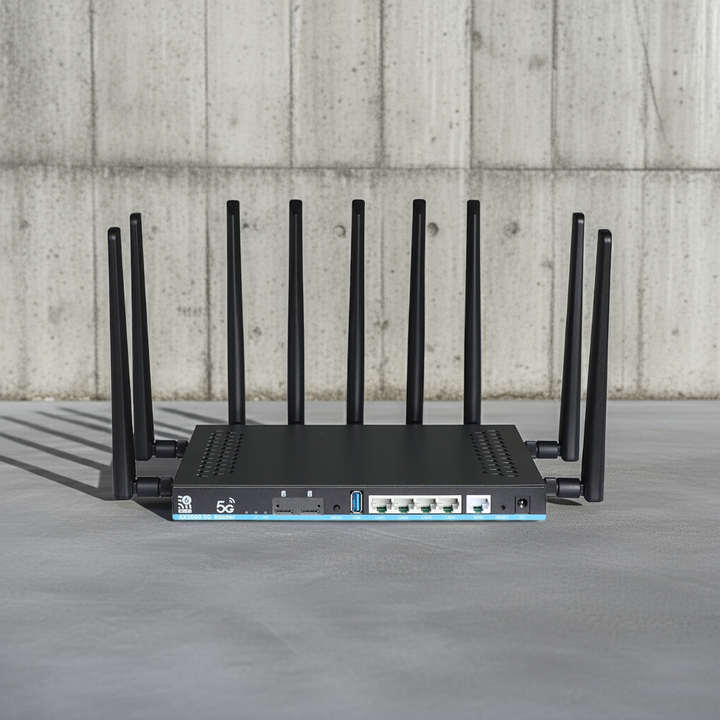

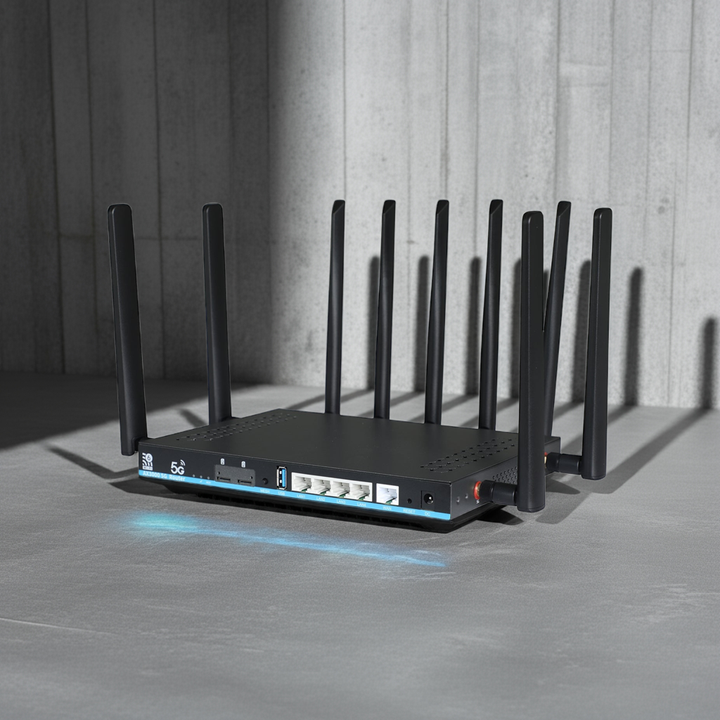

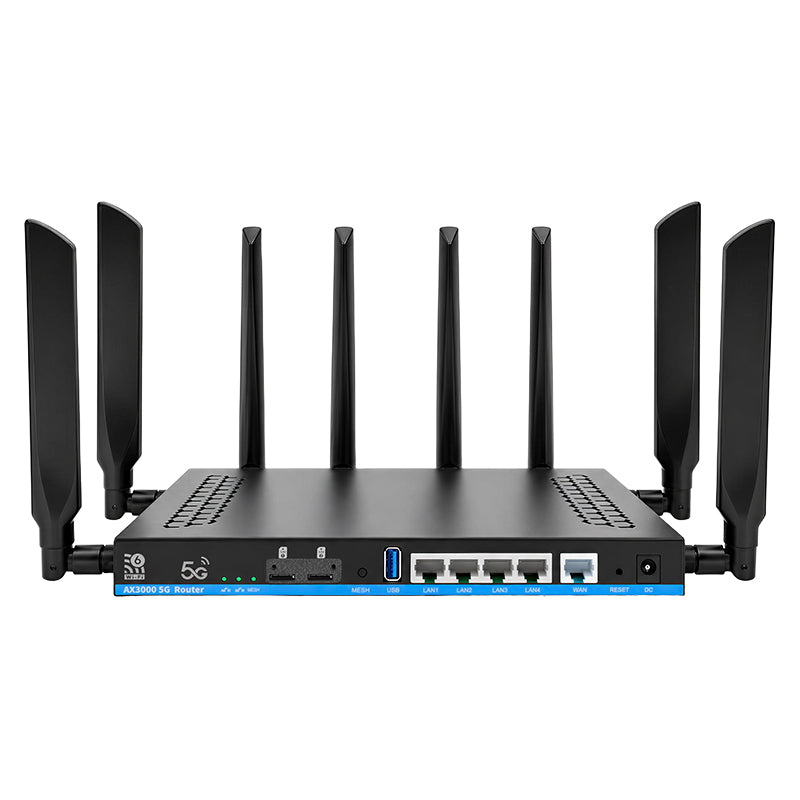

Z8102AX-M2-A-T — WiFi 6 AX3000 5G Router, 8 Detachable SMA Antennas & eSIM

Name: Z8102AX-M2-A-T — WiFi 6 AX3000 5G Router, 8 Detachable SMA Antennas & eSIM
Brand: Zbtlink Online Store
Price: 999.00 USD
Availability: InStock

WiFi 6 AX3000 Dual-Band Performance — 2.4GHz up to 573Mbps + 5.8GHz up to 2402Mbps, total 2975Mbps throughput for lag-free connectivity.

Powerful MT7981B Dual-Core Platform — ARM Cortex-A53 1.3GHz CPU with MT7976CN WiFi chipset for stable, high-performance routing.

Flexible 5G Expansion via Dual M.2 Slots — Two M.2 slots with USB 3.0 BUS support plus dual Nano SIM + dual eSIM(6×8mm) for multi-carrier redundancy.

Enterprise-Grade Memory & Storage — DDR4 1GB RAM, 128MB SPI NAND Flash, with optional eMMC expansion (8GB or 256GB) for demanding deployments.

Feature	Description
High-Performance CPU	MT7981B ARM Cortex-A53 Dual Core @ 1.3GHz, 1GB DDR4, 128MB Flash
Wi-Fi 6 AX3000 Dual-Band	2.4GHz 573Mbps + 5.8GHz 2402Mbps, total 2975Mbps, IEEE 802.11ax
Dual 5G Module Slots	2× M.2 slots with USB 3.0 BUS, supports X62 dual 5G modules
Quad-SIM Connectivity	2× Nano SIM + 2× eSIM (6×8mm) for multi-carrier failover

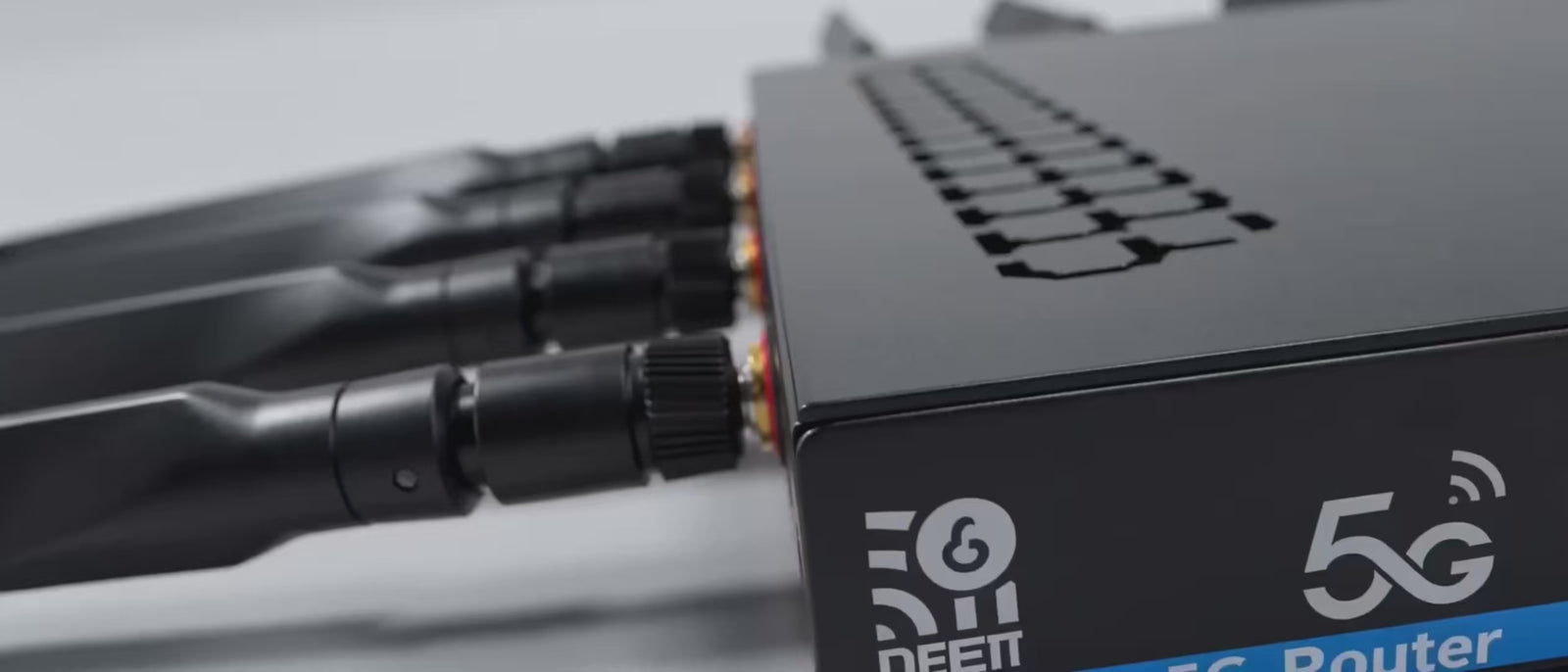

8× Detachable SMA Antennas	High-gain detachable SMA antennas for flexible 5G and Wi-Fi coverage

View details

Software Features

Feature	Description
Multi-Protocol Compatibility	Supports IEEE 802.11n/g/b/a/ac/ax, backward compatible with legacy devices
Expandable Flash Storage	128MB SPI NAND Flash, optional eMMC 8GB or 256GB expansion
Gigabit Ethernet Ports	1× 1000Mbps WAN + 4× 1000Mbps LAN for high-speed wired connectivity
Flexible Power Supply	DC 5.5×2.1MM standard interface for stable industrial deployment
One-Touch Mesh & Reset	Dedicated Mesh button for quick network expansion, Reset for easy management
