Exploring External Wi-Fi Antennas
Reliable Wi-Fi connectivity is crucial in settings ranging from homes and offices to expansive public venues. However, ensuring consistent coverage across larger or complex areas can be challenging. While integrated antennas in wireless access points (APs) provide standard coverage, they may fall short in demanding environments. External antennas offer an effective solution, allowing you to refine your network's radiofrequency (RF) environment for better coverage and improved performance.
This guide covers essential information about external Wi-Fi antennas and how they can boost your network's efficiency.
Benefits of External Antennas
External antennas provide several advantages that enhance Wi-Fi performance:
Expanded Coverage: External antennas extend Wi-Fi signals across greater distances. For example, in long corridors or spacious warehouses, a high-gain directional antenna can maintain connectivity even hundreds of feet away from the AP.
Superior Signal Reception: External antennas feature enhanced sensitivity, enabling them to detect weaker signals from devices transmitting back to the AP.
Enhanced Network Performance: Directional antennas reduce channel interference by focusing signals in a specific direction, improving data rates and minimizing noise in busy environments.
Flexible Placement: External antennas can be positioned and adjusted to optimize coverage in tricky layouts.
Improved Aesthetics: For visually sensitive spaces, external antennas can be discreetly hidden to preserve a clean look.
Suitable for Challenging Conditions: External antennas perform exceptionally well in environments like warehouses, high-ceilinged spaces, and crowded locations.
How Antenna Patterns Influence Performance
The radiation pattern of an antenna significantly affects its coverage capabilities.

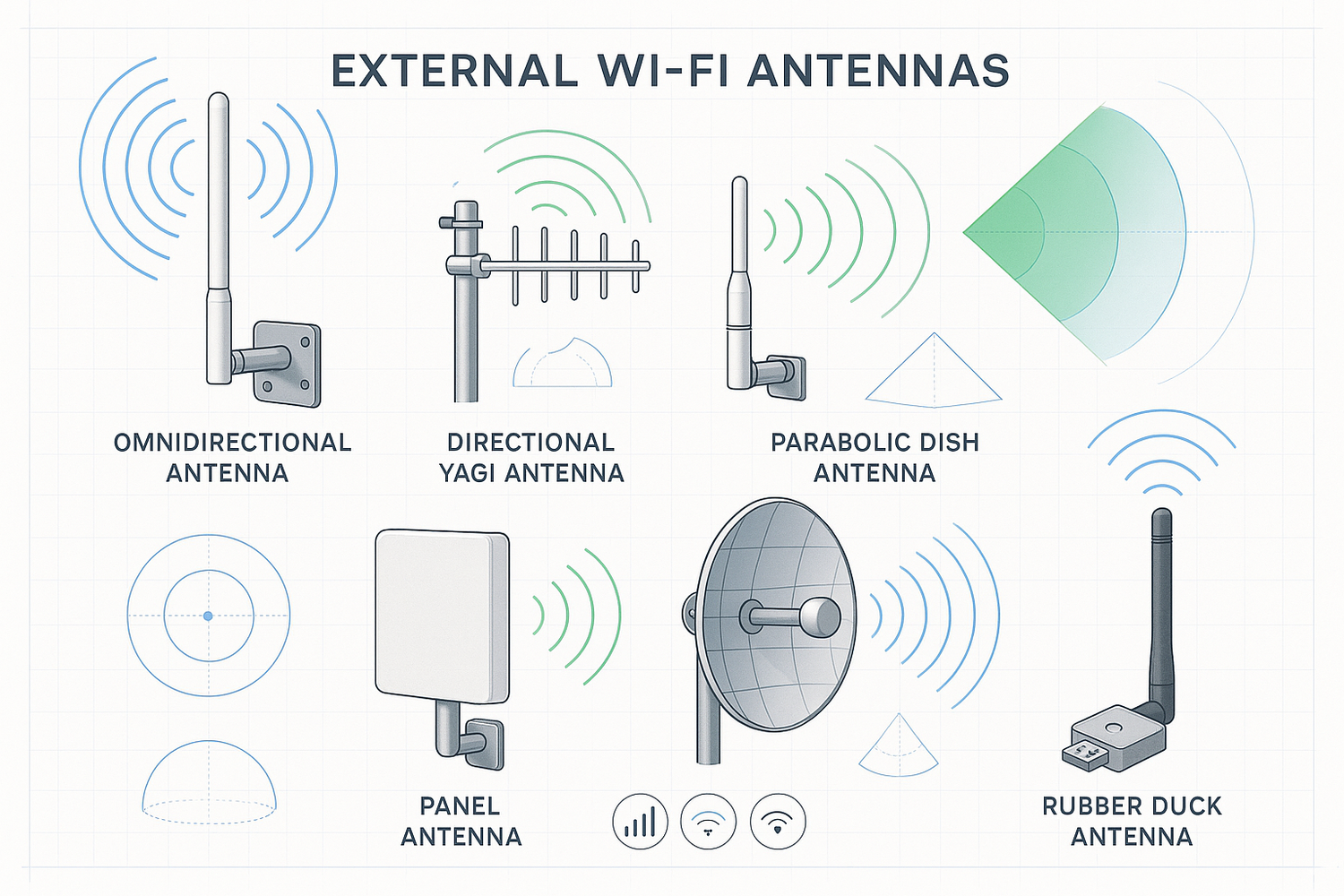

Omnidirectional antennas broadcast signals evenly across horizontal planes, delivering 360° coverage. However, they offer limited vertical signal control.
Directional antennas concentrate signals in specific directions, similar to a flashlight beam. This focused approach enhances coverage control while reducing beam width. High-gain directional antennas deliver even more precise, concentrated signals.
The strategic positioning of external antennas allows you to fine-tune coverage zones for improved performance. Instead of distributing Wi-Fi signals broadly, external antennas help you deliver connectivity exactly where it is required.
External Antennas in High-Traffic Areas
In environments with numerous connected devices, such as stadiums, conference centers, or busy retail spaces, external antennas excel. These high-density areas demand specialized solutions to manage simultaneous connections effectively.
Directional antennas enable focused coverage zones, minimizing interference from overlapping signals. For example, strategically placed antennas in stadiums can isolate coverage for specific seating sections, ensuring improved signal reliability.
By establishing distinct coverage cells with external antennas, your network can efficiently manage peak demand and heavy data traffic.
Selecting the Best External Antenna
Choosing the right external antenna involves assessing several factors:
Frequency Compatibility: Ensure the antenna supports the necessary frequency bands, including 2.4 GHz, 5 GHz, and 6 GHz.
Antenna Gain: Higher gain models project signals over longer distances but may narrow the beam width.
Beam Width: Narrower beams provide better signal focus for designated areas.
Radiation Pattern: Select from omnidirectional, sector, or directional antennas based on your coverage goals.
Front-to-Back Ratio: Opt for antennas with a high front-to-back ratio to reduce unwanted rear signal radiation.
Connectors: Choose appropriate cables and connectors to ensure seamless integration with your access points.
Since each environment presents unique challenges, consider using tools like Ekahau AI Pro to map coverage and collaborate with your Wi-Fi vendor for tailored recommendations.
Best Applications for External Antennas
External antennas provide customized solutions for various environments:
Warehouses: Directional antennas can focus signals down aisles. Test signal strength both with and without inventory to account for potential interference.
Stadiums: A mix of directional and omnidirectional antennas can efficiently cover seating areas and walkways.
Auditoriums: High-gain antennas placed at ceiling points ensure strong connectivity throughout seating zones.
Aesthetic Venues: Conceal antennas or match them to surroundings to minimize visual impact while maintaining performance.
Outdoor Areas: Weatherproof external antennas effectively extend Wi-Fi connectivity in open spaces.
