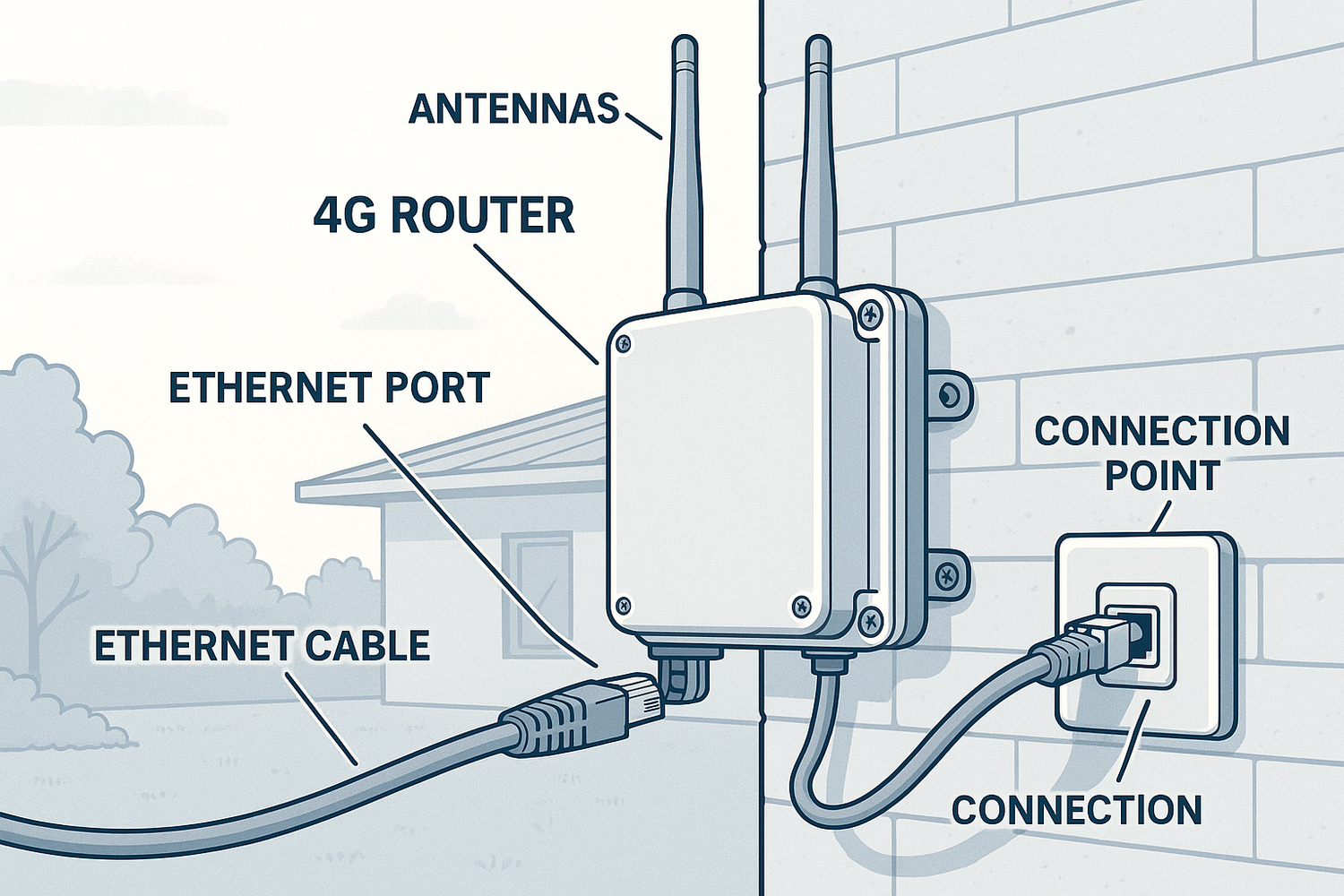

Outdoor 4G routers are versatile devices that provide internet access through both Wi-Fi and Ethernet connections. By leveraging Ethernet, you can integrate the outdoor router into your existing indoor network system seamlessly. This guide will walk you through how to output and input Ethernet signals using your ZBT outdoor router.
Output Ethernet from the Outdoor Router
The ZBT outdoor router supports Power over Ethernet (PoE) standards 802.3af/at, allowing it to receive both power and data through a single cable. Here’s how to set it up:
1. Using the Included PoE Injector:
- The PoE injector supplied with the router delivers both DC power and Ethernet connectivity.
- Connect the outdoor router to the PoE injector using the provided cable.
- The LAN port on the PoE injector outputs the Ethernet signal from the outdoor router.
2. Using a 48V PoE Switch:
- Alternatively, you can use a 48V PoE switch instead of the default injector.
- Ensure the PoE switch is un-isolated to successfully transmit Ethernet signals from the outdoor router.
Input Ethernet Signal to the Outdoor Router
The ZBT outdoor router can also receive Ethernet signals from a primary router, enabling it to function as part of a larger network. Here’s how to configure this setup:
1. Connecting to the Primary Router:
- Link the primary router to the LAN port on the PoE injector using an Ethernet cable.
- This setup mirrors the output configuration but reverses the signal flow.
2. Assigning IP Addresses:
- Once connected, devices on the network will receive IP addresses from the primary router.
- To access the outdoor router’s settings, assign a static IP address to the host device.
Benefits of Ethernet Connectivity
- Reliable Connection:
Ethernet provides a stable and high-speed connection, ideal for critical applications.
- Flexible Integration:
Easily connect the outdoor router to indoor networks for extended coverage.
- Reduced Interference:
Wired connections minimize signal interference compared to Wi-Fi.
Conclusion
The ZBT outdoor router offers flexible Ethernet connectivity options, making it a powerful tool for expanding your network. Whether you’re outputting Ethernet signals to devices or integrating the router into a larger network, these steps ensure a seamless setup.
For more tips and product details, visit our website or contact our support team.
