BE19000 & Multi-SIM Router Deployment Guide: Visualized Case Studies for Retail, Construction, and Dense Offices

BE19000 & Multi-SIM Router Deployment Guide: Visualized Case Studies for Retail, Construction, and Dense Offices

Visual Planning Ensures Maximum Network Performance

  • Proper router placement, band allocation, and SIM prioritization maximizes coverage and reliability.

  • Automatic failover and load balancing maintain business continuity during outages.

  • Scenario-specific strategies ensure future scalability for growing networks.

Outcome:

Businesses maintain continuous POS operations, cloud access, video conferencing, and IoT device connectivity without downtime.

1. Retail Store Deployment Visualization

Challenges: POS systems, IoT devices, customer Wi-Fi, digital signage

Deployment Strategy:

  • Router Placement: Central location in the store

  • Band Allocation:

    • 2.4GHz → IoT devices (sensors, cameras)

    • 5GHz → POS and business-critical devices

    • 6GHz → Customer Wi-Fi and streaming

  • Cloud Management: Monitor traffic and device health remotely

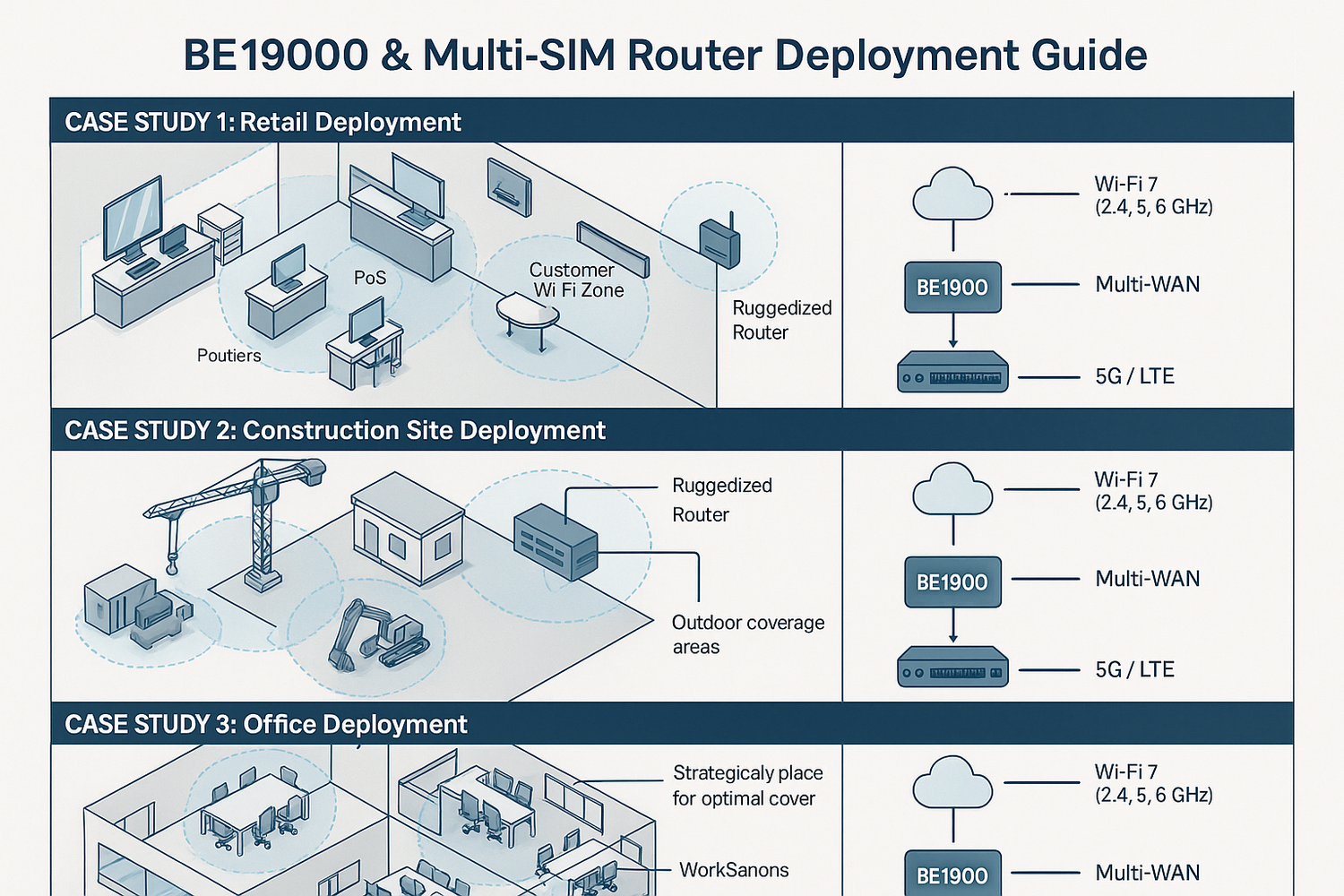

Visual Concept:

  • Floor map showing BE19000 router placement

  • Color-coded lines indicating traffic per band

  • Icons for POS, IoT devices, and customer Wi-Fi endpoints

Scenario Outcome:

50+ devices operate simultaneously without lag. POS, IoT, and customer Wi-Fi traffic coexist seamlessly.

2. Construction Site Deployment Visualization

Challenges: No wired internet, temporary setup, mobile workforce

Deployment Strategy:

  • Multi-SIM Router Placement: Site office or central trailer

  • SIM Configuration: LTE/5G SIMs with failover priority

  • Load Balancing: Split traffic across SIMs for optimal bandwidth

  • Rapid Deployment: Plug-and-play setup

Visual Concept:

  • Diagram showing dual LTE + 5G SIM routers

  • Arrows indicate traffic flow and failover paths

  • Icons for project management devices, VoIP phones, and site laptops

Scenario Outcome:

Cloud project management, VoIP, and video streaming remain uninterrupted even if one SIM fails.

3. Dense Office / Campus Deployment Visualization

Challenges: Multi-floor, hundreds of devices, latency-sensitive apps

Deployment Strategy:

  • Tri-Band BE19000 Placement: Center of each floor for uniform coverage

  • MLO & Band Steering: Distribute devices across 2.4/5/6 GHz

  • VLAN & QoS: Prioritize critical applications

  • Scalability: Add more APs for future floors or departments

Visual Concept:

  • Multi-floor diagram showing AP placement and band coverage

  • Load distribution chart per floor for video conferencing, cloud apps, and file transfers

  • Red lines indicate failover paths to backup WAN or SIM links

Scenario Outcome:

60+ devices across 3 floors maintain <3ms latency, with smooth cloud uploads, video calls, and VoIP calls simultaneously.

4. Traffic Distribution & Failover Demonstration

Retail / Construction / Office Comparison:

Scenario Primary Link Backup Failover Type Traffic Allocation
Retail Fiber LTE/5G SIM Automatic POS/IoT/Customer Wi-Fi separated by band
Construction LTE SIM1 LTE SIM2 + 5G Automatic Split project apps, VoIP, video streaming
Dense Office Fiber + DSL LTE/5G Automatic MLO distributes video calls, cloud apps, and file transfers

Visualization Concept:

  • Color-coded timeline showing primary link outage and automatic failover activation

  • Flow diagrams display traffic distribution across WAN/SIM

  • Heatmaps per floor show tri-band coverage and device load

5. Deployment Checklist & Best Practices

  • Retail: Central router placement, band separation, MLO enabled

  • Construction: Multi-SIM configuration, failover priority, plug-and-play setup

  • Dense Office: Floor-center AP placement, MLO, QoS, VLAN segmentation

  • All Scenarios: Centralized ZBTWIFI cloud management for monitoring, security, and optimization

6. Why ZBTWIFI Solutions Are Ideal for Scenario-Based Deployments

  • Versatile deployment: Retail, construction, offices, temporary sites

  • Tri-band Wi-Fi 7: High throughput, low latency, multi-device support

  • Multi-SIM routers: Cellular backup, failover, and load balancing

  • Centralized cloud management: Real-time monitoring and traffic optimization

  • Scalable & future-proof: Supports growing networks and new devices

Conclusion

ZBTWIFI BE19000 and multi-SIM routers provide scenario-specific deployment solutions:

  • Retail stores: Seamless POS, IoT, and customer Wi-Fi

  • Construction sites: Reliable multi-SIM connectivity with failover

  • Dense offices / campuses: Tri-band Wi-Fi 7 with MLO and QoS ensures low latency and high throughput

💬 Discussion Prompt: Do you want a visualized deployment plan for your business scenario? Share your environment and requirements in the comments to see how ZBTWIFI solutions can be tailored for your site.

, , , , , , , ,
