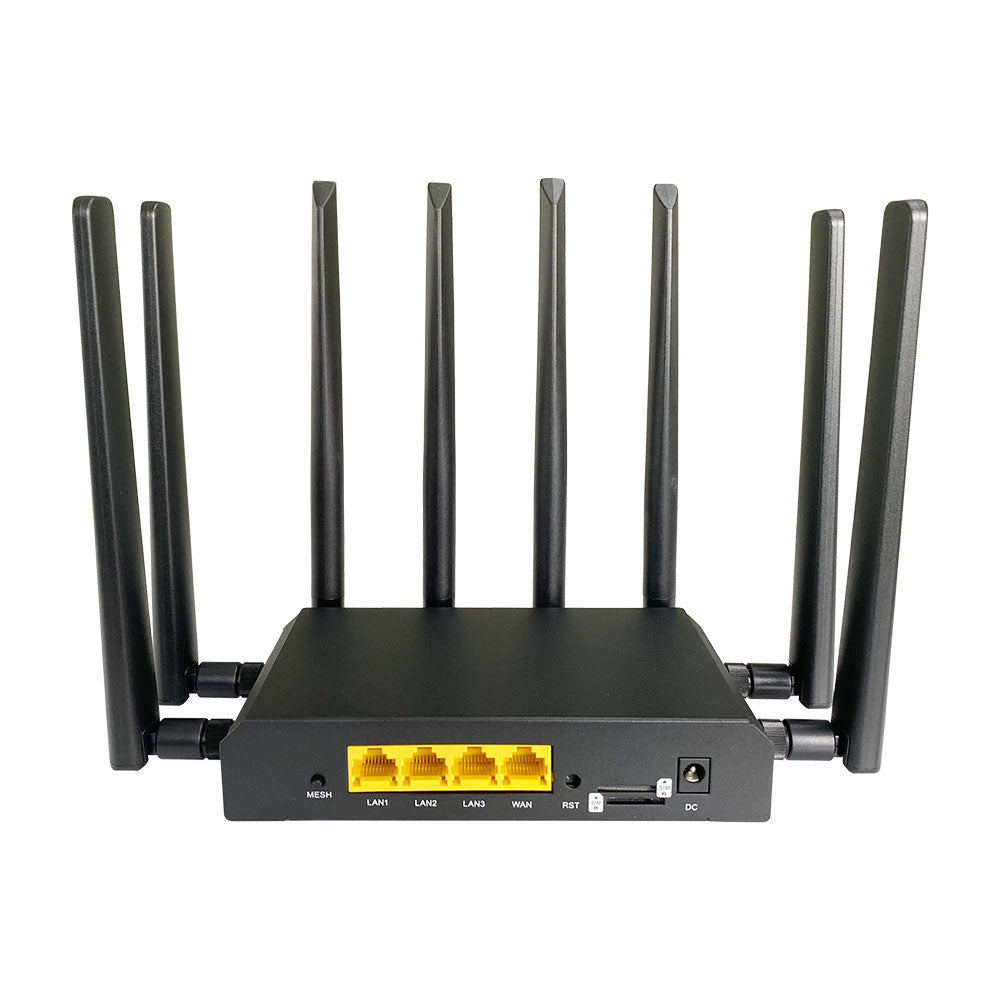

MTK7621880MHZ Dual Band 5G CPE-Z2105AX-M2-T

WiFi 6 Dual-Band, AX1800 — 600Mbps (2.4G) + 1200Mbps (5.8G), supports 128 clients simultaneously.

5G/4G via M.2 + SIM — Flexible cellular module expansion with automatic WAN failover.

MT7621A Dual-Core 880MHz — Efficient MIPS CPU for stable multi-user routing performance.

Full Gigabit Ports — 1×1G WAN + 3×1G LAN, no wired bottlenecks.
Category Specifications
CPU Using MT7621A scheme, MIPS dual-core CPU, main frequency up to 880MHz
Interface
  • 1 × 10/100/1000 Mbps WAN Port
  • 3 × 10/100/1000 Mbps LAN Ports
  • 1 × M.2 slot
  • 1 × SIM Card Slot
Button Reset Button
External Power Supply
  • Power Adapter: Input 100-240V~ 50/60 Hz 0.6A
  • Output: 12VDC 2A
Environment
  • Operating Temperature: 0°C~40°C (32°F ~104°F)
  • Operating Humidity: 10%~90% non-condensing
  • Storage Humidity: 5%~90% non-condensing
Antenna 4pcs non-detachable WiFi Antennas, 4pcs detachable 5G antennas
WhatsApp Contact
View details

Lightning-Fast Performance
Powered by MTK7621 chipset, this AX1800 dual-band 5G CPE router delivers exceptional speed. Stream 4K video, play lag-free games, and browse at full throttle without compromise.

Complete Connectivity
5G/4G + WiFi 6 support keeps you connected anywhere—home, office, or on the move. 1000Mbps WAN port paired with WiFi 6 wireless and 1000Mbps wired LAN ensure stable, reliable speeds across all devices.

Enterprise-Grade Security
WPA/WPA2 encryption and integrated VPN protect your data from threats. Parental controls, SSID hiding, and blacklist management give you full network authority and peace of mind.
