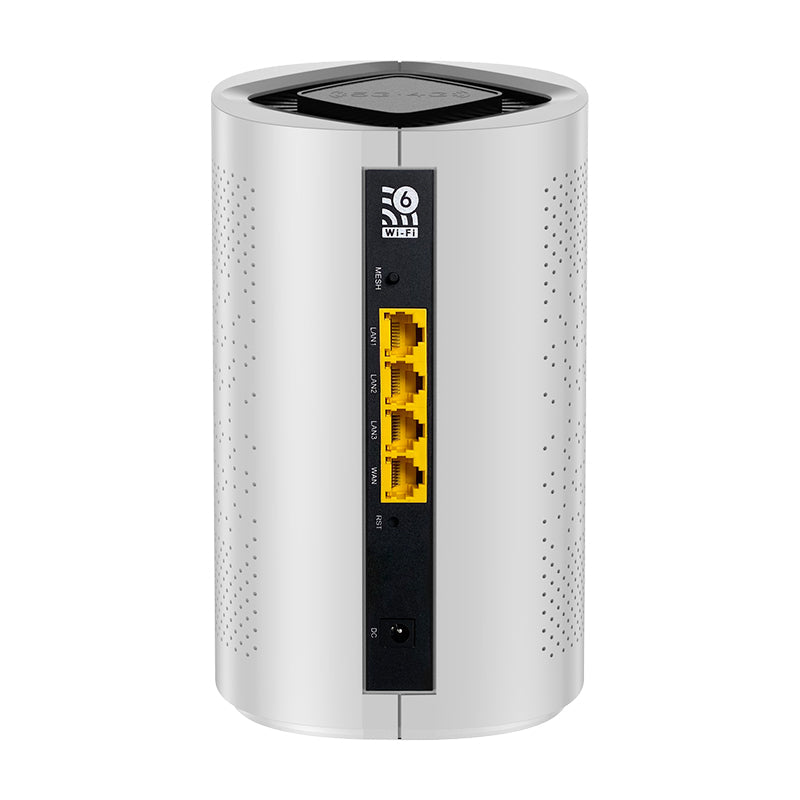

• Z8103AX-C_back view
  • 1WAN+3LAN 1000M adaptive network port support automatic flip (Auto MD!/MDIX)
  • Z8103AX-C_packaging
1 / 1

AX3000 Dual Band WiFi 6 Mesh Router - Z8103AX-C

Wi-Fi 6 AX3000 Dual-Band: 2.4GHz 600Mbps + 5.8GHz 2400Mbps for ultra-fast, low-latency connectivity across all Wi-Fi 6 devices.

Mesh Networking Support: Seamless whole-home coverage with easy mesh expansion, eliminating dead zones in large spaces.

MT7981 Dual-Core 1.3GHz CPU: Powerful ARM Cortex-A53 processor ensures smooth performance for streaming, gaming, and multi-device use.

Full Gigabit Ports: 1 × Gigabit WAN + 3 × Gigabit LAN for high-speed wired connections up to 1000Mbps.

Up to 128 Clients + WAN Failover: Handles 128 simultaneous connections with automatic failover to keep the network always online.
Category Specifications
CPU MT7981, ARM Cortex-A53 Dual-Core, up to 1.3GHz
Interface 1 × 10/100/1000 Mbps WAN Port / 3 × 10/100/1000 Mbps LAN Ports
Button Reset Button
External Power Supply Input: 100–240V~ 50/60Hz 0.6A / Output: 12VDC 1A
Environment
  • Operating Temperature: 0℃–40℃ (32℉–104℉)
  • Operating Humidity: 10%–90% non-condensing
  • Storage Humidity: 5%–90% non-condensing
Antenna 5 × Internal High-Gain Antennas
View details

Elevate Your Home Network Experience

Transform your home network with the Z8103AX-C AX3000 Dual Band WiFi 6 Mesh Router. Enjoy lightning-fast internet speeds, seamless connectivity, and advanced security features that keep your network safe from cyber threats.

Unleash Lightning-Fast Speeds

Experience blazing-fast internet speeds with the Z8103AX-C router. Powered by a dual-core ARM Cortex-A53 CPU with a main frequency of up to 1.3GHz, this router delivers exceptional performance for streaming, gaming, and browsing. Say goodbye to buffering and lag with signal rates of 600Mbps at 2.4GHz and 2400Mbps at 5.8GHz.

Robust Security and Management

Protect your network and manage your connections with ease using the Z8103AX-C's advanced software features. With support for WPA/WPA2 encryption, VPN capabilities, and parental controls, you can ensure that your data remains secure and your family stays safe online. Plus, take advantage of features such as channel adjustment, power adjustment, and cloud management to customize your network settings and optimize performance.
