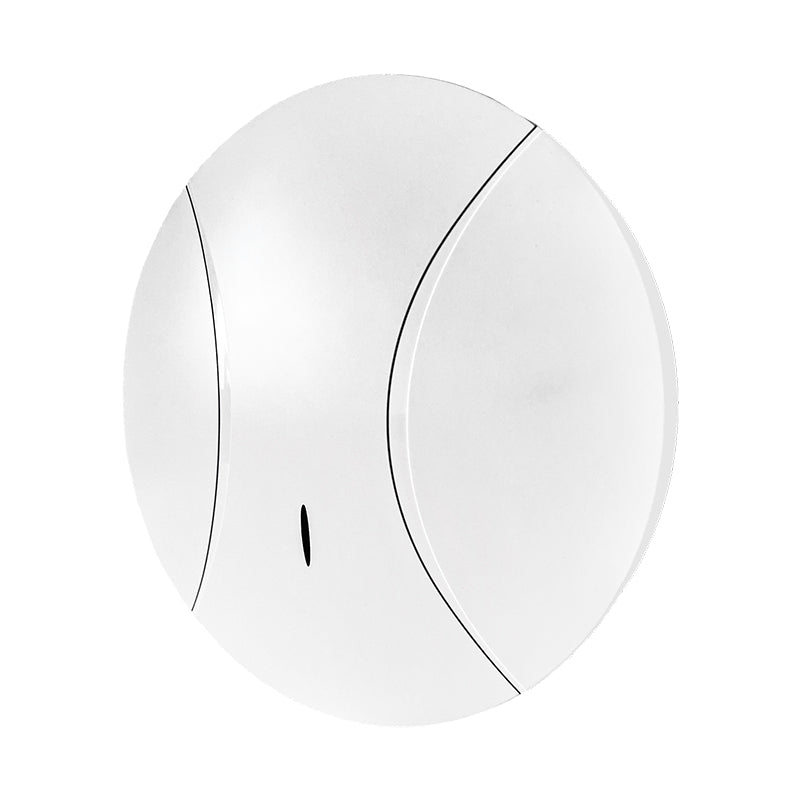

• AP8101_main view
  • AP8101_back view
  • AP8101_packing
  • Supports POE(lEEE 802.3af/at standard)
1 / 1

Gigabit Dual Band WiFi 6 Ceiling Mount Access-AP8101

WiFi 6 AX3000 Dual-Band — 600Mbps @ 2.4GHz + 2400Mbps @ 5.8GHz, supports up to 128 concurrent clients

2.5G WAN Port: 1000/2500Mbps uplink for high-throughput enterprise deployments

PoE-PD Powered: Powered directly via RJ45 WAN port, no separate power adapter needed for clean ceiling installation

9× Internal High-Gain Antennas: Built-in antennas for wide coverage without external antenna clutter

Enterprise Software: VPN, cloud management, channel/power adjustment, parental control, SSID hidden built-in
Category Specifications
CPU ARM Cortex-A53 Dual-Core, up to 1.3GHz
Interface
  • 1 × 1000/2500 Mbps WAN Port
  • 1 × 10/100/1000 Mbps LAN Port
Button Reset Button
External Power Supply RJ45 WAN Port supports PoE-PD power supply
Environment
  • Operating Temperature: 0°C~40°C (32°F~104°F)
  • Operating Humidity: 10%~90% non-condensing
  • Storage Humidity: 5%~90% non-condensing
Antenna 9 × Internal High-Gain Antennas
View details

AP8101 is a 5G/4G+WiFi6 access point

Which can access the Internet through 1000Mbps WAN port, and then share the Internet network through wireless WiFi 6 .
