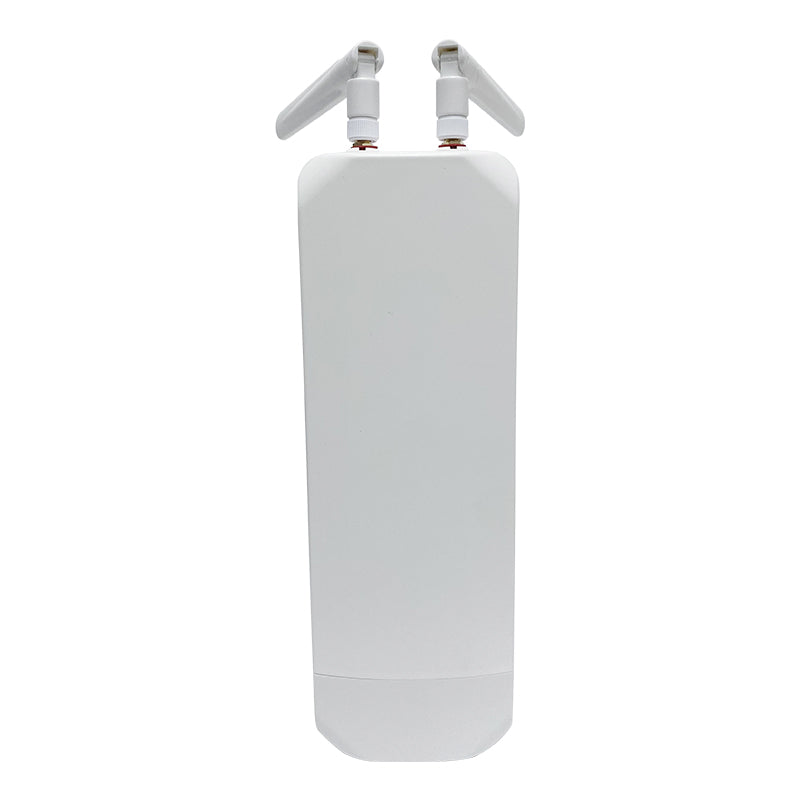

CPE2801-A MT7628NN

Name: CPE2801-A MT7628NN
Brand: ZBTWIFI
Availability: OutOfStock

MT7628NN Wireless Platform: Built on a MIPS 24KEc CPU running up to 580MHz with MT7976CN Wi-Fi chipset, delivering stable and efficient outdoor wireless performance.

4G LTE Connectivity: Single mini-PCIe module slot with NANO SIM and eSIM support enables flexible carrier selection and reliable 4G mobile broadband in outdoor environments.

Dual-Antenna Design: Equipped with two removable omnidirectional 5dBi 4G antennas and two internal Wi-Fi on-board antennas for reliable signal coverage in outdoor deployments.

Outdoor-Ready Build: Ruggedized enclosure with dedicated 100Mbps WAN and LAN ports, designed for stable long-range outdoor wireless coverage and easy field installation.

KEY SPECIFICATIONS
CPU	MT7628NN \| MIPS 24KEc \| Up to 580MHz Wi-Fi Chipset: MT7976CN
Protocol	IEEE 802.11n/g/b \| Max 300Mbps
FLASH / RAM	DDR2 128MB \| Nor Flash 16MB
Interface	1 × 100Mbps WAN Port 1 × 100Mbps LAN Port
SIM Card Slot	1 × NANO SIM 1 × eSIM (QFN-8 6mm×5mm) \| Support SIM/USIM
Antenna	2 × Removable Omnidirectional 5dBi 4G Antennas 2 × Internal Wi-Fi On-board Antennas

WhatsApp Contact

View details

Software Features

General Specifications
Model	CPE2801-A
Wi-Fi Standard	IEEE 802.11n/g/b \| Max 300Mbps
Module Slot	1 × mini-PCIe
SIM Card Slot	1 × NANO SIM 1 × eSIM (QFN-8 6mm×5mm) \| Support SIM/USIM
Storage	DDR2 128MB \| Nor Flash 16MB

Hardware Specs
CPU	MT7628NN \| MIPS 24KEc \| Up to 580MHz Wi-Fi Chipset: MT7976CN
FLASH / RAM	DDR2 128MB \| Nor Flash 16MB
Interface	1 × 100Mbps WAN Port 1 × 100Mbps LAN Port
Button	1 × Reset Button
Antenna	2 × Removable Omnidirectional 5dBi 4G Antennas 2 × Internal Wi-Fi On-board Antennas

Wireless & Network
Protocol	IEEE 802.11n/g/b
Wi-Fi Rate	MAX 300Mbps
4G Connectivity	1 × mini-PCIe Module Slot \| Single SIM Support
Antenna	2 × Removable 5dBi 4G + 2 × Wi-Fi On-board
