WE5931-T_main view

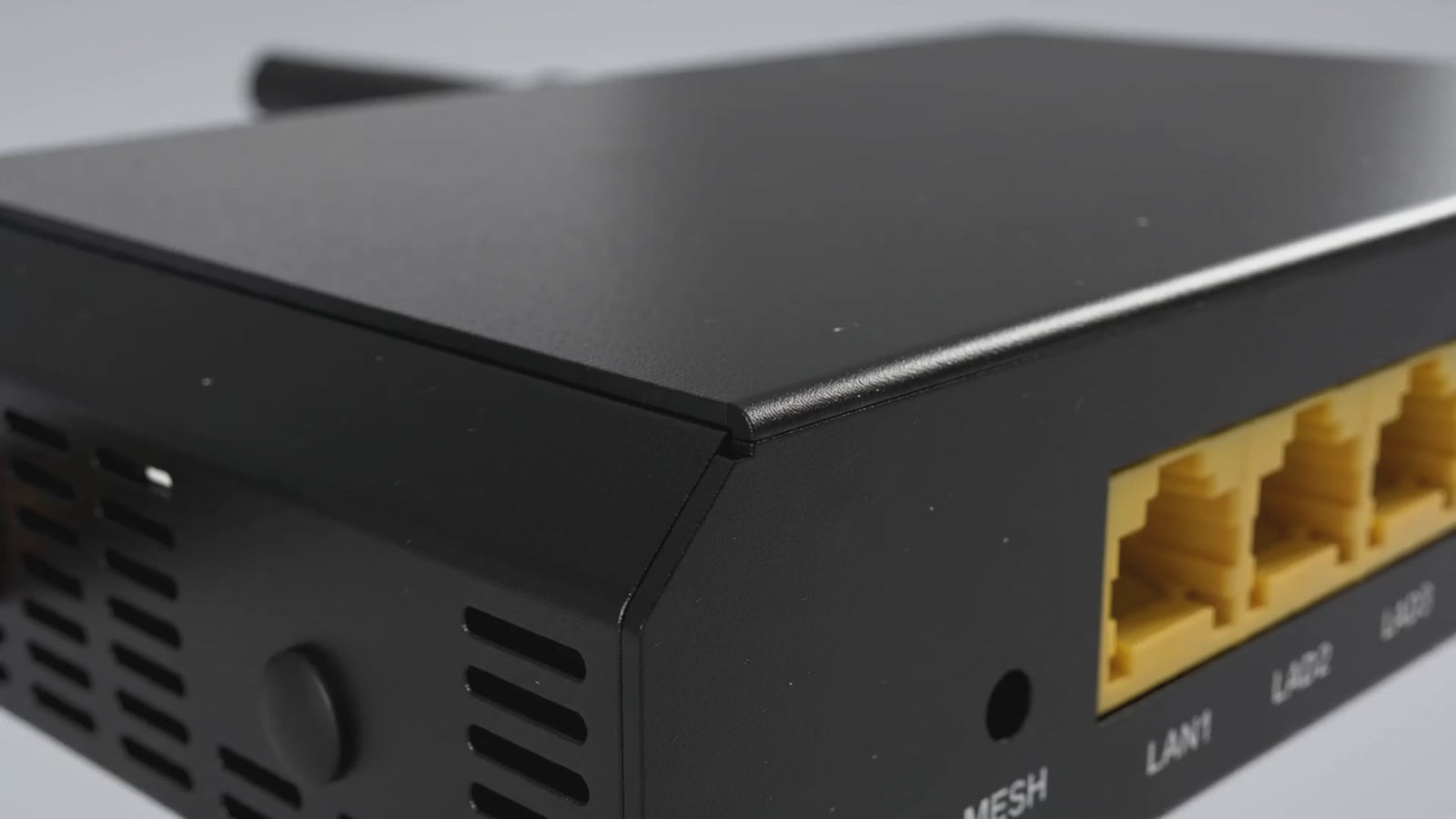

WE5931-T_side view
WE5931-T_back view

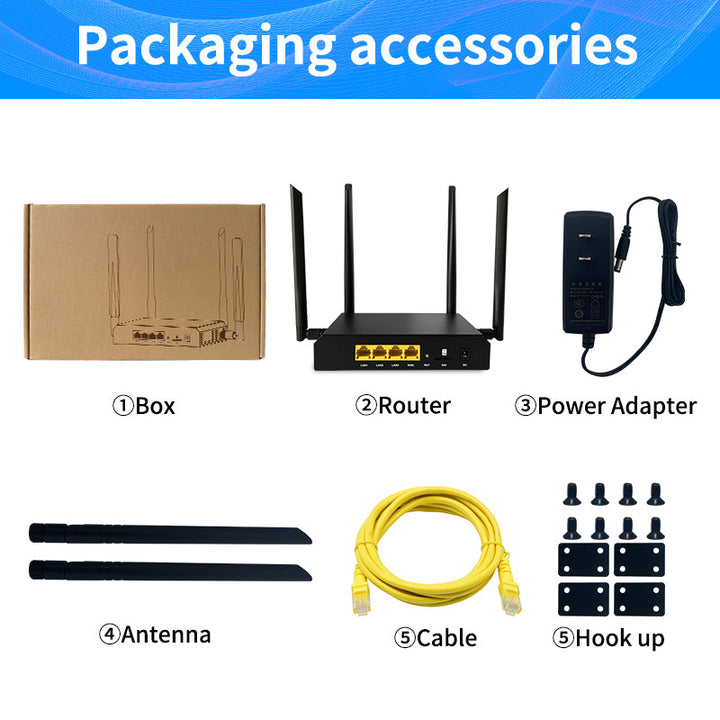

WE5931-T_Packaging accessories

Smart Home 4G Router

Model : WE5931-T
CPU:MT7628DAN ,580MHz Frequency
RAM: 64MB
FLASH:8MB
Software :Openwrt &ZBT OS

Description

The WE5931-T uses in the latest Mediatek MT7628DAN wireless solution, performs better and more function. Stable wireless performance, 2.4G 300Mbps. Also support 3G&4G (3G&4G PCIE mode is necessary).


HARDWARE FEATURES

CPU

MT7628DAN

Interface

1 * 10/100 Mbps WAN Port
3 *10/100 Mbps LAN Ports

1 * SIM Card Slot

Button

Reset Button

External Power Supply

Power Adapter: Input Power 100-240v~50/60 Hz 0.6A
Output parameter 12VDC 1A

Environment

Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Antenna

2*non-Detachable 4G Antennas, 2*non-detachable WiFi antennas

WIRELESS FEATURES

Wireless Standards

IEEE 802.11n.IEEE 802.11g.IEEE 802.11b.IEEE 802.3u

Frequency

2.4 GHz

Wireless Rate

MAX 300Mbps

Wi-Fi Max.Associated Clients

30

WAN Failover

Yes

Wireless Security

WPA/WPA2, WPA-PSK

SOFTWARE FEATURES

WAN Type

PPPoE.Dynamic IP. Static IP

Port Forwareding

Support

Static Router

Support

System Log

Support

Parent control

Support

SSID Hidden

Support

Black list

Support

Cloud management

Support

NTP

Support

DHCP

Support

VPN

Support
